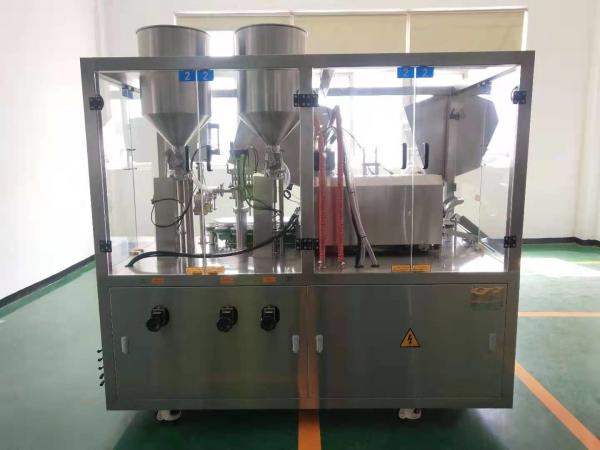

Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes
Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes
Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes
Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes
Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes
Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes
Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes
Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes
Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes
Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes
Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes
Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes
Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes
Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes
Specifications
Brand Name :
TRUSTAR/HIJ
Model Number :
TF-120
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 set/month
Delivery Time :
It depends. Usually it takes about 45 working days.
Packaging Details :
Seaworthy wooden cases
Name :
Cosmetic Cream Tube Filling and Sealing Machine
Mold :
TF-120
Case Body Material :
304 stainless steel
Weight :
1400KG
Power Supply :
220V/50Hz
Main Motor :
2.2KW
Filling Range :
3-250ml
Operation Speed :
80-120/min/max
Suitable Tube Length :
50-210mm
Suitable Tube Diameter :
13-50mm
Machine size :
2350×1300×2400mm
Advantage :
Easy to operate
Power Consumption :
1.5kw
Automatic Grade :
Automatic
Control System :
PLC
Hs Code :
8422309090
Operation System :
Touch Screen
Air Pressure :
0.6-0.8Mpa
Operation :
Touch Screen
Packing Speed :
40-50pcs/min
Filling Material :
Lotion, Cream, Toothpaste, Sun Cream
Machine Power :
Three Phase 380V 30kw
Machine Function :
Tube filling and sealing
Description

Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes

Description
TF-120 Automatic plastic/lami tube filling and sealing machine is a new filling equipment which is independently developed and designed and manufactured by our company, based on foreign advanced filling and sealing machine type and combined with the domestic actual circumstances of plastic/lami tube.The machine type is wholly closed in stainless steel, suitable to filling and sealing of various specifications plastic/lami tube, max speed reaches120 tubes per minute, actual normal speed reaches 80 to 120 tubes per minute, variable speed via frequency converter. Filling precision is equal to or less than ±1%. The sealing manner for plastic/lami tubes is hot air sealing.

Technical Parameter
  • Machine case body
Case Body Material 304 stainless steel

Opening Mode of Safety Guard

 Handle Door

Safety Guard Material

 Organic Glass

Frame Below Platform

 Stainless Steel

Case Body Shape

 Square-shape
  • Power, Main Motor etc.
Power Supply 50Hz/380V 3P
Main Motor 2.2KW
Hot Air Generator 3KW*2
Jacket barrel heating power 2 KW*2 Optional
Jacket barrel blending power 0.18 KW*2 Optional
  • Production Capacity
Operation Speed 80-120/min/max
Filling Range 3-250ml
Suitable Tube Length 50-210mm
Suitable Tube Diameter 13-50mm

Detailed photos

Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes

Double material barrel

Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes

Product our plate

Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes

Touch screen

Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes

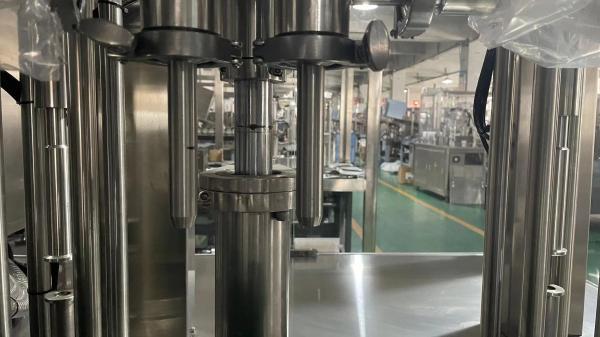

Double Filling heads

Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes

Working stations

Sample diaplay

Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes

Certificate

Automatic Soft Plastic Tube Filling And Sealing Machine for Aluminum Cosmetic Cream Tubes

FAQ

1.what's the delivery time?
It's usually about 30 days

2.how many container request for this machine
Suggest ship by LCL.

3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.

4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.

5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
