Specifications
Brand Name :
Masing Motor
Model Number :
MSRF-300CA
Certification :
RohS,CE,ISO
Place of Origin :
China
MOQ :
5000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
carton box
Product name :
6v brushed dc motor
Shaft Diameter :
2.0mm
Motor spec :
customized
Spec :
Customized
Application :
Water Valve ,Meter Valve
Speed :
1000rpm-10000rpm
Voltage :
1.5v-12v
Motor diameter :
24.4*12.3mm
Brush Model :
Metal Brush or Carton Brush
Description

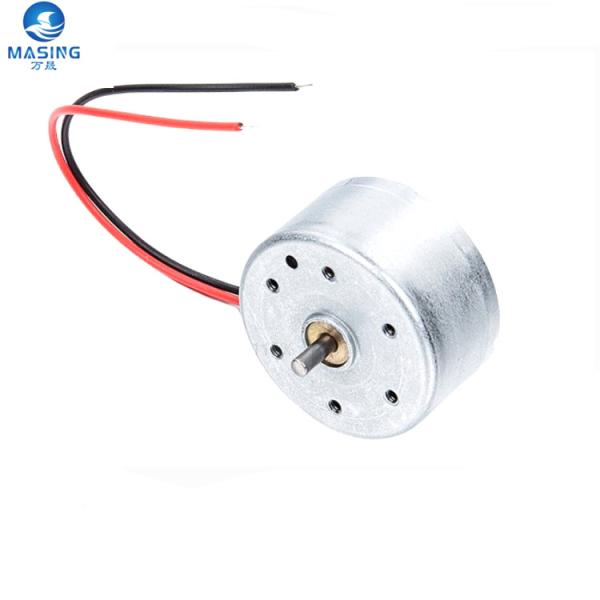

Micro Brushed DC Motor 3000rpm 6000rpm For Water Valve / Meter Valve
Product Overview

DC Brushed Motor JRF-300CA is a compact micro motor designed for water valve and meter valve applications. Featuring oil bearings for low noise operation and extended motor life, this motor offers reliable performance in small diameter applications requiring substantial torque.

Key Specifications
Voltage Range: 1.5V-24V
Speed Range: 1000-10000 RPM
Motor Size: 24.4×12.3mm
Weight: 22g
Noise Level: ≤55DB
Working Temperature: -40°C to +60°C
Torque Range: 1gf.cm-30gf.cm
Motor Type: Permanent Magnet Brushed DC
Product Features
  • Oil bearing construction ensures low noise and extended motor life
  • Compact dimensions: 24.4mm diameter, 12.3mm length
  • Default rotation direction: CW & CCW
  • Suitable for small diameter applications requiring low noise and high torque
  • Compatible with various wheel configurations
  • Constant rotating speed, customizable to requirements
  • Samples available for testing
Applications

Robots, toys, electric razors, medical devices, pumps, smart trash cans, fans, halter fans, solar cap fans, mosquito lights, smart speakers, water valves, meter valves, household appliances, automotive supplies, and various smart home applications.

Product Images
Micro Brushed DC Motor 3000rpm 6000rpm Micro Motor For Water Valve / Meter Valve Micro Brushed DC Motor 3000rpm 6000rpm Micro Motor For Water Valve / Meter Valve
Technical Specifications
Model Voltage Range Rated Voltage No-load Speed No-load Current On-load Speed On-load Current Torque Power Starting Torque Starting Current
JRF-300CA-12400 1.5-6 3.6V 3895 0.02 3134 0.07 0.4 0.11 2.1 0.27
JRF-300CA-330013 3-12 3.0V 4600 0.03 3700 0.11 0.6 0.07 2.9 0.46
JRF-300CA-415010 3-12 3.0V 3500 0.02 2400 0.07 0.5 0.05 1.8 0.22
JRF-300CA-580009 1.5-6 2.0V 1700 0.01 1250 0.03 0.2 0.02 0.8 0.09
Packaging & Delivery
  • Packaging: Strong Carton 500pcs/box, or customized packaging available
  • Shipping Ports: Shenzhen/Guangzhou/Shanghai
  • Package Size: 37×27×24cm
  • Gross Weight: 22g
  • Supply Ability: 100,000 pieces per month
Lead Time
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead Time (days) 10 15 To be negotiated
Samples
  • Maximum order quantity: 1 piece
  • Sample price: $1.5/piece
Certifications & Documentation
Micro Brushed DC Motor 3000rpm 6000rpm Micro Motor For Water Valve / Meter Valve Micro Brushed DC Motor 3000rpm 6000rpm Micro Motor For Water Valve / Meter Valve Micro Brushed DC Motor 3000rpm 6000rpm Micro Motor For Water Valve / Meter Valve Micro Brushed DC Motor 3000rpm 6000rpm Micro Motor For Water Valve / Meter Valve
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: We are a factory specialized in DC motor, DC Gear motor and brushless DC motor etc.
Q2: How about Sample order?
A2: Sample is available for you. Please contact us for details.
Q3: How to select a suitable motor?
A3: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please let us know. We can recommend suitable motor per your request accordingly.
Q4: How long is the delivery?
A4: Delivery time depends on the quantity you order. Usually it takes 15-25 working days.
Q5: Do you have a customized service for your standard motors?
A5: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. We can also add wires/cables, connectors, capacitors, or EMC components as needed.
Q6: How to confirm the payment?
A6: We accept payment by T/T, PayPal, and other payment methods. Please contact us before using alternative payment methods. Typically 30-50% deposit is required, with balance paid before shipping.
