Specifications
Brand Name :
Masing Motor
Model Number :
MS-FFM20
Certification :
ROHS,CE,ISO,16949
Place of Origin :
China
MOQ :
5000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
carton box
Product name :
Electric Dc Motor Manufacturer M20
Shaft Diameter :
φ1.0mm
Motor Spec :
High speed
Motor Diameter :
φ10mm*15mm
Application :
Beauty Devices/toys/power tool/Medical Equipment
Rated Speed :
5000rpm-30000rpm
Rated Voltage :
DC1.2v-12v
Brush Material :
Metal brush
Motor type :
M20 brush motor
Direction of motor :
CW &CCW
Description

Electric Dc Motor Manufacturer M20 Title:

Electric Dc Motor Manufacturer M20 10mm*15mm Dc Motor For Medical Equipment

Electric Dc Motor Manufacturer M20 Description:

  • Widely used in robot,lock. toy, gun magazine, eye brush,power tools,Model Airplanes Eyelash Curlers Electric Toothbrushes Model Airplanes Eyelash Curlers Electric Toothbrushes Car, Electric Bicycle Lock, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Robot

  • Rated Voltage range:DC1.2V-12V

  • Rated Speed:5000rpm-30000RPM

  • Motor Type Size: φ10*12.5mm,Diamter:10mm, Length;12.5mm mini brushed dc motor

  • Suitable to small diameter, low noise and big toque application

  • Shaft diameter :φ1.0mm

  • Shaft type :Ronud ,with hole ,with gear ect

  • Motor type :Brush Motor

  • Brush type :Metal- brush

  • Rated torque :1gf.cm-8gf.cm

  • Direction of motor :CW&CCW

  • Rotating speed is constant and can be made as you required.

  • Can be match with wheel, One shaft one wheel or one motor, one wheel

  • Working temperature:-40~+60°c

  • We can provide samples for your test.

Key attributes:

Rated Speed(RPM)
5000rpm-30000 rpm
Continuous Current(A)
20-100mA
Efficiency
70%
Warranty
3Months-1Year
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
MS-FFM20
Use
Model Airplanes Eyelash Curlers Electric Toothbrushes Car, Electric Bicycle Lock, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Robot
Type
Brush Motor
Rated Torque
1gf.cm-5gf.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Product Name
M20 mini dc motor
Application
Model Airplanes Eyelash Curlers Electric Toothbrushes Home Appliance
Keywords
M20 Metal Brush DC Motor
Motor Diameter
φ10mm
Weight
5g
Noise
≤55DB
MOQ
5000Pcs
Rated voltage
DC1.2V-12V
Color
Customer's Request
Motor Type
M20 Micro dc motor

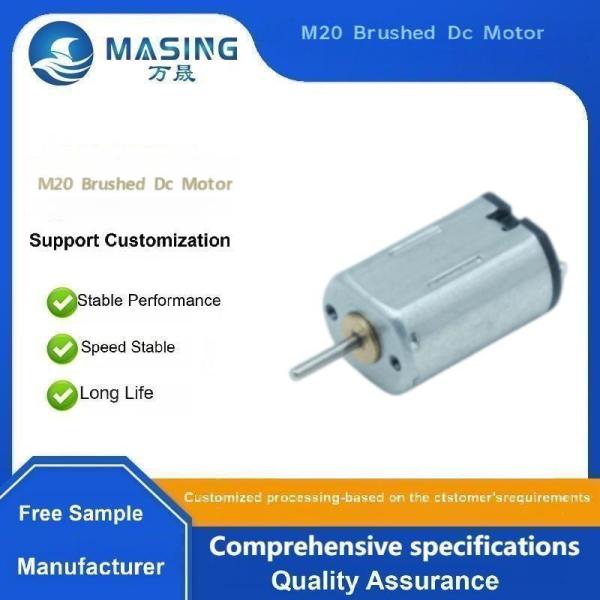

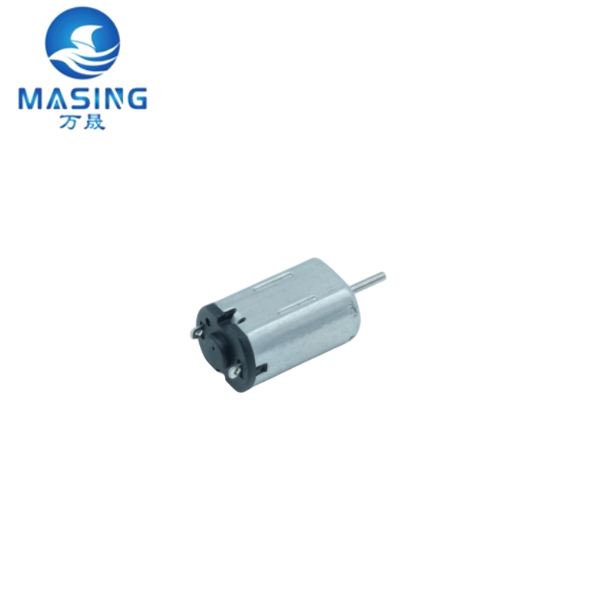

Electric Dc Motor Manufacturer M20 Product Photo:

Electric Dc Motor Manufacturer M20 10mm*15mm For Medical EquipmentElectric Dc Motor Manufacturer M20 10mm*15mm For Medical Equipment

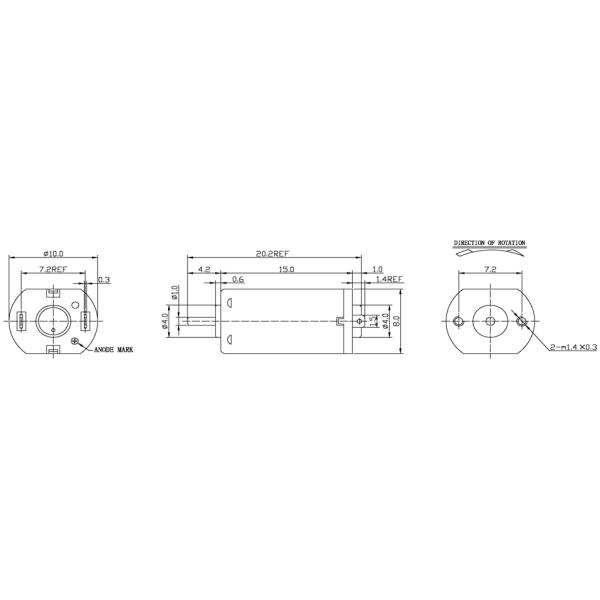

Electric Dc Motor Manufacturer M20 ​Product Spec:

FF-M20 Micro Brush DC Motor Typical Applications
●Household AppliancesCD/DVD player,Camera,Bloodpresure meter,Camera,Ricecooker.
●Har Cae:Electricshaver.,Model Airplanes Eyelash Curlers Electric Toothbrushes
●Office Equipment:Printer,Projector,Counting Machine.

Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.

Electric Dc Motor Manufacturer M20 10mm*15mm For Medical Equipment

MODEL WLIACE NO LOAD AT MAXIYUV EFICIENCY STALL
NORMAL SPEED CURRENT SPEED CURRENT TORQUE Out-put EFF TORQUE CURRENT
V r/min A r/rin A mN.m g.cm W % mN.m g.cm A
FF-M20PA-1552 1.5 16460 0.15 12485 0.48 0.38 3.86 0.50 46.50 1.57 16 1.50
FF-M20PA-08160 3.5 34960 0.23 27727 0.87 0.60 6.10 1.74 55.10 2.94 30 3.40
FF-M2CFA-09135 7.2 26683 0.06 20704 020 0.53 5.37 1.14 50.58 2.35 24 0.72
FF-M20WA-1551 6.0 27100 0.06 21640 024 0.41 4.22 094 56.05 2.06 21 0.95
FF-M20WA-1738 1.85 24000 0.22 18900 0.81 0.43 4.40 0.87 53.00 2.06 21 3.00

Electric Dc Motor Manufacturer M20 10mm*15mm For Medical Equipment

Packaging and delivery:

Packaging Details
Strong Carton 1000pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
5.0kg

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$1.5/piece

Certifications:

Electric Dc Motor Manufacturer M20 10mm*15mm For Medical Equipment

Factory Show:

Electric Dc Motor Manufacturer M20 10mm*15mm For Medical Equipment

Electric Dc Motor Manufacturer M20 10mm*15mm For Medical Equipment

Product Classification:

Electric Dc Motor Manufacturer M20 10mm*15mm For Medical Equipment

Electric Dc Motor Manufacturer M20 10mm*15mm For Medical Equipment

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,

Security monitoring,5G communication,Smart home

Electric Dc Motor Manufacturer M20 10mm*15mm For Medical Equipment

Electric Dc Motor Manufacturer M20 10mm*15mm For Medical Equipment
