20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush
20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush
20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush
20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush
20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush
20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush
20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush
20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush
Specifications
Brand Name :
Masing Motor
Model Number :
MS-FF-180
Certification :
CE,ROHS,ISO,16949
Place of Origin :
China
MOQ :
5000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product name :
ff-180 toothbrush shaver motor
Shaft Diameter :
φ2.0mm
Construction :
Permanent Magnet
Motor Size :
φ20.4mm*32.1mm
Application :
Tattoo Machine, Electric Shaver Appliances,toys ,smart home
Rated Speed :
3000rpm-20000rpm
Rated Voltage :
DC1.2v-24v
Direction of motor :
CW&CCW
Brush type :
Carbon brush /Metal Brush
Description

ff-180 Toothbrush Shaver Motor Title:

High Speed Micro Dc Motor 12v 6v FF-180 Brush Dc Motor For Tattoo Machine Electric Shaver Appliances

ff-180 Toothbrush Shaver Motor Description:

  • Rated Voltage range:DC1.2V-24V

  • Rated speed:2000RPM-25000RPM

  • Rotating speed is constant and can be made as you required.

  • Shaft size :φ2.0mm ,or C-cut

  • Motor Size: φ20.4mm*32.1mm, 20.4mm diamter ,32.1mm length DC mini motor

  • Motor of direction:CW&CCW

  • Shaft Type:D-cut ,Round ,doule -D-cut ,Knurling,with a hole ect

  • Working temperature:-40~+60°c

  • Brush type :Metal -brush /Carton-brush

  • Suitable to small diameter, low noise and big toque application

  • Can be match with wheel, One shaft one wheel or one motor, one wheel

  • Widely used in robot,toy, Electric Razor, Medical Devices,pump ,Smart trash can,Fan ,Automotive headlight regulator, electric pencil sharpener ,teeth cleaner

  • Energy Efficiency: This motor boasts an efficiency of 1 IE, indicating high energy conversion rates and reduced energy waste.

  • We can provide samples for your test.

ff-180 Toothbrush Shaver Motor Key attributes:

Rated Speed(RPM)
2000-25000 rpm
Continuous Current(A)
10-200mA
Efficiency
IE1
Warranty
3Months-1Year
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
FF-180
Use
Toys, Lock, 5G,Home Appliance, Cosmetic Instrument, SMART HOME, Robot,Tattoo Machine Electric Shaver Appliances
Type
High speed dc motor FF-180
Rated Torque
1gf.cm-50gf.cm
Construction
Brush
Commutation
Carbon Brush/Brush
Protect Feature
Totally Enclosed
Product Name
brushed electric motor
Rated Voltage
DC1.2V-24V
Keywords
6Volt Flat Micro dc motor
Motor size
φ20.4*32.1mm
Weight
20g
Noise
≤55DB
MOQ
5000Pcs
Shaft size
Round,D-cut,Flat ect
Magnetic
General magnetic and strong magnetic
Motor type
Brushed /Carbon Brush

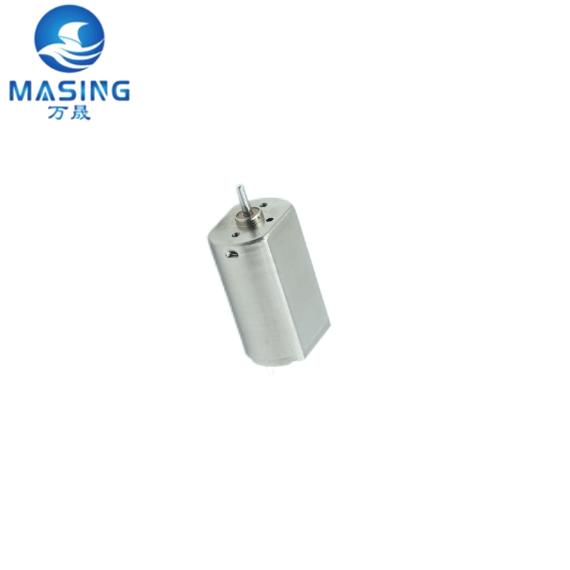

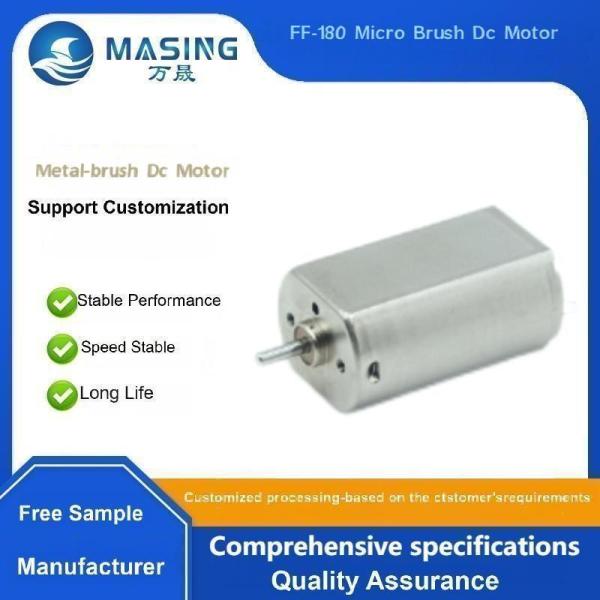

ff-180 Toothbrush Shaver Motor Product Photo:

20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush

ff-180 Toothbrush Shaver Motor Product Spec:

FF-180 DC Motor Typical Applications
●Household AppliancesCD/DVD player,Camera,Bloodpresure meter,Camera,Ricecooker.
●Har Cae:Electricshaver.Tattoo Machine Electric Shaver Appliances
●Toy, Electric Razor, Medical Devices,pump ,Smart trash can,Fan

Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.

20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush

Motor Performance:


MODEL		 VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm mN.m W g.cm mN.m A
FF-180PH-15180 3.0~12.0 12.0 10700 0.08 9000 0.40 28 2.75 2.58 178 17.47 2.13
FF-180SH-2658 1.5~3.0 2.4 7700 0.13 6498 0.70 15.6 1.04 1.04 100 9.81 3.8
FK-180NH-3244 3.0~12.0 12.0 31000 0.62 27000 5.16 120 11.78 33.23 1152 113.05 43.6

Packaging and delivery:

Packaging Details
Strong Carton 250pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
20g

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$1.5/piece

Certifications:

20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush

Factory Show:

20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush

20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush

Product Classification:

20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush

20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,

Security monitoring,5G communication,Smart home

20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush

20mm FF-180 2.4V 9v 12V High Speed Rpm Power Permanent Magnet Mini Electric Brush DC Micro Motor for Tooth Brush

FAQ
Q1: What's the price?
A1: We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.
Q2:What's the MOQ?
A2: We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.
Q3: What's the delivery time?
A3: At the first we have an schedule,the earlier you place order,the fater we finish the production.

In the slack season,we can make sure the delivery time is by one month.

In the busy season,we need more than one month if your quantity is large.

The most important,we can provide free overtime prodution if your order is really urgent.

Q4: Can you send some samples before the order?
A4: Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.
Q5:Can you make our logo on the products?
A5: Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.
Q6:What's the payment term?
A6: For small amount,we accept 100% payment via paypal.

For large amount,we accept 30% telegraphic transfer(TT) as the deposit.And the rest must be paid before shipping.
