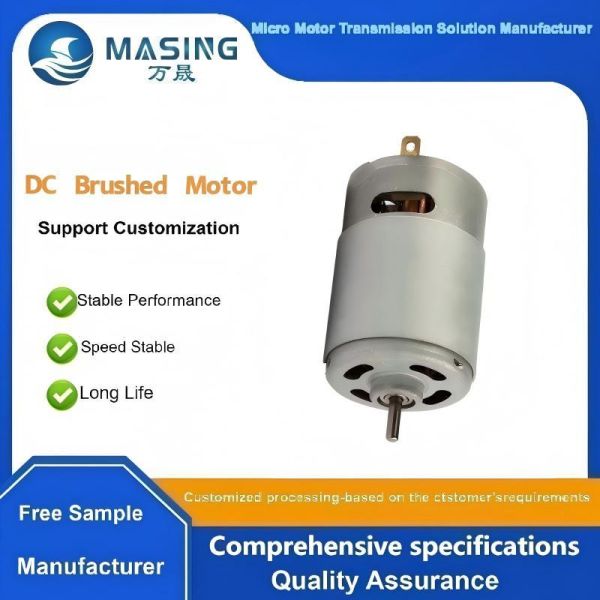

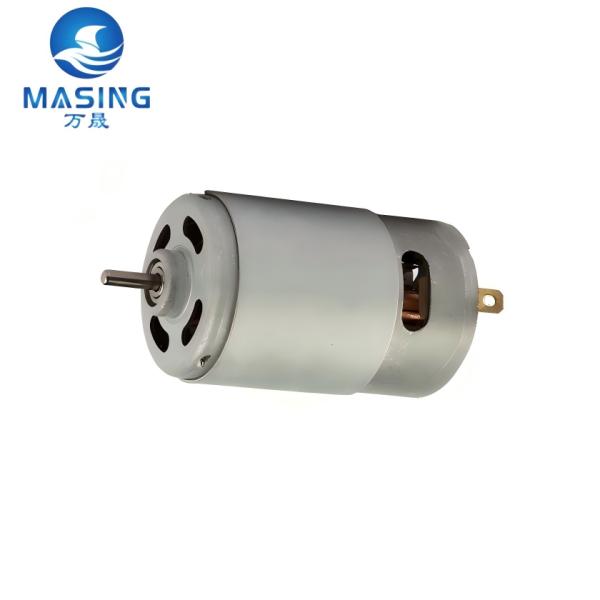

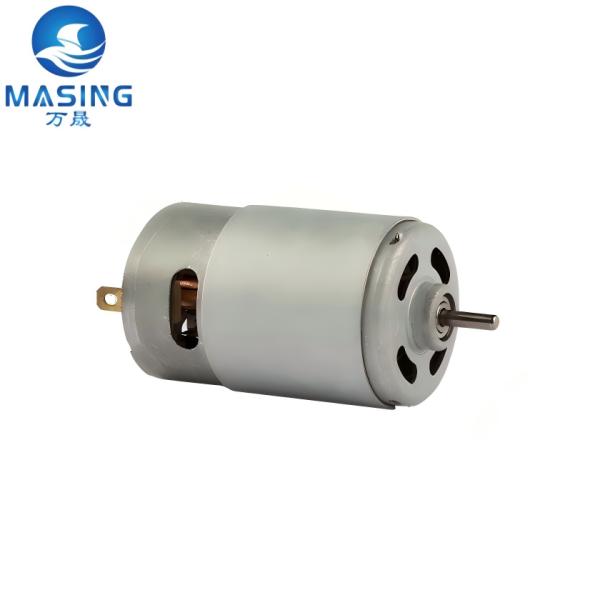

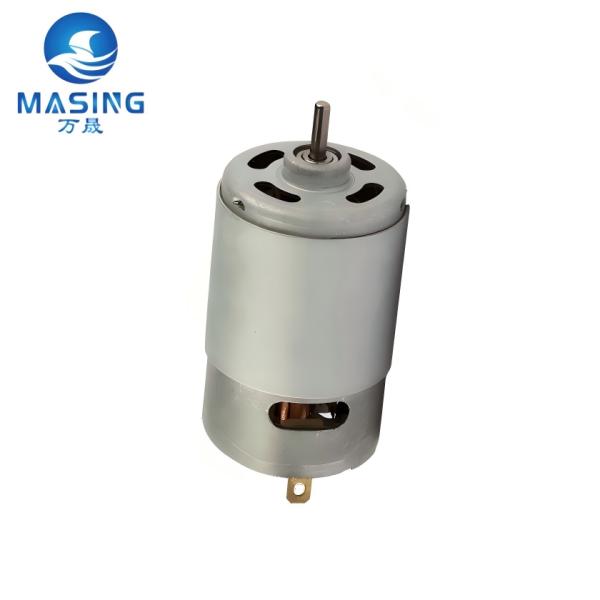

High Power Brushed RS-555 DC Motor 21V 8000rpm for Grass Cutter and Lawn Mower
High Power Brushed RS-555 DC Motor 21V 8000rpm for Grass Cutter and Lawn Mower
High Power Brushed RS-555 DC Motor 21V 8000rpm for Grass Cutter and Lawn Mower
High Power Brushed RS-555 DC Motor 21V 8000rpm for Grass Cutter and Lawn Mower
High Power Brushed RS-555 DC Motor 21V 8000rpm for Grass Cutter and Lawn Mower
High Power Brushed RS-555 DC Motor 21V 8000rpm for Grass Cutter and Lawn Mower
High Power Brushed RS-555 DC Motor 21V 8000rpm for Grass Cutter and Lawn Mower
High Power Brushed RS-555 DC Motor 21V 8000rpm for Grass Cutter and Lawn Mower
Specifications
Brand Name :
Masing Motor
Model Number :
MS-RS550/555
Certification :
ROHS CE ISO,16949
Place of Origin :
China
MOQ :
5000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product name :
high torque brushed motor
Shaft type :
Round ,Flat,D-cut,Knurled shaft
Output power :
1W~100W
Shaft Material :
Carbon Steel or Stainless Steel
Application :
Water Pump/Househols Appliances / Hair Dryer / Massager
Voltage :
DC6.0V-30V
Certificates :
16949,CE,ROHS,ISO
Motor Size :
φ36mm*L57mm
Brush Model :
Carton Brush
Direction of motor :
CW &CCW available
Description
High Torque High Power Brushed RS-555 DC Motor
21V 8000rpm motor designed for grass cutters, lawn mowers, and various industrial applications.
Product Overview
This high-performance brushed RS-555 DC motor delivers exceptional torque and power in a compact design. With a rated voltage range of DC 6.0V-30V and speeds from 3000-30000 RPM, it's ideal for demanding applications.
Key Specifications
  • Rated Voltage: DC 6.0V-30V
  • Rated Speed: 3000-30000 RPM
  • Motor Size: φ36mm * 57mm
  • Output Power: 1W-100W
  • Shaft Diameter: φ3.175mm (customizable)
  • Shaft Materials: Stainless steel or carbon steel
  • Weight: 150g (Approx)
  • Noise Level: ≤55DB
  • Motor Lifetime: 500-5000 hours
  • Working Temperature: -40°C to +60°C
Motor Features
  • Brush Type: Carbon-brush motors
  • Direction: CW & CCW available
  • Protection: Totally enclosed
  • Certifications: CE, ROHS, ISO9001:2000, 16949
  • Customizable shaft types: D-cut, round, flat, with hole, or knurling
Technical Performance Data
MODEL NOMINAL VOLTAGE NO LOAD SPEED NO LOAD CURRENT MAX EFFICIENCY SPEED MAX EFFICIENCY CURRENT MAX EFFICIENCY TORQUE STALL TORQUE STALL CURRENT
RS-550PH-6532 12.0V 16000 rpm 0.90A 14300 rpm 7.80A 480 g.cm 4510 g.cm 65.8A
RS-550PH-5740 18.0V 19000 rpm 0.85A 16800 rpm 7.05A 550 g.cm 4750 g.cm 54.3A
RS-555PH-23110 24.0V 4200 rpm 0.12A 3600 rpm 0.62A 300 g.cm 2400 g.cm 4.1A
RS-555PH-2983 24.0V 6600 rpm 0.16A 5800 rpm 1.15A 370 g.cm 3500 g.cm 8.0A
Applications
Water pumps, household appliances, hair dryers, massagers, automotive air conditioning fans, air pumps, cleaning robots, power tools, smart home devices, cosmetic instruments, and various industrial equipment.
Packaging & Delivery
  • Packaging: Strong carton (250pcs/box) or customized
  • Single Package Size: 37*27*24cm
  • Single Gross Weight: 80g (Approx)
  • Ports: Shenzhen, Guangzhou, Shanghai
Supply Capacity
100,000 pieces per month
Lead Time
Quantity (pieces) Lead Time (days)
1 - 100 10
101 - 1000 15
> 1000 To be negotiated
Samples
  • Maximum order quantity: 1 piece
  • Sample price: $1.5/piece
  • Shipping: UPS, TNT, FEDEX, or DHL available
Customization
We can customize voltage, rated torque, speed, current, power, shaft size, and add your logo to meet specific requirements.
Quality Assurance
Every product undergoes 100% quality inspection before shipment. Please use within the specified voltage range to prevent motor damage.
Frequently Asked Questions
Q1: What's the price?
A1: As a professional manufacturer, our pricing is based on client specifications including speed, voltage, and other requirements.
Q2: What's the MOQ?
A2: Our MOQ is flexible depending on product complexity and production season. Please contact our sales team for specific requirements.
Q3: What's the delivery time?
A3: Standard delivery is within one month during slack season. Busy seasons may require additional time for large quantities. We offer overtime production for urgent orders.
Q4: Can you send samples before order?
A4: Yes, we provide samples for quality confirmation via UPS, TNT, FEDEX, or DHL.
Q5: Can you add our logo to the products?
A5: Certainly! We can customize most products including adding your logo to the motors.
