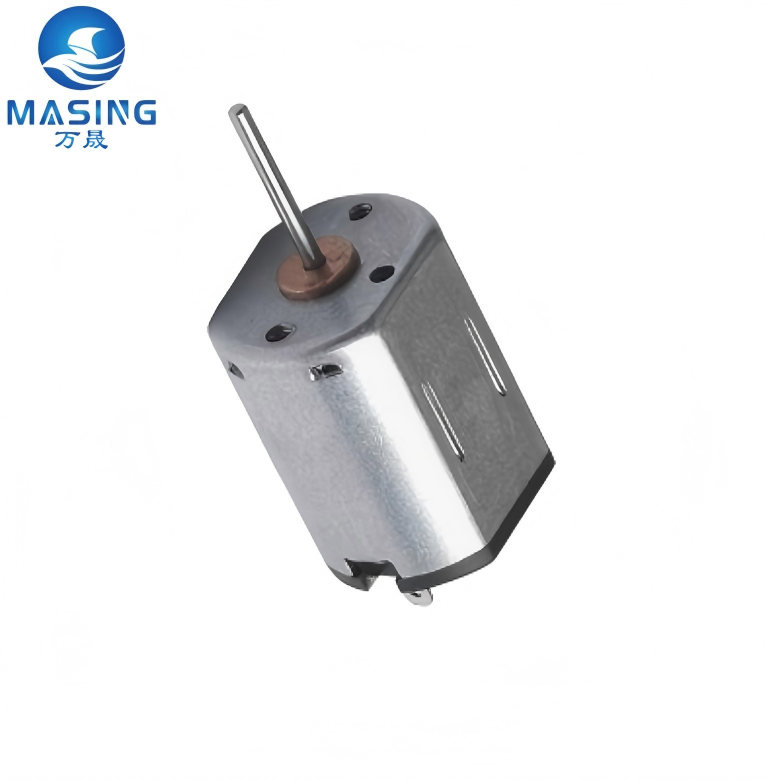

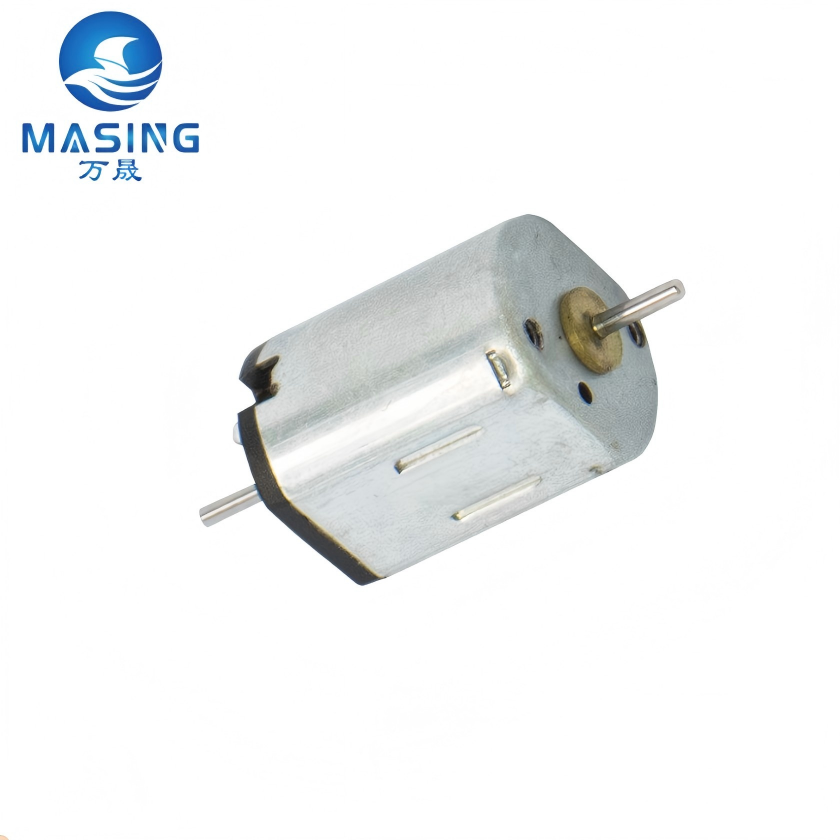

N20 Micro DC Brushed Motor 5000-30000 RPM High Speed with 12mm Diameter and Customizable Shaft
N20 Micro DC Brushed Motor 5000-30000 RPM High Speed with 12mm Diameter and Customizable Shaft
N20 Micro DC Brushed Motor 5000-30000 RPM High Speed with 12mm Diameter and Customizable Shaft
N20 Micro DC Brushed Motor 5000-30000 RPM High Speed with 12mm Diameter and Customizable Shaft
N20 Micro DC Brushed Motor 5000-30000 RPM High Speed with 12mm Diameter and Customizable Shaft
N20 Micro DC Brushed Motor 5000-30000 RPM High Speed with 12mm Diameter and Customizable Shaft
N20 Micro DC Brushed Motor 5000-30000 RPM High Speed with 12mm Diameter and Customizable Shaft
N20 Micro DC Brushed Motor 5000-30000 RPM High Speed with 12mm Diameter and Customizable Shaft
Specifications
Brand Name :
Masing Motor
Model Number :
MS-FFN20
Certification :
ROHS,CE,ISO,16949
Place of Origin :
China
MOQ :
5000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
carton box
Material :
Steel,Copper
Shaft :
Customization
Motor Spec :
Customization
Spec :
Customization
Application :
Beauty Devices/toys
Speed :
5000rpm-30000rpm
Voltage :
1.2v-12v
Motor diameter :
12mm n20 dc motor
Brush Model :
Metal Brush or Carton Brush
Description
N20 Small Micro DC Motor 5000RPM 10000RPM High Speed DC Brushed Motor
High-speed DC brushed motor designed for small home appliances and precision applications requiring compact size and reliable performance.
Key Features
  • Wide voltage range: DC 1.5-12V
  • Rated speed: 5000-30000 RPM (customizable)
  • Compact dimensions: 12mm diameter * 15mm length
  • Shaft diameter: 1.0mm
  • Low noise operation with high torque output
  • Metal/carbon brush construction
  • Bidirectional operation (CW & CCW)
  • Working temperature range: -40°C to +60°C
  • Compatible with various wheels and accessories
Technical Specifications
Parameter Value
Speed (RPM) 5000-30000 rpm
Continuous Current 20-100mA
Efficiency 70%
Torque 0.01 kg.cm
Weight 5g
Noise Level ≤55 DB
Construction Permanent Magnet
Commutation Brush
Protection Totally Enclosed
Encoder Optical Encoder
Product Images
N20 Micro DC Brushed Motor 5000-30000 RPM High Speed with 12mm Diameter and Customizable Shaft N20 Micro DC Brushed Motor 5000-30000 RPM High Speed with 12mm Diameter and Customizable Shaft
Typical Applications
Household Appliances: CD/DVD players, cameras, blood pressure meters, rice cookers
Personal Care: Electric shavers
Office Equipment: Printers, projectors, counting machines
Other Applications: Robots, locks, toys, gun magazines, eye brushes, power tools, vacuum cleaner robots
Advanced Applications
Driverless systems, artificial intelligence, intelligent transportation, healthcare, smart cities, automotive supplies, security monitoring, 5G communication, smart home
N20 Micro DC Brushed Motor 5000-30000 RPM High Speed with 12mm Diameter and Customizable Shaft
Packaging & Delivery
Packaging: Strong carton (1000pcs/box) or customized packaging
Port: Shenzhen/Guangzhou/Shanghai
Package Size: 37*27*24cm
Gross Weight: 5.0kg
Supply Capacity
100,000 pieces per month
Lead Time
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead Time (days) 10 15 To be negotiated
Samples
Maximum Order Quantity: 1 piece
Sample Price: $1.5/piece
Certifications
N20 Micro DC Brushed Motor 5000-30000 RPM High Speed with 12mm Diameter and Customizable Shaft
Factory Overview
N20 Micro DC Brushed Motor 5000-30000 RPM High Speed with 12mm Diameter and Customizable Shaft
Product Classification
N20 Micro DC Brushed Motor 5000-30000 RPM High Speed with 12mm Diameter and Customizable Shaft
Frequently Asked Questions
Q1: How to select a suitable motor?
If you have motor pictures, drawings, or detailed specifications (voltage, speed, torque, motor size, working mode, lifetime requirements, noise level), please share them with us. We will recommend suitable motors based on your requirements.
Q2: Do you have a customized service for your standard motors?
Yes, we can customize voltage, speed, torque, and shaft size/shape. We can also add wires/cables, connectors, capacitors, or EMC components as needed.
Q3: Do you have an individual design service for motors?
Yes, we provide individual motor design services. Custom designs may require mold charges and design fees.
Q4: How do you ensure motor quality?
We maintain strict quality control with inspection procedures for incoming materials, production process tour inspections, and final product inspections before shipping.
Q5: When will you reply after receiving my inquiries?
We respond to all inquiries within 24 hours.
Note: Voltage, rated torque, speed, current, power, and shaft size can be customized according to your requirements.
