12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock
12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock
12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock
12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock
12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock
12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock
12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock
12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock
Specifications
Brand Name :
Masing Motor
Model Number :
MS-FFN20
Certification :
ROHS,CE,ISO,16949
Place of Origin :
China
MOQ :
5000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
carton box
Product name :
N20 motor with PCB 12v Locks motor
Shaft :
Customization D-cut or Round
Motor Spec :
1000rpm-30000rpm
Spec :
Customization
Application :
Beauty Devices/toys/New Energy Vehicle Electronic Lock
Speed :
5000rpm-30000rpm
Voltage :
1.2v-12v
Motor diameter :
φ12mm
Brush Model :
Metal Brush or Carton Brush
Description

N20 Electronic Lock Micro Motor 12V Title:

N20 Motor High Speed 10000rpm-45000rpm Micro DC Motors for Toys and Vacuum Cleaner Robot

N20 Electronic Lock Micro Motor 12V Description:

  • Widely used in robot,lock. toy, gun magazine, eye brush,power tools,Toys and Vacuum Cleaner Robot,New Energy Vehicle Electronic Lock,Laser

  • Voltage range:DC 1.5-12V

  • Rated Speed:5000-30000RPM

  • Rotating speed is constant and can be made as you required.

  • Size: 12*15mm, 15mm diamter ,12mm length mini motor

  • Shaft diameter :φ1.0mm

  • Shaft type :Round,D-cut , knurling ect

  • Suitable to small diameter, low noise and big torque application

  • Brush type :Metal/Carbon brush

  • Motor default direction:CW&CCW

  • Can be match with wheel, One shaft one wheel or one motor, one wheel

  • Working temperature:-40~+60°c

  • We can provide samples for your test.

N20 Electronic Lock Micro Motor 12V Key attributes:

Speed(RPM)
3000-30000 rpm
Continuous Current(A)
20-100mA
Efficiency
70%
Warranty
Others
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
Brush Micro N20 Motor
Use
Car, Electric Bicycle Lock, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Robot
Type
N20 DC Motor 12V 20000RPM
Torque
0.1gf.cm-30gf.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Product Name
Permanent magnet electric motor
Application
Home Appliance
Keywords
N20 Laser motor
Diameter
12mm*15mm
Weight
5g
Noise
≤55DB
MOQ
5000Pcs
Encoder
Optical Encoder
Color
Customer's Request
Motor type
High speed dc mini motor

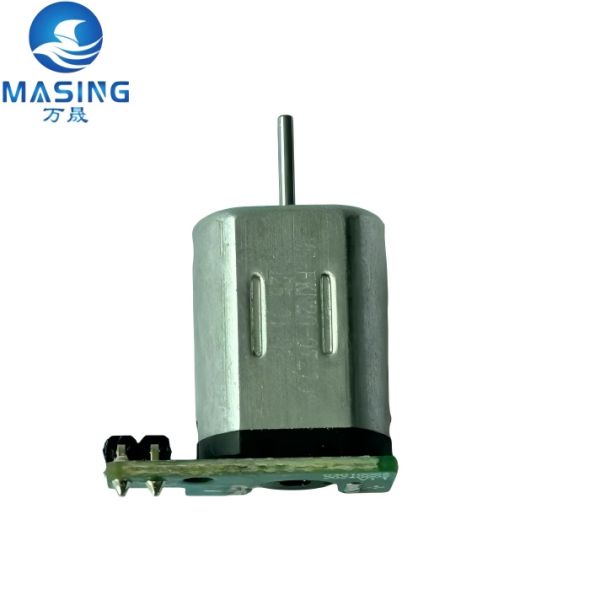

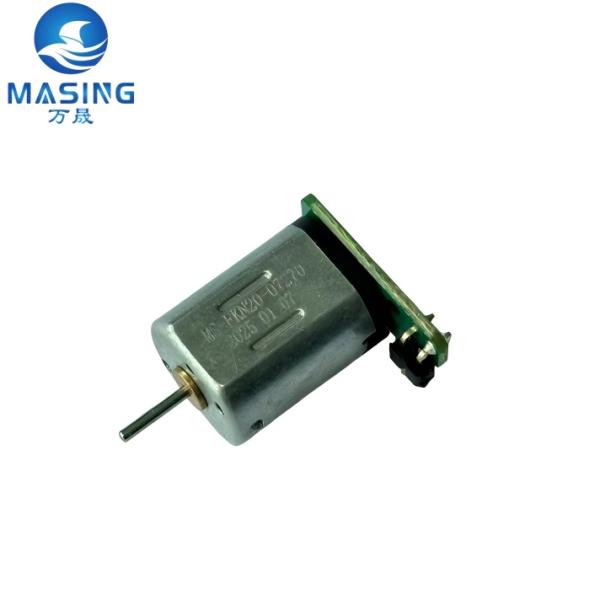

N20 Electronic Lock Micro Motor 12V Product Photo:

12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock

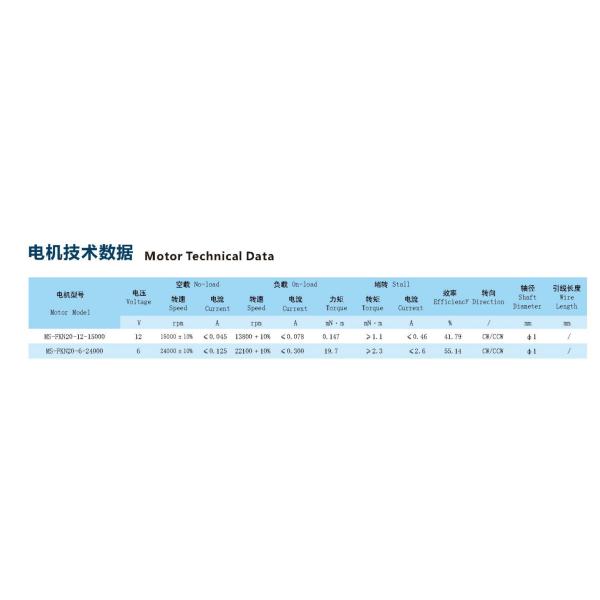

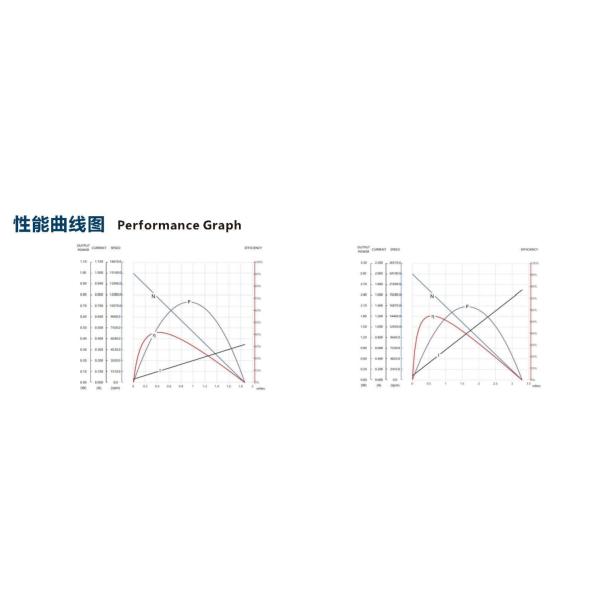

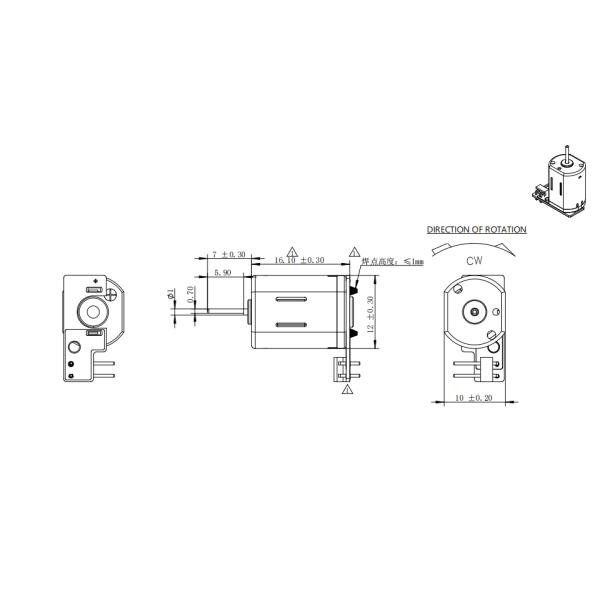

N20 Electronic Lock Micro Motor 12V Product Spec:

FF-N20 DC Motor Typical Applications
●Household AppliancesCD/DVD player,Camera,Bloodpresure meter,Camera,Ricecooker.
●Har Cae:Electricshaver.
●Office Equipment:Printer,Projector,Counting Machine.

Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.

12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock

12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock

12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock

Packaging and delivery:

Packaging Details
Strong Carton 1000pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
5.0kg

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$1.5/piece

Certifications:

12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock

Factory Show:

12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock

Product Classification:

12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,

Security monitoring,5G communication,Smart home

12v 20000rpm Micro Brushed Motor D-Cut Shaft With PCB Curved Needle Motor For New Energy Vehicle Electronic Lock

FAQ
Q1: How to select a suitable motor?
A1: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q2: Do you have a customized service for your standard motors?
A2:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q3:Do you have an individual design service for motors?
A3:Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.


Q4: Can I have samples for testing first?
A4: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.


Q5: How do you make sure motor quality?
A5: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
