Specifications
Brand Name :
Masing Motor
Model Number :
DLM1618A22-16
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
5000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product name :
Micro Linear Motors Electric Shaver Motor
Voltage :
3.0-4.2vDC
Electric drive solution :
The overall circuit board driving scheme of the machine
Number of knife headst :
3 or 5
Application :
hair cutting equipment such as shaves and hair removal devicesRevolving razor/ Electric Shaver
Supporting amplitude :
±1mm (through 3 holes)
mode of motion :
move towards each other in opposite directions
Resistance :
220±30.0mΩ
Motor model :
Linear Motors 36.5*13mm
Description
Micro Linear Motor Single-Cell Lithium Battery 3.0-4.2Vdc Electric Shaver Motor
Product Overview

3.0-4.2VDC Linear DC Motor designed for revolving razors and micro linear motor applications. This compact motor delivers reliable performance for precision cutting equipment and vibration functions in various electronic devices.

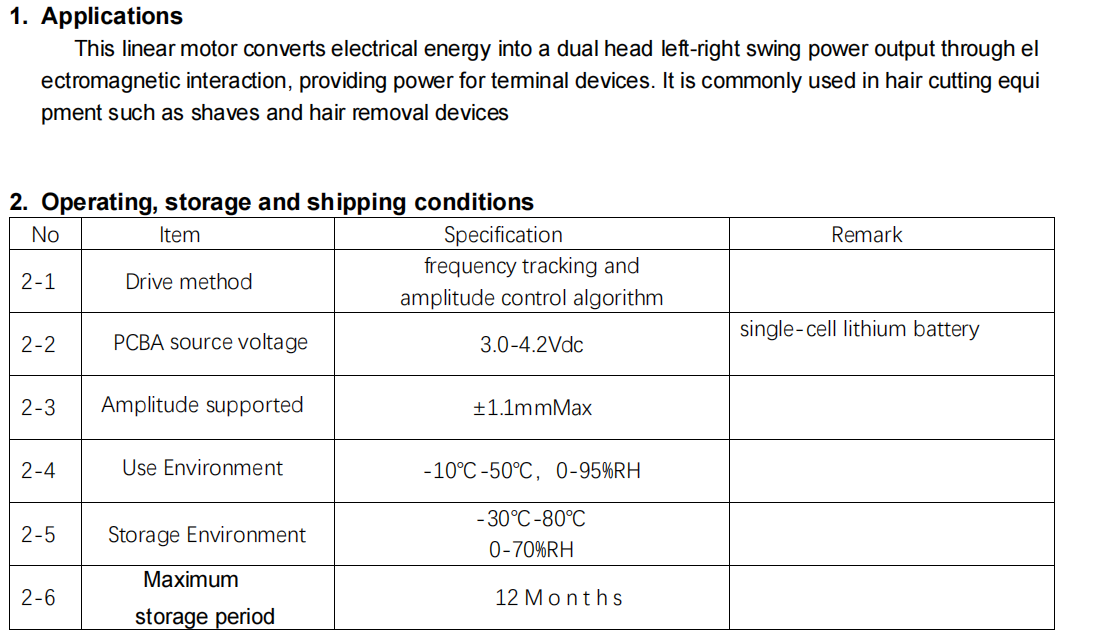

Technical Specifications
  • Rated Voltage: 3.0-4.2VDC
  • Resistance: 220±30mΩ
  • Operating Temperature Range: -10℃ to 60℃
  • Storage Temperature Range: -40℃ to 80℃
  • Electrical Inductance: 0.36±0.1mH
  • Torque Constant / Back EMF Constant: 1.25±10% N/A V/(m/s)
  • Elastic Constant: 24.6±10% N/mm
  • Mechanical Damping Constant: 0.15N/(m/s)
  • Noise Level: <65dB
  • Electric Drive Solution: Frequency tracking amplitude adaptive scheme
  • Rated Vibration: 0.9±0.15Grms
  • Supply Voltage: 3.0-4.2VDC
  • Number of Knife Heads: 3 or 5
  • Motion Mode: Move towards each other in opposite directions
Key Attributes
Attribute Specification
Rated Voltage 3.0-4.2VDC single-cell lithium battery
Resistance 240±30mΩ
Operating Temperature Range -10℃ to 60℃
Warranty Others
Place of Origin Guangdong, China
Brand Name Masing Motor
Model Number DLM1618A22-16
Use Revolving Razor, Mobile phones, tablets, VR glasses, smart wearables, headphones, game controllers' vibration functions, cellular phones and other communication tools
Type Electric Shaver Motor
Electrical Inductance 0.36±0.1mH
Mass of Oscillator 6.5±0.2g
Elastic Constant 22±15% N/mm
Electric Drive Solution Frequency tracking amplitude adaptive scheme
Supply Voltage 3.0-4.2VDC
Number of Knife Heads 3 or 5
Keywords Linear Motor
Motor Width 14.6±0.2 mm
Motor Height 6.4±0.1mm
Mechanical Noise Max. 65dB(A)
MOQ 5000 Pcs
Vibration at F0 0.93±0.2Grms
Weight 11±1.5 Gram
Motor Type Micro Linear Motor
Product Images
Micro Linear Motor Single-Cell Lithium Battery 3.0-4.2Vdc Electric Shaver Motor For Reciprocating Motor For The Razor Micro Linear Motor Single-Cell Lithium Battery 3.0-4.2Vdc Electric Shaver Motor For Reciprocating Motor For The Razor Micro Linear Motor Single-Cell Lithium Battery 3.0-4.2Vdc Electric Shaver Motor For Reciprocating Motor For The Razor Micro Linear Motor Single-Cell Lithium Battery 3.0-4.2Vdc Electric Shaver Motor For Reciprocating Motor For The Razor Micro Linear Motor Single-Cell Lithium Battery 3.0-4.2Vdc Electric Shaver Motor For Reciprocating Motor For The Razor Micro Linear Motor Single-Cell Lithium Battery 3.0-4.2Vdc Electric Shaver Motor For Reciprocating Motor For The Razor
Customization Note: Voltage, rated torque, speed, current, power, and shaft size can be customized as per requirement.
Packaging & Delivery
  • Packaging Details: Strong Carton 1000pcs/box, or as requested
  • Port: Shenzhen/Guangzhou/Shanghai
  • Selling Units: Single item
  • Single Package Size: 37×27×24cm
  • Single Gross Weight: 8g
Supply Capacity

100,000 Piece/Pieces per Month

Lead Time
Quantity (pieces) Lead Time (days)
1 - 100 10
101 - 1000 15
> 1000 To be negotiated
Samples
  • Maximum Order Quantity: 1 piece
  • Sample Price: $1.5/piece
Certifications
Micro Linear Motor Single-Cell Lithium Battery 3.0-4.2Vdc Electric Shaver Motor For Reciprocating Motor For The Razor
Factory Show
Micro Linear Motor Single-Cell Lithium Battery 3.0-4.2Vdc Electric Shaver Motor For Reciprocating Motor For The Razor
Product Classification
Micro Linear Motor Single-Cell Lithium Battery 3.0-4.2Vdc Electric Shaver Motor For Reciprocating Motor For The Razor
Applications

Driverless systems, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home, Cell phones, Bluetooth devices, toys, medical equipment, mini fans, Home Appliance, Cosmetic Instrument, SMART HOME, Robot

Micro Linear Motor Single-Cell Lithium Battery 3.0-4.2Vdc Electric Shaver Motor For Reciprocating Motor For The Razor
Frequently Asked Questions
Q1: How to select a suitable motor?
A1: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q2: Do you have a customized service for your standard motors?
A2: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q3: Do you have an individual design service for motors?
A3: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
Q4: Can I have samples for testing first?
A4: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q5: How do you make sure motor quality?
A5: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
