DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys
DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys
DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys
DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys
DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys
DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys
DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys
DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys
Specifications
Brand Name :
Masing Motor
Model Number :
MS0720
Certification :
CE,ROHS,ISO,16949
Place of Origin :
China
MOQ :
5000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product name :
0720 Micro Coreless Motor
Voltage :
3.7v -4.2v dc
Rated Torque :
1gf.cm-20gf.cm
Motor size :
φ10mm*20mm
Application :
Racing Drone ,toys ,DIY Drone,UAV
efficiency :
Customized
Construction :
Permanent Magnet
Shaft diameter :
φ1.0mm
Motor model :
micro coreless motor
Description

0720 Micro Coreless Motor Title:

DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys

0720 Micro Coreless Motor Description:

  • Motor model :MS0720 Micro DC Coreless Motor 3.7v

  • Voltage range:DC1.5V-5V

  • Speed:Customized 5000-40000RPM

  • Rotating speed is constant and can be made as you required.

  • Motor default direction:CW&CCW

  • Motor Size: φ07*20mm,7mm,diameter, 20mm length mini motor

  • Motor shaft size :φ1.0mm

  • Brush type :Metal Brush

  • Number ofpolepairs:1

  • Number of commutator segments:5

    Weight of motor:6.9g

  • The vibrating wheel attached can provide additional functions.

  • Suitable to small diameter, low noise and big toque application

  • Widely used in Electric:Racing Drone ,toys ,DIY Drone toothbrush, massager, children's toys,Space model robot,lock. toy,Model trains ,Robots ,toy ,Vibration Instrument,Adult products

  • We can provide samples for your test.

0720 Micro Coreless Motor Key attributes:

Speed(RPM)
10000rpm-60000rpm
Continuous Current(A)
0.01-0.06A
Vibrator
copper ,steele ,Powder metallurgy ect
Warranty
Others
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
MS0720 mciro dc coreless motor
Use
Racing Drone ,toys ,DIY Drone,Electric toothbrush, massager, children's toys,Space model
Type
3.0v 45000rpm micro coreless motor
Torque
1gf.cm-20gf.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Product Name
φ7mm*20mm Small Coreless DC Motor
Application
Vibration Instrument,toys,massager,beauty apparatus ,Bladeless fan Aromatreatment machine ,Small motor intelligent toy
Keywords
0720 mini UAVs coreless motor
Diameter
φ7mm coreless motor
Weight
6.9g
Noise
≤55DB
MOQ
5000Pcs
Direction of motor
CW &CCW
Color
Customer's Request
Motor type
remote control hobby products dc coreless motor

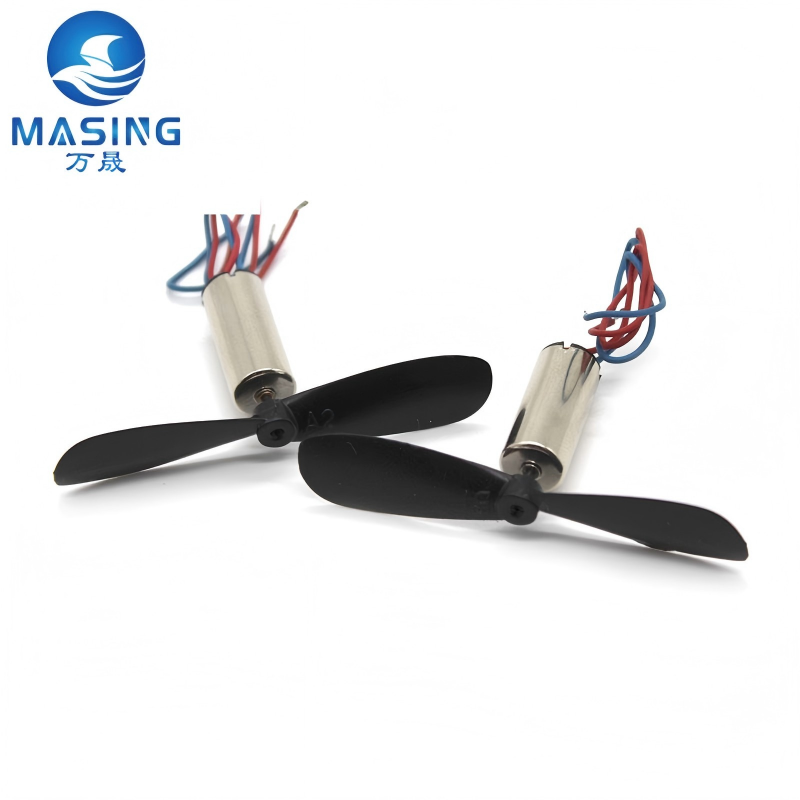

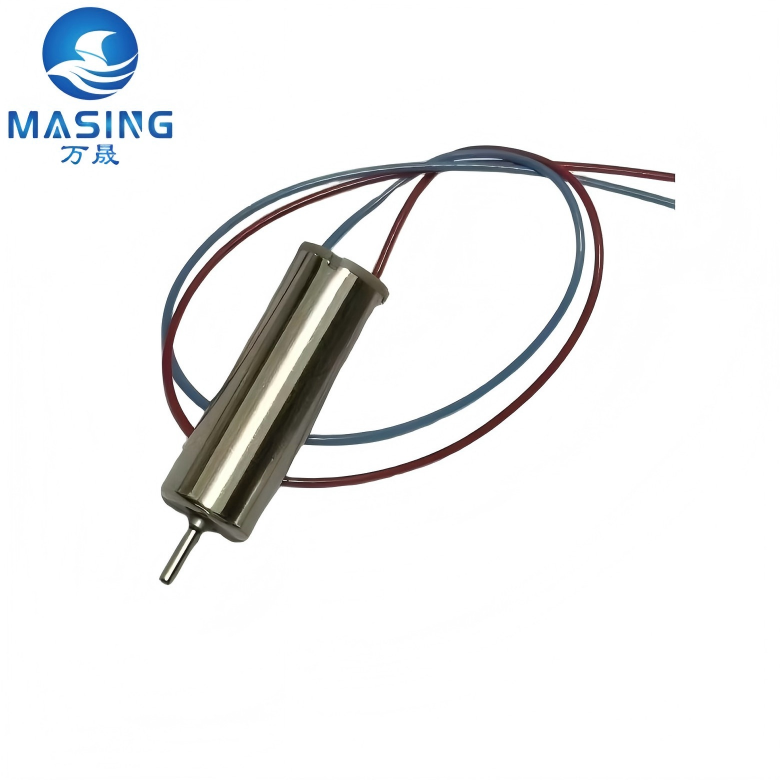

0720 Micro Coreless Motor Product Photo:

DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And ToysDC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys

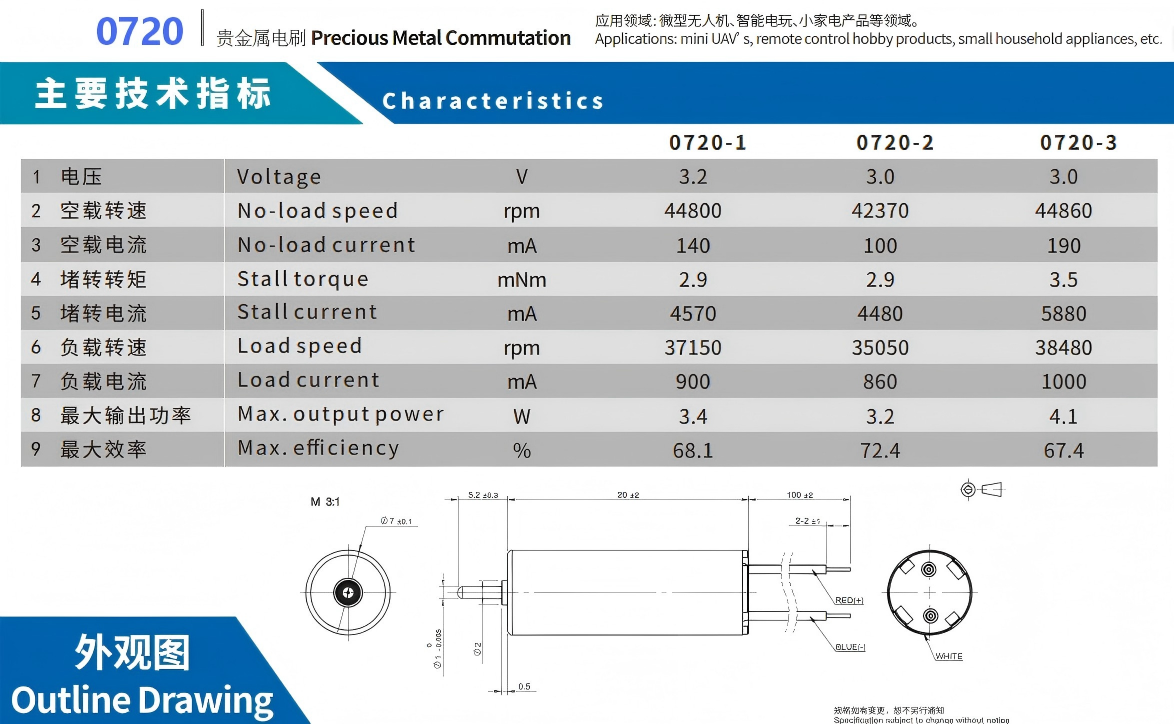

0720 Micro Coreless Motor Product Spec:

0720 Mini Coreless DC Motor Typical Applications
●Toys,Massager,Beauty apparatus,Home Appliance, Cosmetic Instrument, SMART HOME, Robot,Home Appliance,

Cosmetic Instrument, SMART HOME, Robot,Racing Drone ,toys ,DIY Drone,mini UAVs,remote control hobby products,smallhousehold appliances,etc

Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.

DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys

Model of Motor 037180 060250 050100 120100
Motor Data at nominal voltage
Nominal voltage V 3.7 6 5 12
No load speed rpm 18000 25000 10000 10000
No load current mA 50 40 30 10
Nominal speed rpm 16800 23700 7700 7500
Nominal torque/max.continuous torque g.cm 5 4 8 10
Nominal current/max.continuous current A 0.3 0.23 0.2 0.1
Stall torque g.cm 32.14 76.92 34.78 40
Stall current A 3.1 2.95 0.7 0.326
Max.efficiency % 65 85 70 75
Terminal resistance Ω 1.2 2.03 7.16 36.8
Terminal inductance Mh 32.6 28.8 58.9 113.6
Torque constant g.cm/A 10.36 26.07 49.68 122.7
Speed constant rpmN 4864 4166 2000 833
Speed/torque gradient rpm/g.cm
Mechanical time constant ms 15.46 4.03 4.01 3.38
Rotor inertia gcm² 0.144 0.144 0.144 0.144
Other specifications
Number of pole pairs 1
Number of commutator segments 5
Weight of motor g 6.9

Packaging and delivery:

Packaging Details
Strong Carton 1000pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
6.9g

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$1.5/piece

Certifications:

DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys

Factory Show:

DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys

DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys

Product Classification:

DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys

DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,

Security monitoring,5G communication,Smart home

DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys

FAQ

Q1:What's the price?

A1:We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

Q2:What's the MOQ?

A2:We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.

Q3: What's the delivery time?
A3: At the first we have an schedule,the earlier you place order,the fater we finish the production.

In the slack season,we can make sure the delivery time is by one month.

In the busy season,we need more than one month if your quantity is large.

The most important,we can provide free overtime prodution if your order is really urgent.

Q4: Can you send some samples before the order?

A4:Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.

Q5: Can you make our logo on the products?
A5:Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.

Q6:What's the payment term?
A6: For small amount,we accept 100% payment via paypal.

For large amount,we accept 30% telegraphic transfer(TT) as the deposit.And the rest must be paid before shipping.
