JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper
JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper
JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper
JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper
JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper
JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper
JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper
JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper
Specifications
Brand Name :
Masing Motor
Model Number :
JSBM20-A Micro Water Pump
Certification :
ROHS,CE,ISO,16949
Place of Origin :
China
MOQ :
5000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
carton box
Product name :
JSBM20-A Micro Water Pump
Shaft size :
customized
Motor size :
φ10mm*15mm
voltage :
DC2.0-6.0V
Brush type :
Brush or Carbon Brush DC Motor
Application :
Household appliances, sweeper, beauty instruments, aquarium equipment
Structure :
Totally Enclosed
Key word :
Micro Water Pump
Material :
Rohs
Certificates :
CE,ROHS,ISO,16949
Description

M20 Micro Water Pump DC2.0-6.0V Title:

JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances and Sweeper

M20 Micro Water Pump DC2.0-6.0V Description:

  • Rated Voltage range:DC2.0V-6V

  • Rated Speed:1000rpm-10000rpm

  • Motor Size: φ10*15mm,diamter 10mm ,15mm length mini motor

  • Suitable to small diameter, low noise and big torque application

  • Motor default direction:CW&CCW

  • Motor type :Brush dc motor

  • Brush type :Metal brush/Carbon brush

  • Motor shaft diameter :φ2.0mm

  • Can be match with wheel, One shaft one wheel or one motor, one wheel

  • Power:0-4.0 W

  • Pressure:0-130KPA
  • Flow:50-120mL/Min Use environment:0~50°℃,75%RH

  • Working temperature:-40~+60°c

  • We can provide samples for your test.

  • Rotating speed is constant and can be made as you required.

  • Widely used in Water pump Air pump, Household appliances, sweeper, beauty instruments, aquarium equipment Health care equipment,medical equipment,beauty equipment

M20 Micro Water Pump DC2.0-6.0V Key Attributes:

Rated Speed(RPM)
1000rpm-10000 rpm
Continuous Current(A)
10-150mA
Voltage
DC2.0-6.0V
Warranty
Others
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Flow
50-120mL/min
Use
Sweeper, Water pump Air pump ,Health care equipment, household appliances,medical equipment,beauty equipment
Type
Micro Water Pump DC2.0-6.0V
Suction head
＞1m
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Product Name
3V Micro Water Pump
Application
Sweeper, Water pump Air pump ,Health care equipment, household appliances
Keywords
Mini water pump
Diameter
φ10mm
Lift of pump
＞2m
Noise
≤55DB
MOQ
5000Pcs
Life time
100-1000Hours
Color
Customer's Request
Motor type
M20 Micro Pump

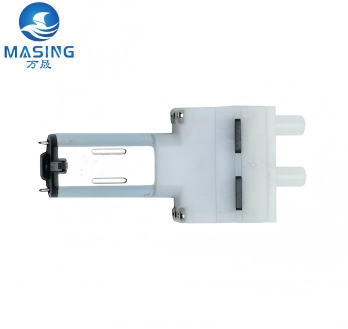

M20 Micro Water Pump DC2.0-6.0V Product Photo:

JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, SweeperJSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper

M20 Micro Water Pump DC2.0-6.0V Product Spec:

M20 Micro Water Pump Typical Applications

● Househdld Appliances:Air freshener,smartvacuumcleaner,soap dbperser,Water pump Air pump, Health care equipment, household appliances,medical equipment,beauty equipment,Sweeper

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper

JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper

Packaging and delivery:

Packaging Details
Strong Carton 250pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
10.5kg

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 5000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$1.5/piece

Certifications:

JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper

Factory Show:

JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper

JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper

Product Classification:

JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper

JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper

JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper

FAQ
Q1:What's the price?
A1:We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

Q2:What's the MOQ?
A2:We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.

Q3:How to deliver the goods?
A3: We will deliver via Express such as UPS,FEDEX,DHL,TNT etc.

It is fast and safety.If goods quantity is large,the shipping cost will be cost-effective.

Q4:Can you make our logo on the products?
A4:Certainly,logo is easy as most of our products are customizable.

So logo in usually logo is necessary.It can be printed,emboridered,embossed/jacquard.


Q5: What's the payment term?
A5: For small amount,we accept 100% payment via Western Union.

For large amount,we accept 30% telegraphic transfer(TT) as the deposit.And the rest must be paid before shipping.
