Description:

· Frame stress: hard pressed extruded aluminum 6061/T6(15HW) , which are technically anodized, never rust.

· Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.

· Roof fabric: 850g/sqm PVC

· Connector: strong hot-dip galvanized steel

· Allowed temperature condition: -30 degree Celsius~+70 degree Celsius

· Wind load: max. 100km/h (can be reinforced)

· Snow load: 75kg/sqm

· Life time: aluminum frame for more than 10 years, fabric for more than 5 years

· Optional accessories to choose

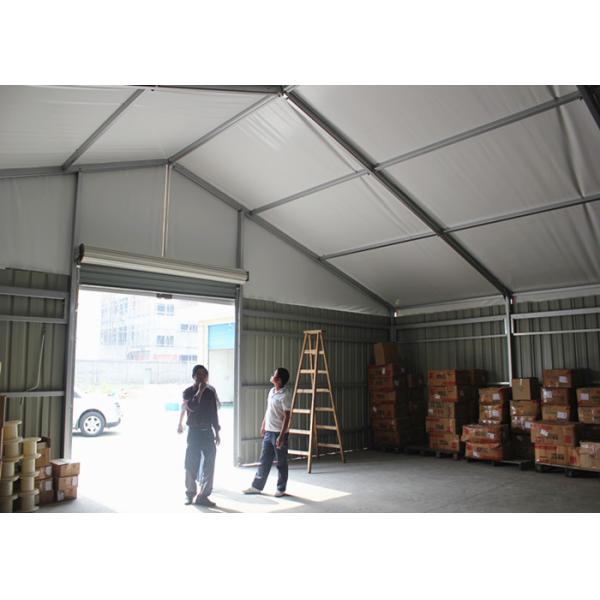

The 10m span aluminum frame warehouse tent main part is made of 48x84x3mm aluminum alloy, which is technically anodized and the spare parts are made of steel, which is well hot-dip galvanized.
The roof cover is made of 750g/sqm PVC. The sidewall cover is steel tile. The bay can be added when you think the area is not enough. The 10m span tent can be 10x15m, 10x18m, 10x21m …10x45m, etc. Some optional accessories can be chosen, like glass door, shutter door, door canopy, flooring system, etc.
Applications:
The 20m span tent can be used for outdoor event, graduation ceremony, industrial warehouse and so on.
We use different fixing ways according to different grounds, like concrete ground, grassland, sand, soil, etc.

Competitive Advantage:

· Custom design the tent according to the clients' requirements ,for example, higher height and more solid structure .

· We will set up every tent when we finish the production ,Installation video or pictures can be taken and must be sent to the client to check the quality and make payment of balance before delivery.

· Installation manual /drawings can be provided for free if required,

· Accessories can be provided at more favorable prices .

· Frame can be working well for 10-15 years while fabrics for 6-8 years
