Yacht 4mm Stainless Steel AISI304 AISI306 Dee Shackle European Type
Yacht 4mm Stainless Steel AISI304 AISI306 Dee Shackle European Type
Specifications
Brand Name :
seaman
Model Number :
50001
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
200pcs
Price :
negociation
Payment Terms :
T/T
Delivery Time :
15 ~ 25 days
Packaging Details :
Inner bag, Export Carton
Material :
SS304/SS306
Product Name :
Dee Shackle
Size :
4 ～25mm
Surface :
Polished
Application :
Lifting, Marine, outdoor
Color :
Sliver
Technology :
Forging
Description

Boat Yacht Stainless Steel AISI304/AISI306 Dee Shackle European Type

Marine hardware rigging products:
Stainless steel, Galvanized snap hook, quick link, rigging screw, shackle, thimble, eye plate and so on.

Specification:

1. Material: Stainless Steel 304/ 316

2. Size: 4mm - 25mm

3. Load: 80KG - 8000KG

4. Surface: High Polished

5. Safety Factor: 4:1 or 6:1

6. Usage: Lifting, Connecting

7. Packaging: Cartons, Gunny Bags + Pallet

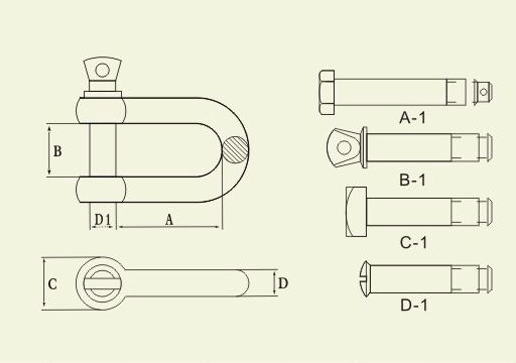

Size Chart:

Yacht 4mm Stainless Steel AISI304 AISI306 Dee Shackle European Type

D mm A mm B mm C mm D1 mm
4 14 8 8 4
5 17 10 10 5
6 21 12 12 6
8 28 16 16 8
10 35 20 20 10
12 42 24 24 12
14 48 24 24 14
16 56 32 32 16
18 63 36 36 18
20 70 40 40 20
22 77 44 44 22
25 87 50 50 25

The SEAMAN hardware line includes durable turnbuckles, spring hooks, thimbles, heavy-duty dee rings (or D rings), standard connectors, shackles, Pad Eye,eye bolt, wire rope and connectors, and slide-on wire parts. All easy-to-use products are available in all sizes to meet any demand.

All Products are Made from high-strength stainless steel 316, the parts are built to hold under maximum tension.


Yacht 4mm Stainless Steel AISI304 AISI306 Dee Shackle European Type
