8 Strand Braided Woven Rope Marine Mooring Hawser Tail Essential Marine Supply
8 Strand Braided Woven Rope Marine Mooring Hawser Tail Essential Marine Supply
8 Strand Braided Woven Rope Marine Mooring Hawser Tail Essential Marine Supply
8 Strand Braided Woven Rope Marine Mooring Hawser Tail Essential Marine Supply
8 Strand Braided Woven Rope Marine Mooring Hawser Tail Essential Marine Supply
8 Strand Braided Woven Rope Marine Mooring Hawser Tail Essential Marine Supply
8 Strand Braided Woven Rope Marine Mooring Hawser Tail Essential Marine Supply
8 Strand Braided Woven Rope Marine Mooring Hawser Tail Essential Marine Supply
8 Strand Braided Woven Rope Marine Mooring Hawser Tail Essential Marine Supply
8 Strand Braided Woven Rope Marine Mooring Hawser Tail Essential Marine Supply
Specifications
Brand Name :
JC MARINETIME
Model Number :
3 / 4 / 8 / 12 STRAND ROPE
Certification :
ISO / CE
Place of Origin :
CHINA
MOQ :
220 Meter
Price :
30 USD Per Meters
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 Meters Per Month
Delivery Time :
5-20 days
Packaging Details :
Pallet Or As Required
Part :
Dock Mooring
Coil length :
220m
Weight and length tolerance :
± 5%
Spliced strength :
±10% lower
U.V.Resistance :
Very Good
Service :
OEM/ODM
Warranty :
12 Months
Material :
polypropylene,Nylon,polyester,PP,PET/PA/PP/PE as request
Color :
white,yellow,blue,black and others as requested,Customers' Requirments
Usage :
mooring hawser,anchor rope,mooring tail,mooring rope,Package/mooring/towing/fishing
Diameter :
4mm-56mm,48,2-160mm (customized),6mm -144mm,24 - 120 mm
Description

8 Strand Braided Woven Rope Marine Mooring Hawser Tail Essential Marine Supply

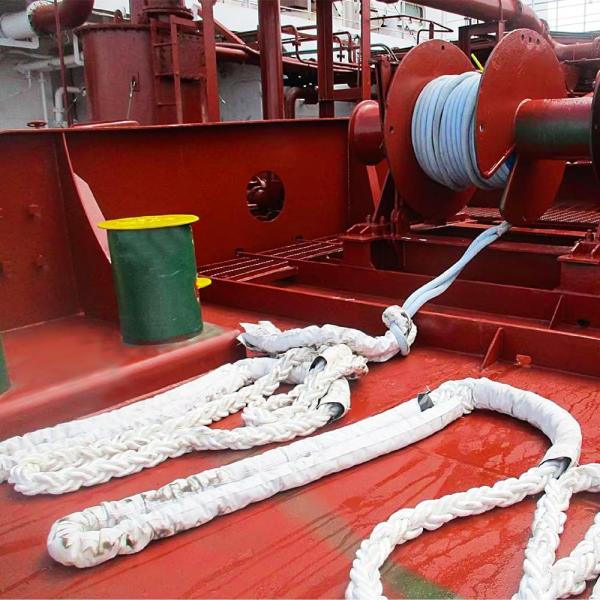

1.PHOTOS

8 Strand Braided Woven Rope Marine Mooring Hawser Tail Essential Marine Supply

2. Main performance

Material Polyamide
Multifilament		 Polyamide
Yarn		 Polypropylene
Multifilament		 Polypropylene Polyester Polypropylene and
Polyester Mixed
Spec.Density 1.14
no floating		 1.14
not floating		 0.91
no floating		 0.91
Floating		 1.27
no floating		 0.95
Floating
Melting Point 215℃ 215℃ 165℃ 165℃ 260℃ 165℃/260℃
Abrasion Resistance Very Good Very Good Medium Medium Good Good
U.V.Resistance Very Good Very Good Medium Medium Good Good
Temperature resistance 120℃max 120℃max 70℃max 70℃max 120℃max 80℃max
Chemical resistance Very Good Very Good Good Good Good Good

3.Technology Comparison

Coil length: 220m

Spliced strength:± 10% lower

Weight and length tolerance:± 5%

MBL=Minimum Breaking Load conform ISO 2307

Other sizes available upon request

8 Strand Braided Woven Rope Marine Mooring Hawser Tail Essential Marine Supply

4.Parameter Table

Specification
规格		 PA Multifilament
锦纶复丝		 PAYarn
锦纶		 PP Multifilament
丙纶长丝		 Polypropylene
丙纶		 Polyester
涤纶		 PET/PP Mixed
丙纶/涤纶混合绳
Dia. Cir Ktex KN Ktex KN Ktex KN Ktex KN Ktex KN Ktex KN
直径 圆 周 线密度 破断强力 线密度 破断强力 线密度 破断强力 线密度 破断强力 线密度 破断强力 线密度 破断强力
4 1/2 10 3.7 10 2.6 6.3 2.3 6 2.1 12 2.9 7.0 2.8
6 3/4 22 7.9 22 6 18 6.5 17 5.9 27 5.6 17.5 6.8
8 1 40 13.8 40 10.9 32 11.4 30 10.4 48 10.0 31 11.9
10 1-1/4 62 21.2 62 15.7 47 16.8 45 15.3 76 15.6 48.5 18.2
12 1-1/2 89 30.1 89 24.1 68 23.9 65 21.7 110 22.3 69.9 25.7
14 1-3/4 121 40.0 121 33.0 95 32.9 90 29.9 148 31.2 95.1 34.7
16 2 158 51.9 158 42.5 121 40.7 115 37.0 195 39.8 124 44.8
18 2-1/4 200 64.3 200 53.9 155 51.9 148 47.2 245 49.8 157 56.1
20 2-1/2 247 79.2 247 66.7 189 62.6 180 56.9 303 62.3 194 68.7
22 2-3/4 299 94.0 299 80.4 231 75.0 220 68.2 367 74.7 235 82.1
24 3 355 112 355 93.6 273 87.7 260 79.7 437 89.6 279 96.3
26 3-1/4 417 129 417 111.5 320 101 305 92.2 512 105 328 113
28 3-1/2 484 149 484 127 373 115 355 105 594 120 380 130
30 3-3/4 555 169 555 143 425 132 405 120 682 134 437 148
32 4 632 192 632 161 483 146 460 132 778 154 497 167
36 4 - 1/ 2 800 240 800 200 614 182 585 166 982 190 629 210
40 5 987 294 987 241 756 221 720 201 1215 235 776 257
44 5-1/2 1190 351 1190 289 924 266 880 242 1468 275 939 308
48 6 1420 412 1420 338 1092 308 1040 280 1750 329 1110 364
52 6-1/2 1670 479 1670 393 1281 357 1220 325 2050 384 1320 424
56 7 1930 550 1930 450 1491 408 1420 371 2380 439 1520 489

Production Process

Step 1: Selection and Pretreatment of Marine-Grade Fiber Raw Materials

High-performance synthetic fibers (typically polyester, nylon, or a polyester-nylon blend—selected for marine durability) are chosen as the base material. These fibers must meet strict standards for tensile strength, saltwater resistance, UV stability, and abrasion tolerance. First, the fiber filaments are unwound from industrial spools and passed through a dust-removal and oil-cleaning system to eliminate contaminants that could weaken the rope or compromise braiding. The filaments are then aligned into uniform fiber bundles to ensure consistent thickness in subsequent steps.

Step 2: Fiber Drawing and Heat-Setting for Enhanced Performance

The cleaned fiber bundles undergo a drawing process, where they are stretched under controlled temperature and tension. This step aligns the fiber molecules, boosting tensile strength and reducing excessive elongation—critical for withstanding the dynamic loads of marine mooring. After drawing, the fibers are heat-set (using hot air or infrared heating) to lock in their structural stability. Heat-setting prevents the rope from shrinking or deforming when exposed to marine temperatures (e.g., hot sun or cold seawater) and enhances resistance to fiber fraying.

Step 3: Preparing 8 Individual Strands for Braiding

The treated fiber bundles are spun into 8 separate, uniform strands using a stranding machine. Each strand is woven (or tightly twisted) to create a cohesive, durable base—this “pre-braiding” of individual strands ensures they hold their shape during the final braiding process. The 8 strands are carefully measured to ensure identical thickness and length, as uneven strands would cause weakness or uneven load distribution in the finished rope. Once formed, the strands are wound onto 8 synchronized bobbins, ready for the main braiding stage.

Step 4: 8-Strand Braided Weaving (Core & Outer Braid Integration)

The 8 strand bobbins are loaded onto a circular braiding machine (specifically calibrated for 8-strand construction). The machine interlaces the 8 strands in a precise, interlocking woven pattern—this braided design is distinct from twisted ropes, as it creates a dense, smooth outer surface and a strong internal structure. For marine mooring hawser tails (which require extra durability), some variants may include a reinforced inner core (woven from the same high-grade fibers) that is integrated with the 8 outer strands during braiding. The braiding speed and tension are closely monitored to ensure the strands are woven tightly but not overly stiff, balancing flexibility and strength.

Step 5: Post-Braiding Treatments (Marine-Specific Protection)

After braiding, the rope undergoes two critical marine-focused treatments:

  • Abrasion-Resistant Coating: A thin, flexible polymer coating (compatible with the base fibers) is applied to the rope’s surface. This coating enhances resistance to friction from dock edges, boat hulls, or metal cleats—common sources of wear in mooring applications.
  • UV and Saltwater Inhibition: The rope is dipped in a UV-stabilizing solution (containing anti-UV additives) and then dried in a controlled environment. This treatment prevents fiber brittleness and color fading from prolonged sun exposure. Additionally, a hydrophobic agent may be added to repel saltwater, reducing water absorption and avoiding weight gain or fiber degradation from salt buildup.

Step 6: Sizing, Cutting, and Quality Inspection

The treated rope is fed through a sizing gauge to ensure it meets the required diameter specifications (critical for compatibility with marine mooring hardware like cleats or winches). It is then cut into standard lengths (e.g., 10m, 20m, 50m) or custom lengths for hawser tails (which are often tailored to vessel size). Each rope undergoes rigorous quality checks:

  • Tensile strength testing (using a load machine to verify it can handle marine mooring loads).
  • Abrasion resistance testing (simulating friction against dock materials).
  • Water absorption testing (ensuring minimal moisture retention).
    Only ropes that pass all marine safety standards proceed to packaging.

Step 7: Marine-Grade Packaging

The finished ropes are wound onto corrosion-resistant metal or high-density plastic spools (to prevent tangling) and wrapped in moisture-proof, UV-protective plastic film. Labels are attached to indicate key specifications: “8-Strand Braided Woven Rope,” “Marine Mooring Hawser Tail,” length, tensile strength, and fiber material. This packaging protects the rope during storage and transportation, ensuring it arrives in ready-to-use condition for marine applications.

2. Application Scope

Primary: Marine Vessel Mooring (Hawser Tail Function)

As a dedicated mooring hawser tail, this rope is used to connect the main mooring hawser (a thicker, heavy-duty line) to a boat’s cleats or bollards. Its 8-strand braided design provides the flexibility needed to wrap around cleats easily, while its high tensile strength handles the dynamic loads of wind, waves, and tides. It is ideal for small to large vessels:

  • Recreational boats (yachts, sailboats) moored at coastal marinas.
  • Commercial vessels (fishing boats, small cargo ships) docked at ports for loading/unloading.
  • Workboats (tugboats, ferries) requiring reliable temporary or long-term mooring.

Secondary: Dock and Marina Infrastructure Securement

In marinas and dock facilities, this rope is used to stabilize floating docks, gangways, or temporary barriers:

  • Securing floating dock sections to fixed pilings, preventing separation during rough water.
  • Tying gangways to docks to keep them stable for passenger/crew access.
  • Creating temporary safety barriers (e.g., around construction zones on docks) to prevent falls or equipment damage.

Emergency Mooring and Towing (Light-Duty)

It serves as a reliable backup mooring line or light-duty towing rope for marine emergencies:

  • Emergency mooring: Securing a vessel to a temporary anchor point (e.g., a buoy or another boat) if the main mooring line fails.
  • Light towing: Pulling small watercraft (dinghies, jet skis) behind larger vessels in calm waters, where its flexibility and strength balance prevent strain on both craft.

Marine Equipment and Cargo Securement

On boat decks, this rope is used to secure equipment and cargo that needs frequent access:

  • Tying down on-deck gear (life rafts, fenders, fishing nets, or small storage containers) to prevent shifting during rough voyages.
  • Securing cargo (e.g., crates of supplies, maintenance tools) on small commercial vessels, where its smooth braided surface avoids damaging cargo packaging.

Recreational Marine Activities (Controlled Settings)

In managed recreational marine environments, it is used for low-risk, controlled tasks:

  • Setting up temporary swimming area markers (tying buoys to anchor weights) in coastal or lake marinas.
  • Securing inflatable water toys (e.g., large floats, water slides) to docks, where its abrasion resistance withstands contact with inflatable materials.
  • Creating safety lines for water sports (e.g., wakeboarding, water skiing) in calm bays, where its flexibility allows for smooth movement.
