Product Description:

Material Advantages:

Manufacturing Process:

The production process strictly adheres to the principle of "fine processing - layered twisting - quality control" and is divided into six steps:
Raw material pretreatment: Softening of stainless steel wire rod
T316 stainless steel wire rod (typically 10-15mm in diameter) is heated in an annealing furnace (approximately 1050°C) to reduce the material's hardness and prepare for subsequent wire drawing. After annealing, it is pickled to remove surface oxide scale and ensure a smooth wire finish. Wire Drawing: Producing Fine Steel Wire

A wire drawing machine gradually draws the softened wire rod thinner and passes it through dies of varying apertures (from large to small) for multiple stretches, ultimately producing fine steel wire that meets specifications (e.g., a single filament in a 1/8" wire rope has a diameter of approximately 0.15mm). Wire drawing oil is applied during this process to reduce friction and cool the dies.

Stranding: Twisting Single Wires into Strands

In structures such as "1x19" and "7x7," a stranding machine spirally twists multiple fine steel wires around a center wire (some structures do not have a center wire) to form the "strands" of the wire rope. The lay pitch (the distance between the strands) is carefully controlled during twisting to ensure uniform tension on each strand.

Rope Closing: Twisting Multiple Strands into Ropes

The twisted strands (e.g., seven strands in a 7x7 structure) are then twisted again around a center strand (or no center strand) using a rope closing machine to form a complete wire rope. This process requires strict compliance with the customer's specified diameter (e.g., 1/8", 3/16", 1/4", etc.) and length (1000mm). FT).
Post-Processing: Improves performance and appearance.
Cleaning: Removes oil and metal debris left over from the rope closing process.
Passivation: Some products undergo passivation treatment to enhance surface corrosion resistance.
Sizing: Slightly stretches the wire rope using a sizing die to calibrate its diameter and ensure dimensional accuracy.
Quality Inspection and Winding

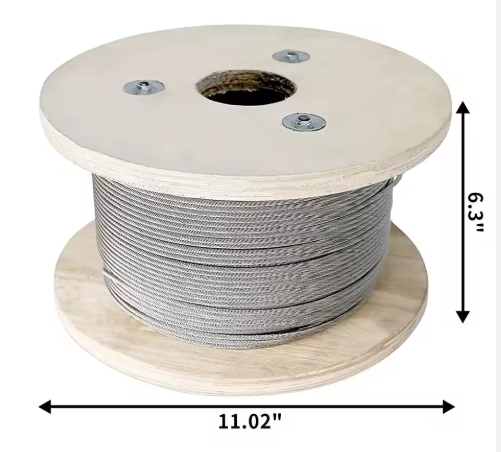

Inspection procedures include: diameter measurement, breaking strength testing (to ensure compliance with aviation-grade strength standards), corrosion resistance testing (salt spray testing), and visual inspection (to ensure there are no broken or loose wires). Once qualified, the rope is wound onto a reel into a standard 1000 FT reel and packaged for shipment.

Features:

Standard:GB/T20118-2017
Construction:Strand
For port loading and unloading andconstruction purposes, for tower cranepurposes.

Small crane steel wire rope with high quality carbon steel wire rod, after FIB lead bath heat treatment and hot dip galvanized integrated production line treatment, high degree of sositization, uniform zinc layer thickness, high steel wire fatigue performance, long service life of steel wire rope, to meet the requirements of small crane working conditions, product characteristics are mainly:

1. High breaking force, high safety factor of equipment
2. Good corrosion resistance, not easy to rust
3. High fatigue life, good use of wire rope
4. Multi-strand rope has excellent anti-rotation performance

Technical Parameters:

Material: SS316L stainless steel wire rope
Wire diameter: 12 mm
Construction: 7x7
Finish: Galvanized/Stainless steel body finish (optional)
Maximum working load (WLL): 3 ounces (3 tons) or 4 tons, specified by model
Terminal type: 14 mm terminal (example), customizable
Non-rotating design: Yes/optional
Temperature range: -40°C to 120°C (depending on material and coating)
Certifications/standards: EN, ISO, ABS, etc., listed where applicable

Applications:

1. Outdoor and Marine Applications (Core Advantage: Seawater/Weather Resistance)
Saltwater Applications: Suitable for securing marine aquaculture cages, yacht/sailboat rigging (such as anchor ropes and sails), and offshore platform guardrails, offering long-term resistance to seawater corrosion and preventing rust and breakage.
Outdoor Engineering Applications: Suitable for securing outdoor billboards, supporting large awnings, and guardrails for elevated walkways in parks and scenic areas. Resistant to rain and UV damage, it reduces maintenance requirements.
2. Industrial and Machinery Applications (Core Advantage: High Strength/Multiple Structures)
General Industrial Applications: The 7x19 structure can be used as a towing rope for lifting equipment (such as small cranes) and a transmission cable for production lines. The 1x19 structure is suitable for fixing cables for machine tools and for workshop protective net frames, ensuring both strength and stability.
Aerospace Auxiliary Applications: Complying with aviation-grade standards, it can be used as a safety rope for aircraft maintenance platforms and a connecting cable for aviation ground equipment (such as boarding ladders), meeting high precision and safety requirements. III. Residential and Home Use (Core Advantages: Easy Maintenance / Multiple Sizes)
Home Living: 1/8" or 3/16" sizes can be used as balcony clothes drying rack wire ropes and indoor ceiling slings (e.g., chandeliers and plant racks). The 7x7 structure, due to its moderate flexibility, can also be used to support pet fences.
DIY and Decorative Use: It can be used to craft large decorative painting frames and garden climbing trellis leashes. The natural stainless steel color complements a variety of decor styles and requires no frequent replacement.

Support and Services:

Customization: Many suppliers offer customized services tailored to customer needs. These services include designing and manufacturing products to desired sizes and specifications, and customizing logos to meet diverse customer needs.

Technical Support: Suppliers have professional teams that offer pre-purchase technical consultation, helping customers select the appropriate wire rope specifications and structure based on their specific needs. They also provide technical guidance and resolve technical issues encountered during use.

Start your worry-free choice for your maritime business with our marine steel wire ropes. Our ropes feature advanced craftsmanship and excellent quality, capable of withstanding rigorous tests. Coupled with professional technical support and considerate after-sales service, we will provide solid guarantees for your business throughout the whole process.

Any question please let us know ,our JinCheng maritime will provide you the best service with 7*24 hours ~
