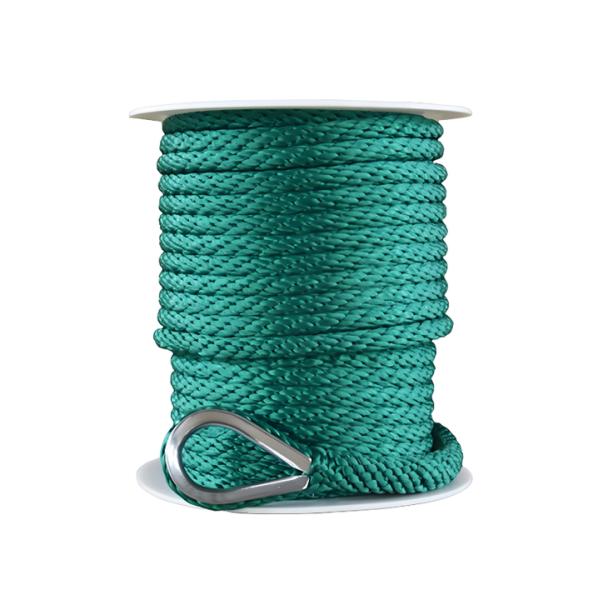

12 Strand Rope Nylon Polyester Anchor Marine Rope
1. General Description
QINGDAO JINCHENG MARITIME has serial products including varieties of nylon, polypropylene filament, polypropylene, polypropylene polyester mixed, polyester.Imported Germany technology, the products have advantages of reasonable braided structure, scientific technology, high strength, low elongation, wearing resistance, anti -corrosion and simple operation. the products are mainly used in fields of shipbuilding, ocean transportation, national defense and
military industry, sea petroleum and harbor operation.

2.Main performance
Material 材料 | Polyamide Multifilament 锦纶复丝 | Polyamide Yarn 锦纶线 | Polypropylene Multifilament 丙纶长丝 | Polypropylene 丙纶 | Polyester 涤纶 | Polypropylene and Polyester Mixed 涤纶丙纶混合 |
Spec.Density 比重 | 1.14 no floating | 1.14 not floating | 0.91 no floating | 0.91 Floating | 1.27 no floating | 0.95 Floating |
Melting Point 熔点 | 215℃ | 215℃ | 165℃ | 165℃ | 260℃ | 165℃/260℃ |
Abrasion Resistance 耐磨性 | Very Good | Very Good | Medium | Medium | Good | Good |
U.V.Resistance 防紫外线 | Very Good | Very Good | Medium | Medium | Good | Good |
Temperature resistance 使用环境 | 120℃max | 120℃max | 70℃max | 70℃max | 120℃max | 80℃max |
Chemical resistance 耐化学腐蚀性 | Very Good | Very Good | Good | Good | Good | Good |
3.Technology Comparison
Coil length: 220m
Spliced strength:± 10% lower
Weight and length tolerance:± 5%
MBL=Minimum Breaking Load conform ISO 2307
Other sizes available upon request

4.Parameter Table
Specification 规格 | PA Multifilament 锦纶复丝 | PAYarn 锦纶 | PPMultifilament 丙纶长丝 | Polypropylene 丙纶 | Polyester 涤纶 | PET/PP Mixed 丙纶/涤纶混合绳 |
| Dia. | Cir | Ktex | KN | Ktex | KN | Ktex | KN | Ktex | KN | Ktex | KN | Ktex | KN |
| 直径 | 圆 周 | 线密度 | 破断强力 | 线密度 | 破断强力 | 线密度 | 破断强力 | 线密度 | 破断强力 | 线密度 | 破断强力 | 线密度 | 破断强力 |
| 20 | 2-1/2 | 247 | 81 | 247 | 70 | 189 | 64 | 180 | 58 | 303 | 64 | 194 | 70 |
| 24 | 3 | 355 | 114 | 355 | 101 | 273 | 89 | 260 | 81 | 437 | 91 | 279 | 98 |
| 28 | 3-1/2 | 484 | 152 | 484 | 133 | 373 | 118 | 355 | 107 | 594 | 122 | 380 | 133 |
| 32 | 4 | 632 | 196 | 632 | 169 | 483 | 148 | 460 | 135 | 778 | 157 | 497 | 170 |
| 36 | 4-1/2 | 800 | 245 | 800 | 210 | 614 | 186 | 585 | 169 | 982 | 194 | 629 | 214 |
| 40 | 5 | 987 | 300 | 987 | 253 | 756 | 226 | 720 | 205 | 1215 | 240 | 776 | 262 |
| 44 | 5-1/2 | 1190 | 358 | 1190 | 303 | 924 | 271 | 880 | 246 | 1468 | 285 | 939 | 314 |
| 48 | 6 | 1420 | 420 | 1420 | 355 | 1092 | 315 | 1040 | 286 | 1750 | 336 | 1110 | 371 |
| 52 | 6-1/2 | 1670 | 489 | 1670 | 413 | 1281 | 364 | 1220 | 331 | 2050 | 392 | 1320 | 432 |
| 56 | 7 | 1930 | 561 | 1930 | 473 | 1491 | 416 | 1420 | 378 | 2380 | 448 | 1520 | 499 |
| 60 | 7-1/2 | 2220 | 640 | 2220 | 539 | 1721 | 476 | 1630 | 433 | 2730 | 499 | 1750 | 569 |
| 64 | 8 | 2530 | 723 | 2530 | 603 | 1943 | 539 | 1850 | 490 | 3110 | 579 | 1990 | 644 |
| 72 | 9 | 3200 | 905 | 3200 | 759 | 2457 | 676 | 2340 | 615 | 3930 | 721 | 2520 | 805 |
| 80 | 10 | 3950 | 1102 | 3950 | 928 | 3045 | 832 | 2900 | 756 | 4850 | 884 | 3110 | 982 |
| 88 | 11 | 4780 | 1326 | 4780 | 1106 | 3686 | 998 | 3510 | 907 | 5870 | 1061 | 3750 | 1183 |
| 96 | 12 | 5690 | 1561 | 5690 | 1301 | 4379 | 1178 | 4170 | 1071 | 6990 | 1255 | 4470 | 1397 |
| 104 | 13 | 6670 | 1816 | 6670 | 1556 | 5145 | 1351 | 4900 | 1228 | 8220 | 1448 | 5260 | 1622 |
| 112 | 14 | 7740 | 2091 | 7740 | 1775 | 5985 | 1560 | 5700 | 1418 | 9500 | 1652 | 6050 | 1877 |
| 120 | 15 | 8880 | 2387 | 8880 | 2027 | 6B25 | 1791 | 6500 | 1628 | 10900 | 1902 | 6980 | 2142 |
| 128 | 16 | 10110 | 2703 | 10100 | 2296 | 7770 | 2022 | 7400 | 1838 | 12400 | 2152 | 7950 | 2417 |
| 136 | 17 | 11400 | 3040 | 11400 | 2584 | 8820 | 2276 | 8400 | 2069 | 14000 | 2448 | 8950 | 2713 |
| 144 | 18 | 12800 | 3386 | 12800 | 2889 | 9780 | 2540 | 9400 | 2309 | 15700 | 2703 | 10100 | 3029 |
| 160 | 20 | 15800 | 4141 | 15800 | 3565 | 12100 | 3112 | 11521 | 2829 | 19400 | 3335 | 12500 | 3703 |
- High Tensile Strength with Even Load Distribution: The 12-strand structure optimizes the natural strength of nylon, allowing the rope to bear heavy static and dynamic loads. Each strand works in tandem to spread tension uniformly across the entire rope, minimizing stress concentration on single strands and reducing the risk of sudden breakage—making it reliable for tasks requiring consistent load support.
- Excellent Elasticity for Shock Absorption: Nylon’s inherent elasticity is enhanced by the 12-strand design, enabling the rope to stretch up to a certain extent under sudden force (such as impact or load shifts) and recoil without permanent deformation. This property effectively cushions shocks, protecting both the rope itself and the connected objects or equipment from damage caused by abrupt tension.
- Strong Resistance to Moisture and Chemicals: 12-strand nylon rope repels moisture well, avoiding excessive water absorption that could add weight, cause mildew, or weaken the fibers. It also exhibits good resistance to common chemicals (e.g., mild detergents, certain industrial cleaners) and does not degrade easily when exposed to damp environments, ensuring long-term performance in wet or humid conditions.

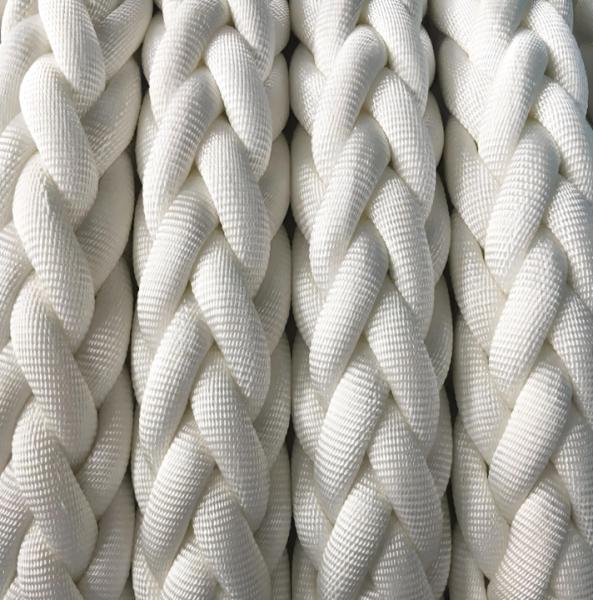

- Abrasion Resistance for Durability: The tightly twisted 12 strands form a dense, smooth outer surface that stands up to friction against rough surfaces (such as concrete, metal, or natural terrain). Unlike ropes with fewer strands, it resists fraying, strand separation, and surface wear even after repeated contact with abrasive materials, extending its service life in high-wear applications.
- Flexibility for Easy Handling and Tying: Despite its strength, the 12-strand nylon rope remains highly flexible, making it easy to handle, knot, and adjust. It bends smoothly without becoming stiff or rigid, even in cooler temperatures, which simplifies tasks like securing items, creating lashings, or rigging—ideal for both professional and recreational users who need maneuverable rope.
- Outdoor and Camping Gear Securement: Used to secure tents, tarps, sleeping bags, and backpacks during camping, hiking, or backpacking trips. Its flexibility allows for easy knotting around trees, poles, or camping gear, while moisture resistance prevents mildew growth even in rainy or dewy conditions. The strength ensures gear stays stable in windy weather.
- Light-Duty Towing and Hauling: Suitable for towing small vehicles (e.g., ATVs, lawnmowers) over short distances or hauling lightweight items (e.g., camping supplies, tools) in yards, farms, or construction sites. Its shock absorption protects the towed/hauled items from jolts, and its durability withstands occasional contact with rough surfaces.
- Recreational Water Activities: Ideal for water-based hobbies like kayaking, canoeing, or paddleboarding—used to tie vessels to docks, secure gear (e.g., life jackets, dry bags) on board, or create temporary buoy lines. Its moisture resistance prevents rotting in freshwater, and its flexibility makes it easy to handle even when wet.
- Home and Garden Uses: Applied in home and garden tasks such as tying up climbing plants (e.g., tomatoes, vines) to trellises, securing outdoor furniture (e.g., patio chairs, umbrellas) against wind, or bundling branches and yard waste for disposal. Its flexibility avoids damaging plant stems, and its strength keeps items secure.
- Light Industrial and Warehouse Tasks: Used in light industrial settings or warehouses for securing small packages, organizing tools, or creating temporary barriers. Its chemical resistance stands up to occasional exposure to mild cleaning agents, and its even load distribution ensures packages stay stable during storage or short-distance transport.
