Material and Manufacturing:

I. Material Characteristics
The core material is high-strength carbon steel or low-alloy structural steel (such as Q235, Q345 series). Stainless steel (316L) can be used in some key parts to enhance corrosion resistance.

Yield strength ≥ 345MPa, tensile strength ≥ 510MPa, meeting the mechanical requirements of a 10T rated load.

The material undergoes rust removal, phosphating, and anti-corrosion coating treatment, is resistant to salt spray and moisture, and is suitable for harsh marine environments.

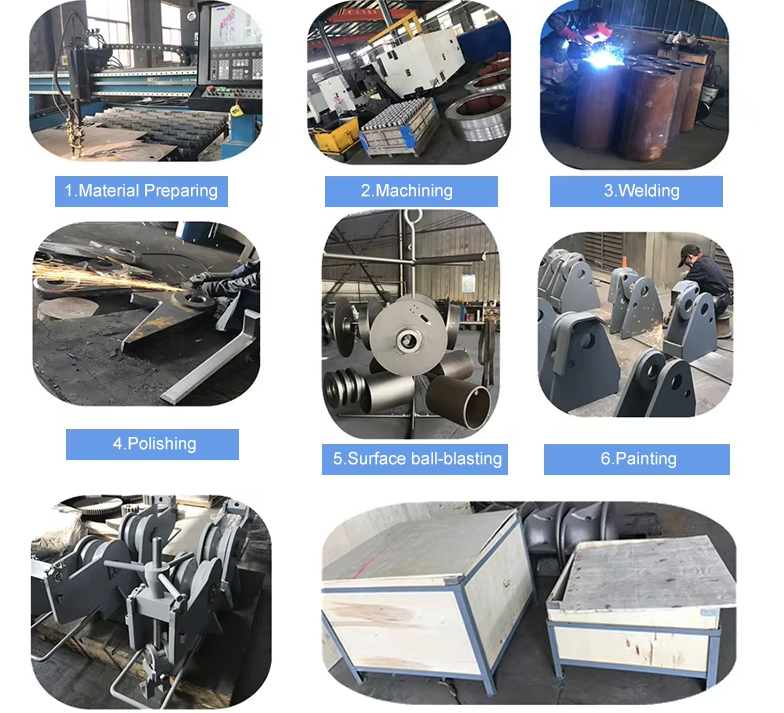

II. Production Process

Raw Material Cutting: Steel plates and round bars are cut according to design drawings to ensure cutting accuracy.

Forging/Welding Forming: The main body uses forging technology to increase density (or steel plate rolling and welding). The base and column are welded and then subjected to flaw detection.

Heat Treatment: Normalizing and tempering eliminate welding stress and improve structural stability.

Machining: The top mooring groove and bottom mounting holes are precision machined to ensure assembly accuracy.

Surface Treatment: Sandblasting for rust removal → applying anti-rust primer → applying marine-grade topcoat (such as chlorinated rubber paint). Load test: Simulate a 10T tensile test to verify the load-bearing capacity and issue a qualified report.

Features:

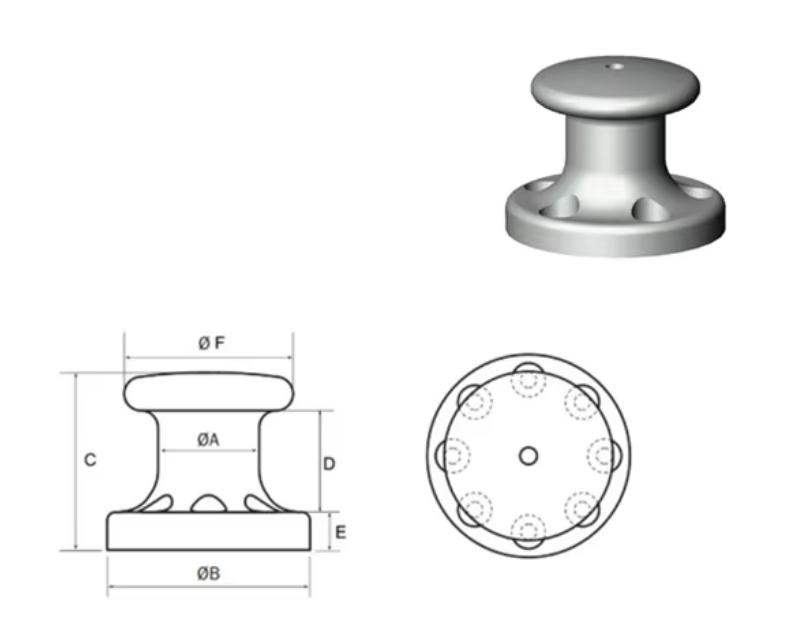

Compact Structure: The column height is moderate, and the base size is adapted to the installation space on the ship's deck, without occupying excessive area.

Stable Load-Bearing Capacity: The bottom uses a thickened flange and multiple sets of bolts for strong resistance to overturning and slippage.

Weather-Resistant and Durable: The anti-corrosion coating thickness is ≥150μm, capable of withstanding marine salt spray and wave impact, with a service life of ≥15 years.

Easy Operation: The top mooring groove is smooth and burr-free, facilitating cable winding and securing, and reducing rope wear.

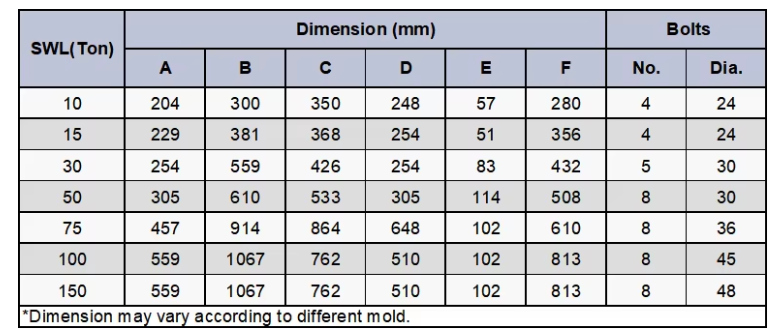

Technical Parameters:

Application Scenarios:

Its core applications include various types of vessels: bulk carriers, container ships, tankers, ferries, fishing boats, etc., used to secure mooring lines when the vessel is berthed.

Port and wharf facilities: Serving as fixed anchor points for mooring vessels at wharves, pontoons, floating docks, etc.

Marine engineering: Used for securing equipment or mooring vessels on offshore platforms, drilling platforms, wind turbine installation vessels, etc.

Inland waterway transportation: Suitable for mooring needs in inland waterway vessels and port pontoons, adaptable to freshwater and humid environments.

Support and Services:

After-Sales Service and Maintenance
Maintenance Plans and Recommendations
Schedules and key points for regular inspections, coating maintenance, and fatigue assessments are provided for different environments.
Spare Parts and Replacement Services
Provide quick-replacement parts lists, spare parts inventory recommendations, and emergency supply channels.
Technical Support and Training
Provide operational training, test method training, and technical Q&A channels for on-site personnel and maintenance teams.
Quality and Performance Tracking
Long-term performance data collection, regular follow-up visits, and improvement recommendations ensure compliance with maritime service life expectations.


In addition, we offer a range of services to complement our mooring bollards products. These include custom design and engineering, installation and commissioning, and repairs and upgrades. Our goal is to provide a comprehensive solution to meet your mooring needs, from product selection to ongoing support.
