High Holding Power AC-14 Marine Anchor with ABS CCS BV LR DNV Certificate and 50-10000kg Capacity
High Holding Power AC-14 Marine Anchor with ABS CCS BV LR DNV Certificate and 50-10000kg Capacity
High Holding Power AC-14 Marine Anchor with ABS CCS BV LR DNV Certificate and 50-10000kg Capacity
High Holding Power AC-14 Marine Anchor with ABS CCS BV LR DNV Certificate and 50-10000kg Capacity
High Holding Power AC-14 Marine Anchor with ABS CCS BV LR DNV Certificate and 50-10000kg Capacity
High Holding Power AC-14 Marine Anchor with ABS CCS BV LR DNV Certificate and 50-10000kg Capacity
High Holding Power AC-14 Marine Anchor with ABS CCS BV LR DNV Certificate and 50-10000kg Capacity
High Holding Power AC-14 Marine Anchor with ABS CCS BV LR DNV Certificate and 50-10000kg Capacity
Specifications
Material :
High - Strength Alloy Steel/Stainless Steel/Carbon Steel
Model Number :
Admiralty Anchor
Certificate :
ABS,BV,DNVGL,KR,LR,NK,RINA,CCS,PRS,IRS,RS,CRS Certificated
MOQ :
1PCS
Delivery Time :
10-45 Days
Port Of Loading :
Qingdao, China
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Color :
Black/Red/Yellow Or Customer Demand
Place of Origin :
China
Supply Ability :
15000 Metric Ton/Metric Tons Per Year
Surface Finishing :
Polished,Spray Paint,Galvanized
Certification :
CCS.ABS.LRS.BV.GL.DNV.NK.RMRS
Design :
Simple And Sturdy
Price :
USD 800~1200 PER PIECE
Product Name :
Size 50-10000kg CJD-14 HHP Anchor High Holding Power Marine Anchor
Brand Name :
JC Maritime
Packaging Details :
1. Bare packed: packed in bundles 2. Packed in iron drums then on pallets 3. Packed in woodencase 4. Required by cllent shipping
Description
Supply AC-14 HHP Stockless Anchor Marine Ship Anchor with ABS CCS BV LR DNV Certificate for Vessel Mooring
Product Overview

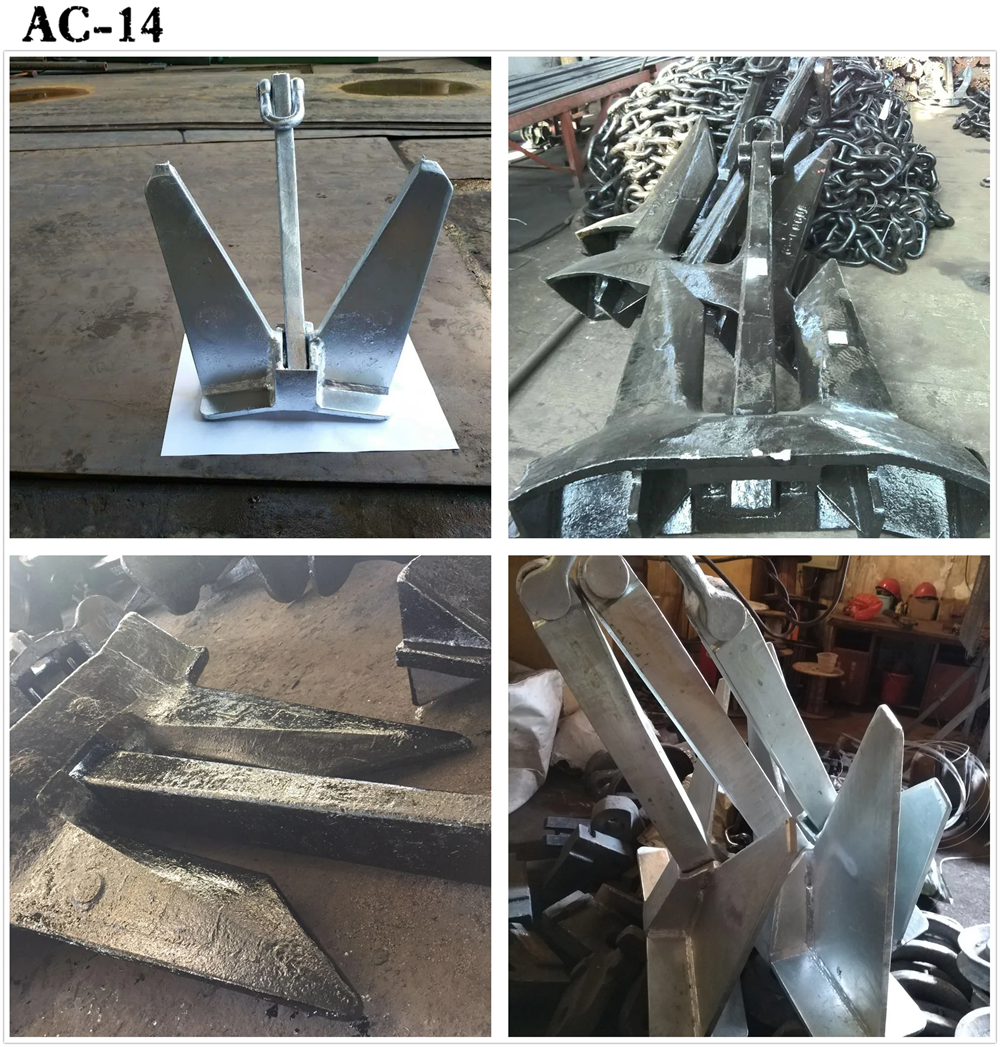

Black Bitument Paint AC-14 Anchor for Marine Vessels and Boats Ship Building Ports

The AC-14 anchor is a high-performance stockless anchor designed as the second-generation poleless anchor. Manufactured from ZG200-400 cast steel with surface treatments including black paint coating or hot-dip galvanizing to prevent rust and enhance corrosion resistance in marine environments.

Certifications Available:
DNV-GL BV ABS LRS RINA IRS RS CCS KR NK
Material Advantages
Stable Pulling Force

Reliable performance on regular seabeds (sand, mud), meeting daily anchoring needs of merchant ships with high cost-effectiveness.

Easy Operation

Cross-bar free design simplifies retraction, storage and reassembly, reducing crew operational intensity and improving work efficiency.

Low Maintenance Cost

Sturdy cast steel structure with adequate surface protection requires only regular inspection of accessories and surface coatings.

High Holding Power AC-14 Marine Anchor with ABS CCS BV LR DNV Certificate and 50-10000kg Capacity
Manufacturing Process

Our Admiralty Anchors adhere strictly to marine anchor casting standards and offshore mooring equipment strength requirements, focusing on structural precision, material strength and toughness, and corrosion resistance compliance.

  • Raw Material Preparation: High-strength cast steel (ZG230-450) or premium marine carbon steel blended to chemical composition standards
  • Monolithic Casting: Gravity casting at 1500-1600°C ensures uniform filling without dead zones or porosity
  • Structural Reinforcement: Critical load-bearing areas undergo forging reinforcement; claw edges ground for sharpness and seabed gripping efficiency
  • Surface Anti-Corrosion: Sandblasting to Sa2.5 standard followed by dual-layer coating or hot-dip galvanizing
  • Quality Control: Comprehensive testing including tensile strength (≥400MPa), impact toughness, and simulated holding force tests
  • Packaging: Secure packaging on wooden pallets or steel frames with moisture-proof film protection
Key Features
  • Structural Design: Wide anchor head, thick long anchor claws with longitudinal edges for excellent stability and grip
  • High Grip Force: Grip coefficient around 14, withstands tensile force 15 times its own weight
  • Light Weight: 25% weight reduction compared to traditional anchors saves ship space and reduces vessel weight
  • Wide Applicability: Suitable for mud, soil, sand, and sandstone seabeds
  • Quick Deployment: Efficient anchoring and unanchoring improves vessel operational efficiency

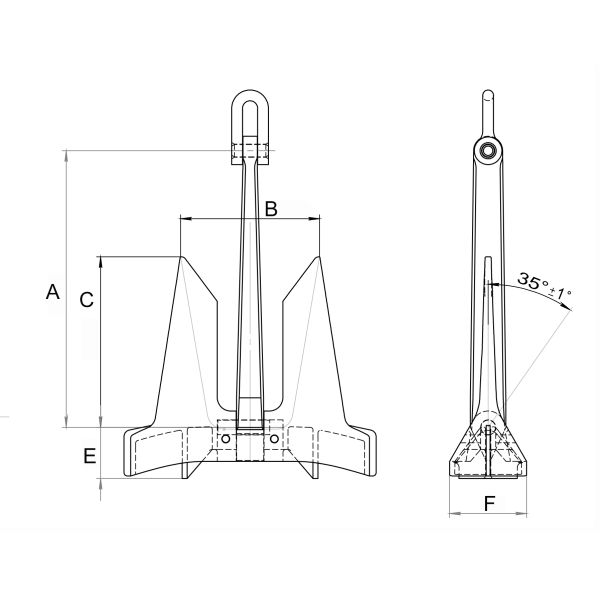

Technical Parameters
High Holding Power AC-14 Marine Anchor with ABS CCS BV LR DNV Certificate and 50-10000kg Capacity
Applications

Typically used as bow anchor and employed as main anchor by large container ships, cargo transport ships, and large oil tankers.

High Holding Power AC-14 Marine Anchor with ABS CCS BV LR DNV Certificate and 50-10000kg Capacity
Support and Services

24/7 Customer Service: Available for specification selection, usage methods, and maintenance guidance.

Quality Assurance: Backed by decades of marine hardware manufacturing expertise with rigorous testing including load-bearing tests, corrosion resistance tests, and seabed simulation trials.

Customization: Available for size, material, and surface treatment to meet unique vessel and marine project requirements.

High Holding Power AC-14 Marine Anchor with ABS CCS BV LR DNV Certificate and 50-10000kg Capacity

Trust our Marine Anchor to secure your vessel with uncompromising strength and stability, even in the most challenging marine conditions.

Any questions? Contact JinCheng Maritime for premium service available 24/7.
