High Holding Power Spek Anchor ABS CCS BV LR DNV Certified Sturdy Cast Steel Marine Ship Anchor
High Holding Power Spek Anchor ABS CCS BV LR DNV Certified Sturdy Cast Steel Marine Ship Anchor
High Holding Power Spek Anchor ABS CCS BV LR DNV Certified Sturdy Cast Steel Marine Ship Anchor
High Holding Power Spek Anchor ABS CCS BV LR DNV Certified Sturdy Cast Steel Marine Ship Anchor
High Holding Power Spek Anchor ABS CCS BV LR DNV Certified Sturdy Cast Steel Marine Ship Anchor
High Holding Power Spek Anchor ABS CCS BV LR DNV Certified Sturdy Cast Steel Marine Ship Anchor
High Holding Power Spek Anchor ABS CCS BV LR DNV Certified Sturdy Cast Steel Marine Ship Anchor
High Holding Power Spek Anchor ABS CCS BV LR DNV Certified Sturdy Cast Steel Marine Ship Anchor
Specifications
Model Number :
Admiralty Anchor
Port Of Loading :
Qingdao, China
Certification :
CCS.ABS.LRS.BV.GL.DNV.NK.RMRS
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Material :
High - Strength Alloy Steel/Stainless Steel/Carbon Steel
Certificate :
ABS,BV,DNVGL,KR,LR,NK,RINA,CCS,PRS,IRS,RS,CRS Certificated
Price :
USD 800~1200 PER PIECE
Surface Finishing :
Polished,Spray Paint,Galvanized
Supply Ability :
15000 Metric Ton/Metric Tons Per Year
Product Name :
High Quality Factory Price Spek Anchor Marine Ship Anchor
MOQ :
1PCS
Delivery Time :
10-45 Days
Design :
Simple And Sturdy
Color :
Black/Red/Yellow Or Customer Demand
Packaging Details :
1. Bare packed: packed in bundles 2. Packed in iron drums then on pallets 3. Packed in woodencase 4. Required by cllent shipping
Brand Name :
JC Maritime
Place of Origin :
China
Description
Factory Supply SPEK High Holding Power Anchor Cast Steel Marine Ship Anchor
Product Overview

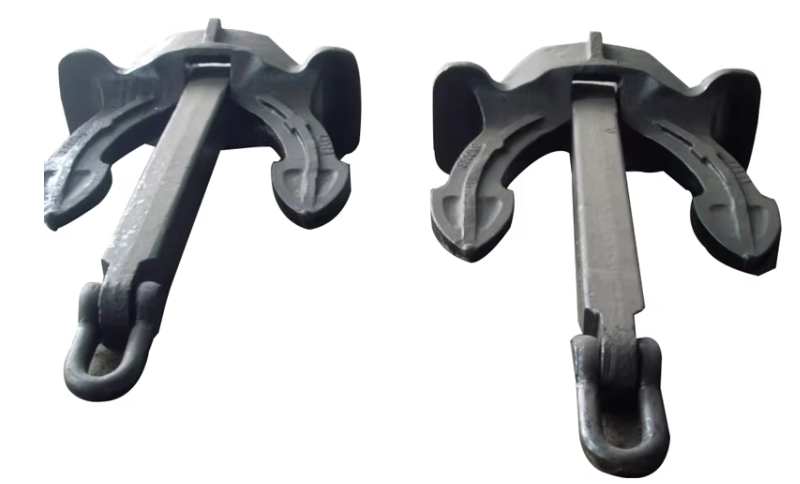

The Spek anchor is the mainstream type of stockless anchor featuring sturdy structure, convenient operation, reliable grip, and strong adaptability. Widely used in merchant ships, engineering vessels, cruise ships, and yachts, it is suitable for various seabeds including sand, mud, and gravel. Available in Type 95, Type SR, and Type M models covering weight requirements from 40kg to 26,000kg.

Key Material Advantages
  • Stable Pulling Force: Reliable performance on regular seabeds (sand, mud) meeting daily anchoring needs with high cost-effectiveness
  • Easy Operation: Cross-bar free design simplifies retraction, storage and reassembly processes
  • Low Maintenance Cost: Durable cast steel structure with adequate surface protection treatment
High Holding Power Spek Anchor ABS CCS BV LR DNV Certified Sturdy Cast Steel Marine Ship Anchor

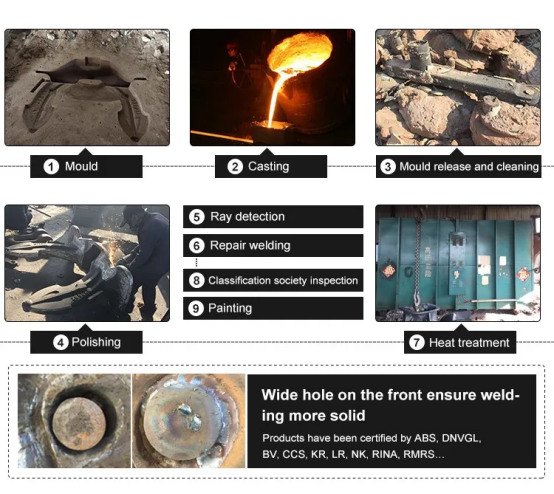

Manufacturing Process

Production follows CB/T 711-1995 standards and classification society requirements through comprehensive manufacturing stages:

  • Raw Material Preparation: Selection of ZG200-400C, Q235 shipbuilding cast/forged steel with spectral analysis and mechanical property testing
  • Forming Process: Casting (mainstream for large specifications) or forging (high-strength requirements) with controlled temperature and composition
  • Heat Treatment: Normalizing at 880-920°C, optional quenching, and tempering at 550-650°C for optimal performance
  • Finishing & Size Control: CNC machining with ±1-±3mm tolerance, three-coordinate measurement verification
  • Surface Treatment: Sandblasting followed by hot-dip galvanizing (≥85μm) or multi-layer coating system (≥200μm)
  • Assembly & Testing: Comprehensive safety verification and quality control
High Holding Power Spek Anchor ABS CCS BV LR DNV Certified Sturdy Cast Steel Marine Ship Anchor
Product Features
Structural & Anchoring Strength
  • Improved center of gravity and anchor crown design with strengthened ribs
  • Gripping ratio of 3-5, superior to traditional Hall anchors
  • Quick soil penetration with optimized anchor claw angles
  • Cast/forged one-piece structure with balanced tensile strength and toughness
Operation & Safety
  • Easy deployment and retrieval, compatible with anchor chain tubes
  • Zero damage to hull with natural flip-up retrieval
  • Stockless design saves deck space
  • 30%+ increase in operational efficiency
Durability & Lifecycle
  • High-quality ship-certified materials with defect elimination
  • 15-20 year lifespan in saltwater environments
  • Low maintenance costs with long intervals
Compliance & Compatibility
  • Global classification society certification (ABS, LR, DNV, CCS, BV, etc.)
  • Meets SOLAS and CB/T 711-1995 standards
  • Full specification compatibility from 40kg to 26,000kg
Technical Parameters
High Holding Power Spek Anchor ABS CCS BV LR DNV Certified Sturdy Cast Steel Marine Ship Anchor High Holding Power Spek Anchor ABS CCS BV LR DNV Certified Sturdy Cast Steel Marine Ship Anchor
Applications
  • Commercial Shipping: Bow anchors for bulk carriers, container ships, and oil tankers
  • Cruise Ships & Luxury Yachts: Type SR models with low center of gravity and damage prevention
  • Engineering Vessels: Positioning anchors for dredgers, cranes, and platform supply ships
  • Fishing & Small Vessels: Main anchors with compact storage design
  • Marine Facilities: Permanent mooring for buoys, lighthouse ships, and offshore platforms
Selection Guidance

Match anchor weight with ship's deadweight tonnage and anchor chain specification following classification society norms. Type 95 preferred for sandy/mud-bottom seabeds; Type SR recommended for complex sea conditions or large ships.

High Holding Power Spek Anchor ABS CCS BV LR DNV Certified Sturdy Cast Steel Marine Ship Anchor
Support & Services

24/7 customer service for specification selection, usage methods, and maintenance guidance. Backed by decades of marine hardware manufacturing expertise with rigorous quality testing including load-bearing, corrosion resistance, and seabed simulation trials.

Customization services available for size, material, and surface treatment to meet unique vessel requirements. Complete quality certificates and test reports provided with all orders.

High Holding Power Spek Anchor ABS CCS BV LR DNV Certified Sturdy Cast Steel Marine Ship Anchor
Contact Us

We can customize anchor specifications according to your vessel's unique requirements. Contact us today for detailed technical drawings and quotation!

Any questions? Our JinCheng Maritime team provides premium service 24/7.
