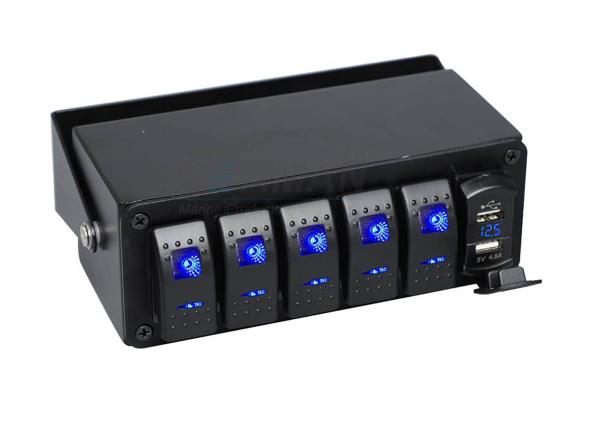

12v Waterproof Marine Switch Panel With Breakers 5 Gang Rocker Switch Box
12v Waterproof Marine Switch Panel With Breakers 5 Gang Rocker Switch Box
Specifications
Brand Name :
OEM
Model Number :
SMAL5
Certification :
CE
Place of Origin :
China
MOQ :
20 sets
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000sets per month
Delivery Time :
5-7 work days
Packaging Details :
poly bag + carton
Product name :
5-Gang Rocker Switch Box with Dual USB Charger Voltmeter
Material :
ABS+PC+Aluminum
Max. Voltage: :
12/24V DC
Max. Current :
10A\20A
Mechanical Life :
10000cycles
Waterproof level :
IP65
Operating Temperature :
-13℉~176℉/ -25 ℃ ~ 80 ℃
Rocker Switch :
5 rocker switches with Dual USB Charger Voltmeter
Lamp color :
Red/ blue/green
application :
cars, utvs,atvs, trucks, trailers, rvs, caravans, buses, marine boats, yachts etc.
Description

5-Gang Rocker Switch Box with Dual USB Charger Voltmeter for Car Marine Boat RV Vehicle Truck Yacht ATV Campers

Product Description

  • Surface Mount Box Now with surface mount enclosure. This allows it to be mounted either on the dash board, under dashboard, or middle console. Application is endless. It's made of powder coated metal box with bracket that can rotate 360 degrees. This gives it more flexibility for different mount locations. Box dimensions are 2.677” x 3.0” x 7.087”
  • 4.8 Amps at 5 VDCThis USB charger is installed and wired to the panel assembly can charge two devices simultaneously at fast speed. Built in safety to protect your devices from overcharging, excessive heat and current. Made of heat-resistant, Certified by CE & UL2089 with Over-load, Over-current and Short Circuit Protection to ensure charging safety, meanwhile, built-in Smart IC ensures the circuit won't be burnt out if wrong wiring.
  • Super Fast USB Charger 4.8 AMPS FAST DUAL USB CHARGE: It has 12-24 DCV input and power outlets are 2.4A each port (4.8A total) for fast charging. Amps is a measurement how fast electricity is moving. The bigger the amperage equals to faster charging. This makes this charger 40% faster than conventional chargers. With the rubber cover on, USB charger is rated at IP65
  • LED Voltage Display built in digital LED voltage monitor, dispalys the real-time accurate voltage status of your vehicle's battery for preventing problems caused by low voltage, the light also makes quick and easy to find USB ports in the dark or at night
  • 5 Gang Rocker Switches Panel This 5 switches are rated at 10000 on and off cycles without failure. Splash-proof panel face, water resistance caps and anti-seepage rubber ring .Blue LED light indicator, waterproof board. Each switch is rated at IP65

​

Specifications:

Feather Material ABS+PC+Aluminum
Installation Pre-wired
Switches Available 5-Gang On Off Rocker Switch with Dual USB Charger Voltmeter
Loop Circuit ON-OFF
Rating

DC 12V 20A,24V 10A
waterproof: IP65
LED light RED OR BLUE OR GREEN
Operating Temperature -25 degree to 80 degree
Electrical Life 10000 make and break cycles at full load
Dimensions (Width)180mmx(Height)76mmx(Depth)68mm
warranty Provide 1 year manufacturer warranty
