24v Waterproof Marine Switch Panel Rocker 6 Gang 5 Pin On Off 2 LED Blue Light
24v Waterproof Marine Switch Panel Rocker 6 Gang 5 Pin On Off 2 LED Blue Light
Specifications
Brand Name :
OEM
Model Number :
SMPN5
Certification :
CE
Place of Origin :
China
MOQ :
20 sets
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000sets per month
Delivery Time :
5-7 work days
Packaging Details :
poly bag + carton
Product name :
Waterproof 6 Gang Marine Boat Rocker Switch Aluminum Panel
Material :
ABS+PC+Aluminum
Max. Voltage: :
12/24V DC
Max. Current :
10A\20A
Mechanical Life :
10000cycles
Waterproof level :
IP65
Operating Temperature :
-13℉~176℉/ -25 ℃ ~ 80 ℃
Rocker Switch :
6 rocker switches
Lamp color :
Red/ blue/green
application :
cars, utvs,atvs, trucks, trailers, rvs, caravans, buses, marine boats, yachts etc.
Description

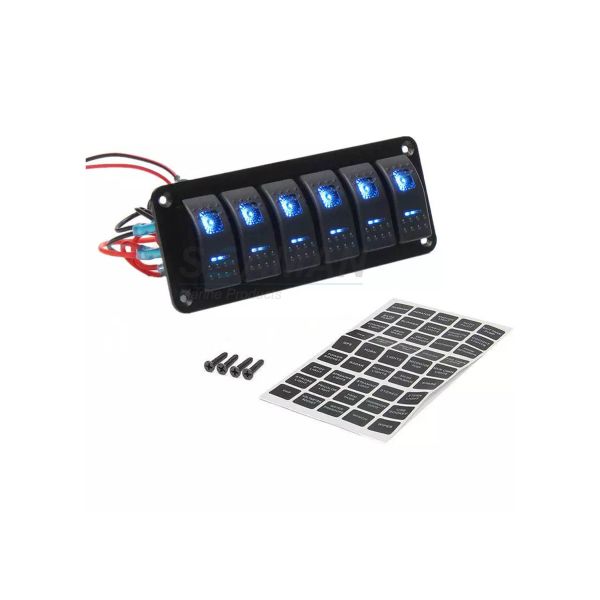

6 Gang Switch 5 Pin On/Off 2 LED Blue Light Aluminum Rocker Switch Panel for Marine Boat RV Truck Yacht

Product Description

Feature:
1.Pre-wired for you to easily install in both 12V and 24V vehicle, yacht, ship, caravan, truck, etc.
2.Switch panel for controlling universal electrical equipment in the vehicle: headlight, fog light, width light, car refrigerator switch,
car vacuum switch, take electric for automobile external equipment, cigarette lighter and so on.
3.IP65 waterproof, with rubber seal-cap to keep it waterproof, best for marine.
4. 6x LED illuminated marine grade rocker switches, presented with vehicle and marine labels, easy for DIY.
5.easy to replace, protect panel from over-heating, over-currents, over charging and short circuit.
6.High quality, more durable and solid aluminum panel than the plastic or the wooden one.

Connection instruction:
Black Wire=Negative
Red Wire=Positive

Packing included:
1 x Rocker Switch Panel

Note:
1.No Instructions Included.
2.Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
3.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
4.The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.

Specifications:

Feather Material ABS+PC+Aluminum
Installation Pre-wired
Switches Available 6 rocker switches
Loop Circuit ON-OFF
Rating

DC 12V 20A,24V 10A
waterproof: IP65
LED light RED OR BLUE OR GREEN
Operating Temperature -25 degree to 80 degree
Electrical Life 10000 make and break cycles at full load
Dimensions (Width)179mmx(Height)68mmx(Depth)90mm
warranty Provide 1 year manufacturer warranty

24v Waterproof Marine Switch Panel Rocker 6 Gang 5 Pin On Off 2 LED Blue Light

24v Waterproof Marine Switch Panel Rocker 6 Gang 5 Pin On Off 2 LED Blue Light
