Specifications
Brand Name :
Hongruntong Marine
Model Number :
HM-CLTWB01
Certification :
ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Place of Origin :
China
MOQ :
1
Price :
US$20-US$150
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1520 Pcs Per Month
Delivery Time :
5-6 Work Days
Packaging Details :
Wooden Pallets, Wooden Box
Name :
Crane Load Test Water Bags
Material :
Top Notch PVC
Thickness :
0.4mm-2.5mm, or As Request
Loadcell :
10-150 Tons
Capacity :
1T - 150T
Layers :
1-6Ply, or As Request
Reinforcement :
Nylon Fabric
Color :
Black, Yellow, Orange, or As Request
Application :
Structural Load Testing, Proof Load Testing
Features :
Durability, Adjustable Weight
Description

10 Tons High Strength Test Weight Bags Weatherproof Design With Customizable

Description

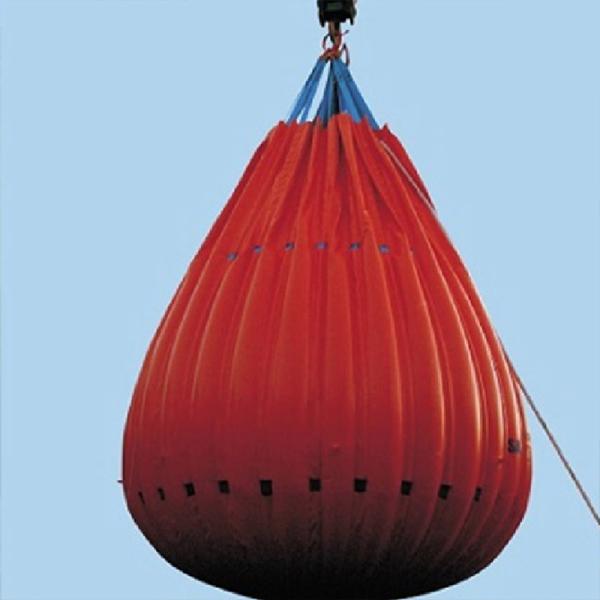

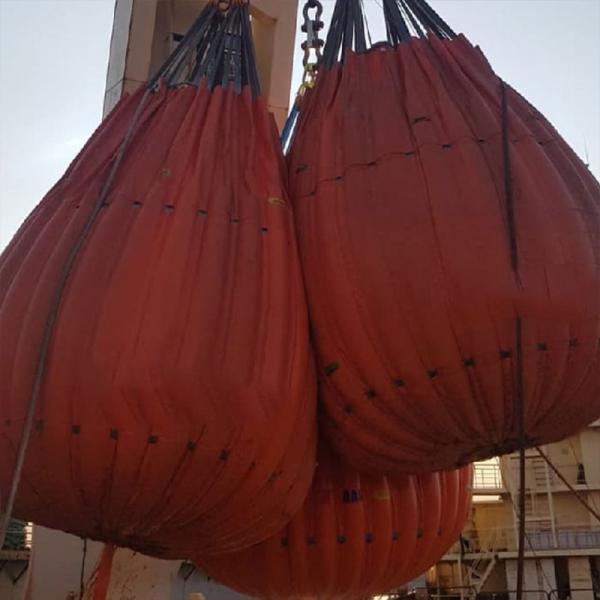

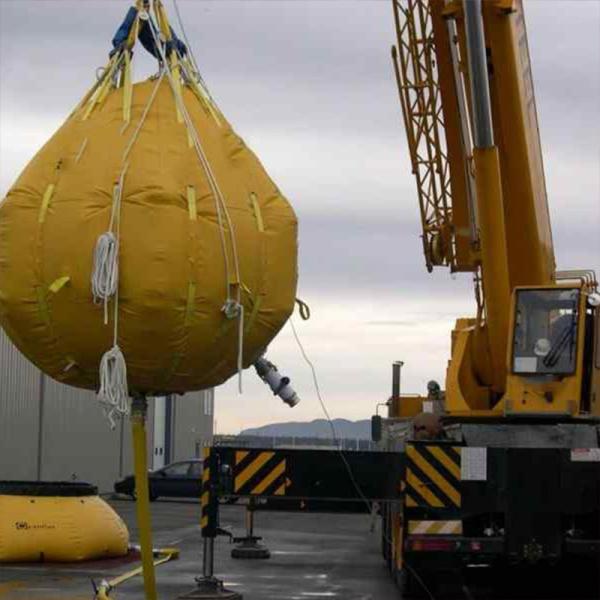

Crane Load Test Water Bags are purpose-built for load testing in marine, industrial, and offshore environments. Their modular design allows multiple bags to be connected for higher capacities, and their bright safety colors ensure visibility during operations. Resistant to seawater, oil, and extreme weather, they perform reliably even in harsh conditions.

( Case: In a Middle Eastern shipyard, a series of 20-ton water bags were used to test a gantry crane. The test was completed ahead of schedule, with zero equipment damage and minimal manpower. )

Specifications

Application Proof Load Testing, Offshore Load Testing, Structural Load Testing, Ship Load Testing, Industrial Equipment Testing, Research and Development.
Content 100% POLYVINYL CHLORIDE
Phthalate 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65, CPSIA and REACH)
Backing Material Size 1.8/2.0 Mm X 1.55m, Thickness Produced As Per Your Request.
Weight 37.1 oz square yard/ 1450 +- 50 GSM
Special UV Resistant
7P Phthalate Free (includes all Phthalates listed in CAL Prop 65, CPSIA and REACH)
BPA Free / Tris Free / Formaldehyde Free
Does Not Contain Conflict Minerals
Care Instructions Rinse With Fresh Water And Air Dry
Do Not Store with Seawater and Keep Away From Heat Sources
Available sizes 5000 kg
8,000 kg
1,0000 kg
15,000 kg
20,000 kg
30,000 kg
50,000 kg
100,000 kg
Special sizes could be customized
OEM Supported

MODEL Weight Volume Empty Height (Length)

Filled

Height (Length)

Max

Diam

(ø)

 Dry Weight without accessories
kg Liters / m3 m m m kg
lbs USG ft ft ft lbs
HM-1T 1,000 1,000 / 1 2.52 2.23 1.39 36
2,204 264 8.27 7.33 4.56 80
HM-2T 2,000 2,000 / 2 2.87 2.6 1.65 41
4,409 528 9.41 8.5 5.43 90
HM-3T 3,000 3,000 / 3 3.38 2.97 1.82 50
6,613 792 11.11 9.75 6.0 110
HM-4T 4,000 4,000 / 4 3.41 3.07 1.88 64
8,818 1,056 11.22 10.1 6.16 141
HM-5T 5,000 5,000 / 5 4.14 3.52 2.13 80
11,023 1,320 13.60 11.58 7.0 176
HM-6T 6,000 6,000 / 6 4.39 3.91 2.28 86
13,227 1,585 14.41 12.83 7.48 189
HM-8T 8,000 8,000 / 8 4.54 3.93 2.52 104
17,636 2,113 14.91 12.91 8.27 230
HM-10T 10,000 10,000 / 10 5.18 4.49 2.70 130
22,046 2,641 17.0 14.75 8.90 286
HM-12.5T 12,500 12,500/ 12.5 5.43 4.62 2.86 154
27,558 3,302 17.91 15.16 9.39 340
HM-15T 15,000 15,000 / 15 6.24 5.48 2.95 159
33,069 3,962 20.50 18.00 9.70 350
HM-20T 20,000 20,000 / 20 6.78 6. 04 3.42 224
44,100 5,283 22.25 19.83 11.25 492
HM-25T 25,000 25,000 / 25 7.51 6.40 3.75 315
55,115 6,604 24.66 21.0 12.33 695
HM-35T 35,000 35,000 / 35 8.07 7.11 3.91 417
77,161 9,246 26.50 23.33 12.83 920
HM-40T 40,000 40,000 / 40 8.71 7.72 4.07 440
88,184 10,566 28.58 25.33 13.36 970
HM-50T 50,000 50,000 / 50 8.99 7.77 4.56 544
110,231 13,208 29.50 25.50 14.96 1200
HM-100T 100,000 100,000 / 100 11.27 10.00 5.65 952
220,462 26,420 37.00 32.9 18.56 2100

Features

Lightweight and Compact When Empty
Due to the flexible fabric construction, these water bags are lightweight and fold down into compact bundles when not in use, facilitating easy transportation and minimizing storage space requirements.

Customizable Dimensions and Load Ratings
Manufacturers offer tailored sizes, thicknesses, and load capacities to meet specific test protocols, making these water bags highly adaptable to different crane types and industry standards.

UV Stabilized and Weatherproof
The PVC material is treated with UV inhibitors and chemical stabilizers, making the bags resistant to sun degradation, ozone, and a wide range of environmental conditions, allowing prolonged outdoor use.

Even Load Distribution Mechanism
Designed with multiple internal baffles or compartments to maintain uniform water distribution, preventing load imbalances that could compromise the accuracy of crane load testing or safety.

Applications

Load Testing for Offshore Equipment

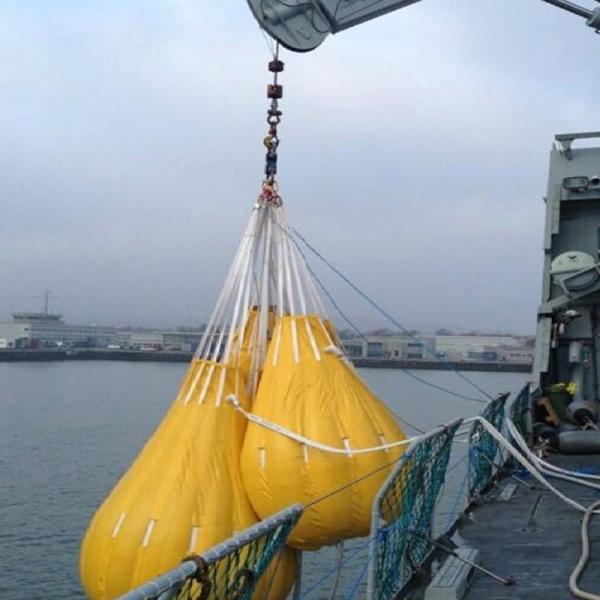

In offshore platforms and marine environments, water bags are used for testing lifting equipment and cranes, where traditional heavy weights are impractical to transport and handle.

Load Testing in Confined or Remote Locations
Because water bags are lightweight when empty and can be filled onsite, they are especially useful in areas difficult to access with traditional weights, such as mountainous regions, remote construction sites, or urban rooftops.

Testing of Lifting Frames and Gantry Cranes
They provide uniform load distribution critical for validating the performance and safety of lifting frames and gantry cranes used in manufacturing, warehouses, and shipyards.

Advantages

Compact Storage and Easy Transport
When empty, the bags fold into compact sizes, saving warehouse space and facilitating convenient transport to remote job sites or offshore platforms.

Durable Reinforced Lifting Points
All lifting points are reinforced with high-tensile webbing and heavy-duty stitching, designed to handle repeated stress without tearing or deformation.

Industry Standard Certifications
Our products comply with ISO, CE, and other relevant safety and quality certifications, ensuring trustworthiness and regulatory compliance worldwide.

Comprehensive Quality Control
Each water bag undergoes rigorous pressure testing, leak detection, and seam integrity inspections before shipment to guarantee 100% defect-free delivery.

FAQ

Q1: How should water bags be stored when not in use?
A13: Store them in a dry, shaded area, away from sharp objects and chemicals. Ensure the bags are fully drained and clean before folding and storing to prolong their lifespan.

Q2: What certifications do these water bags typically have?
A14: Many are certified according to international standards such as ISO, CE, ASME, and meet OSHA and other regional safety regulations for load testing equipment.

Q3: Can water bags be used in cold climates?
A15: Yes, but precautions should be taken to avoid freezing water inside the bags, which could damage the fabric. Some manufacturers offer specially designed cold-resistant models.

Q4: How do water bags ensure even load distribution during testing?
A16: Many water bags incorporate internal baffles or compartments that prevent water from shifting, maintaining a stable and evenly distributed load critical for accurate crane testing.
