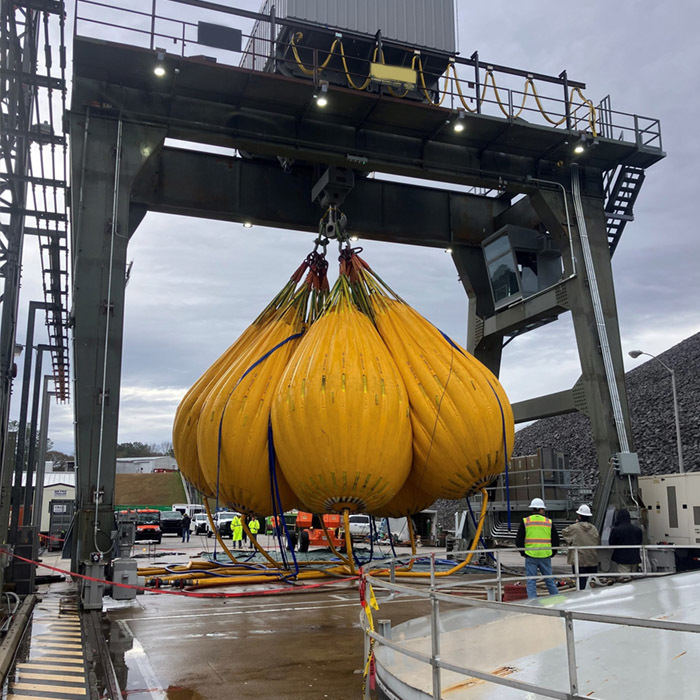

Water Load Bags High Visibility Design Leak Proof Construction High Strength Durability

Description

Load Testing Water Bags are engineered as a heavy-duty load application system specifically developed for proof load testing in offshore, marine, and high-risk industrial environments. By utilizing water as a controllable ballast medium, these systems allow engineers to apply large, precisely measured loads while maintaining a high level of operational safety and flexibility.

The bags are constructed from multi-layer, reinforced technical fabrics designed to withstand extreme tensile forces, dynamic loading conditions, and prolonged exposure to harsh environmental factors. Structural reinforcement zones are integrated into high-stress areas, ensuring stable load transfer during lifting and suspension. Each unit is equipped with certified lifting attachments and controlled filling interfaces, enabling safe and gradual load application in compliance with offshore testing procedures.

Unlike rigid test weights, Load Testing Water Bags adapt naturally to load movement, reducing shock loads and minimizing stress on cranes, lifting appliances, and supporting structures. This characteristic is particularly valuable in offshore environments where wave motion, wind, and limited deck space increase operational risk. The ability to transport the bags empty and fill them on-site significantly reduces logistical complexity and project costs.

These water load systems are commonly used for offshore crane certification, subsea lifting frame testing, davit and winch proof loading, and structural verification of offshore platforms. Their modular nature allows testing teams to configure loads for a wide range of capacities, making them a practical and reliable solution for complex offshore projects.

Case Study

An offshore engineering contractor was tasked with performing proof load testing on a pedestal crane installed on a fixed oil and gas platform in shallow water. The crane, rated at 200 tonnes, required a proof load test in accordance with offshore safety regulations before commissioning. The platform had limited deck space and strict weight distribution limits, making the use of traditional steel test weights impractical.

Hongruntong Marine supplied a customized set of Load Testing Water Bags designed for offshore use, including reinforced lifting points and corrosion-resistant fittings. The bags were delivered to the platform by supply vessel in an empty state, significantly reducing transport weight and lifting requirements during mobilization.

During the test, the bags were suspended from the crane hook and gradually filled using seawater pumped directly from the platform’s utility system. Load increments were applied in controlled stages, allowing engineers to monitor crane performance, structural response, and safety systems under increasing load. The flexible nature of the water bags reduced dynamic effects caused by wind and minor platform movement.

Upon completion of the test, the bags were drained and stored compactly for demobilization. The contractor reported improved safety conditions, reduced offshore time, and lower overall testing costs. Based on the successful outcome, the same water bag system was later reused on additional offshore assets operated by the client.

Specifications

Features

Extreme Load Handling with Dynamic Load Adaptation

Load Testing Water Bags are designed to perform reliably under extreme load conditions commonly encountered in offshore and heavy industrial environments. The flexible structure allows the load to adapt dynamically during lifting and suspension, reducing peak forces and mitigating shock loads. This adaptive behavior helps protect cranes, rigging, and structural components from sudden stress changes, enhancing overall system safety during proof load testing.

Reinforced Construction for Harsh Environments

The bags utilize multi-layer coated fabrics combined with internal reinforcement zones to provide exceptional resistance to tearing, abrasion, and puncture. All seams are engineered to withstand high internal pressure and repeated loading cycles. The materials are selected for resistance to seawater, hydrocarbons, UV radiation, and temperature variations, ensuring reliable performance in offshore, coastal, and industrial settings.

Modular Configuration and Scalable Capacity

A key feature of the system is its modular design, allowing multiple water bags to be connected in parallel or series to achieve the required proof load. This scalability enables testing teams to adapt a single set of bags to multiple projects with varying load requirements. The modular approach also simplifies transportation and storage, as individual units can be handled more easily than large monolithic weights.

Controlled Filling System for Precision and Safety

Each Load Testing Water Bag is equipped with dedicated filling and draining interfaces compatible with standard pumps and hoses. This enables precise control over the applied load and supports staged loading procedures required by offshore standards. Gradual filling minimizes risk during load buildup, while rapid draining allows quick demobilization once testing is completed.

Applications

Offshore Crane and Lifting Appliance Certification

Load Testing Water Bags are widely used for proof load testing of offshore cranes, winches, and davits. Their ability to accommodate dynamic offshore conditions makes them particularly suitable for platforms, FPSOs, and offshore construction vessels. The system allows certification activities to be completed efficiently while maintaining strict safety controls.

Subsea and Offshore Structure Load Verification

In offshore construction projects, water bags are used to test lifting frames, padeyes, and temporary lifting arrangements before subsea deployment. Applying controlled loads on deck reduces uncertainty and ensures that lifting equipment performs as designed when exposed to subsea operational conditions.

Heavy Industrial Load Testing in Remote Locations

Beyond offshore environments, these water bags are used in remote industrial sites where access to traditional test weights is limited. Their transport efficiency and on-site filling capability make them ideal for projects where logistics and mobilization costs must be carefully managed.

Why Choose Hongruntong Marine

Specialized Focus on Offshore and Heavy Engineering Projects

Hongruntong Marine has extensive experience supporting offshore and heavy engineering projects that demand high safety margins and reliable equipment. Our Load Testing Water Bags are developed with a deep understanding of offshore operational challenges, including limited space, environmental exposure, and strict regulatory oversight.

Engineering Led Customization and Load Planning

We provide engineering-led solutions tailored to each project’s specific load testing requirements. This includes selecting appropriate bag sizes, determining optimal configurations, and advising on load application procedures. Our technical support helps clients plan tests efficiently while maintaining compliance with offshore safety standards.

Robust Quality Assurance and Traceability

Every Load Testing Water Bag supplied by Hongruntong Marine undergoes thorough quality inspection and documentation. Materials, seams, and lifting components are verified to ensure consistent performance. Traceability records support project audits and certification processes, providing confidence to operators and inspectors alike.

Long Term Partnership and Lifecycle Support

Hongruntong Marine views each delivery as part of a long-term partnership. We support clients with operational guidance, reuse planning, and replacement recommendations to maximize the value of their investment. This lifecycle-oriented approach helps clients standardize their load testing operations across multiple projects.

FAQ

1. Are Load Testing Water Bags suitable for dynamic offshore conditions?

Yes. The flexible nature of water-filled loads allows the bags to adapt to movement caused by wind or minor platform motion, reducing shock loads compared to rigid weights.

2. Can seawater be used to fill the bags?

Seawater can be used without affecting performance. The materials and fittings are designed to resist corrosion and degradation in marine environments.

3. How are multiple bags connected for higher loads?

Bags can be connected using certified shackles and spreader arrangements, allowing modular configurations that achieve the required proof load safely.

4. What inspection is required before reuse?

Before reuse, bags should be visually inspected for surface damage, seam integrity, and lifting point condition. Periodic detailed inspections are recommended for frequent offshore use.

5. Do the bags comply with offshore testing standards?

The system is designed to support proof load testing in accordance with commonly applied offshore and marine standards, subject to project-specific procedures and approvals.
