Specifications
Brand Name :
Hongruntong Marine
Model Number :
HM-CLTWB25
Certification :
ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Place of Origin :
China
MOQ :
1
Price :
US$13-US$210
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3150 Pcs Per Month
Delivery Time :
5-6 Work Days
Packaging Details :
Wooden Pallets, Wooden Box
Name :
Crane Load Test Water Bags
Thickness :
0.4mm-2.5mm, or As Request
Loadcell :
10-150 Tons
Reinforcement :
Nylon Fabric
Material :
Top Notch PVC
Layers :
1-6Ply, or As Request
Capacity :
1T - 150T
Color :
Black, Yellow, Orange, or As Request
Application :
Structural Load Testing, Proof Load Testing
Features :
Durability, Adjustable Weight
Description

Water Weight Bags High Capacity Leak Proof Rapid Filling Lightweight Durable

Description

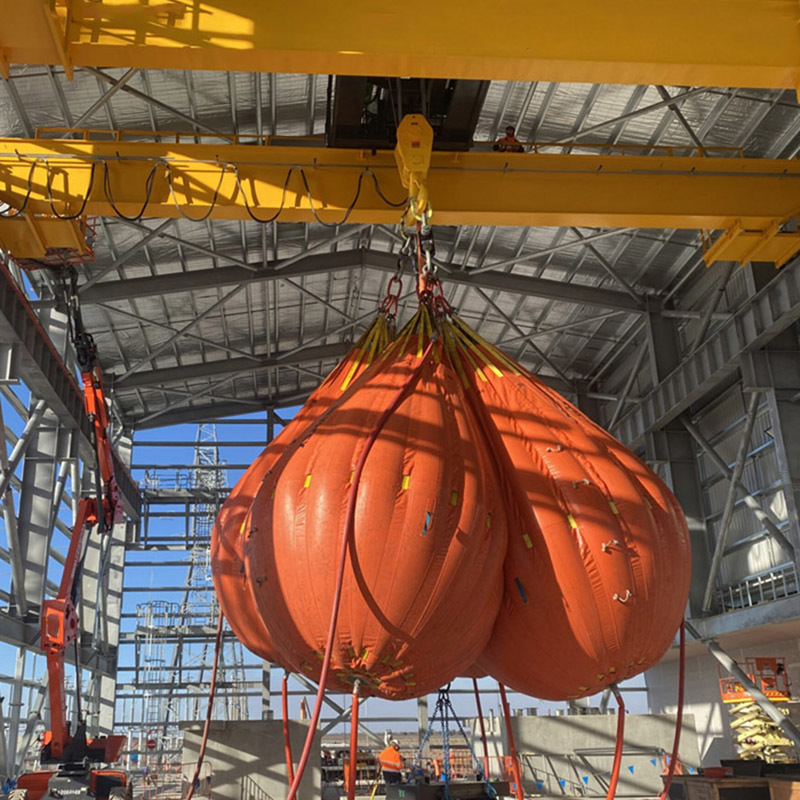

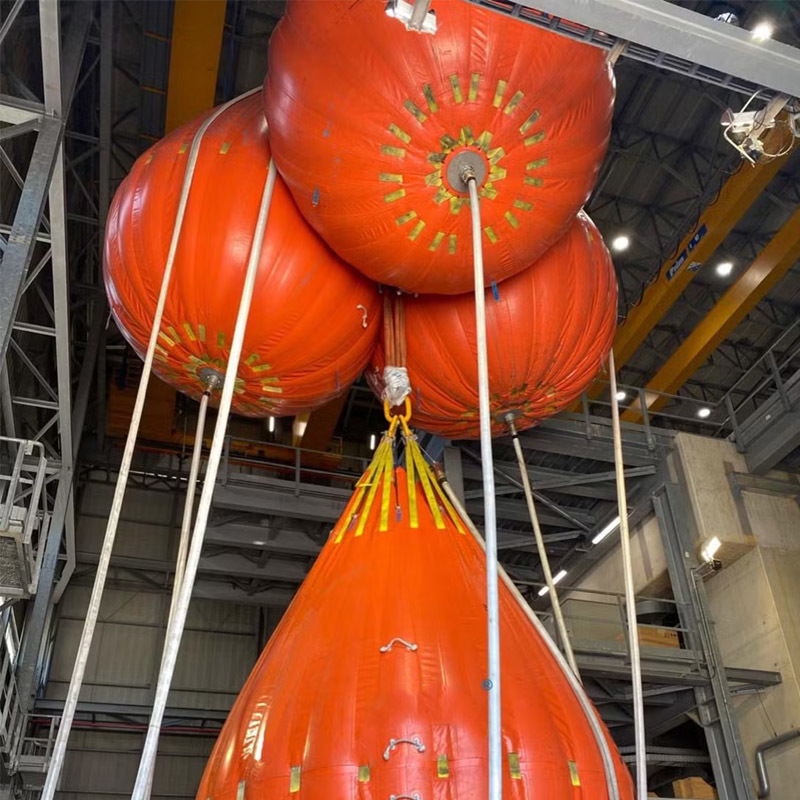

Crane Load Test Water Bags are engineered flexible load testing devices designed for proof-load testing of cranes, davits, winches, and lifting structures in marine and industrial environments. Manufactured from high-strength PVC-coated woven fabric with reinforced seams, these water bags provide a safe, controllable alternative to traditional solid test weights.

Typical capacities range from 1 ton to over 100 tons depending on project requirements. The lightweight empty structure allows easy transportation and deployment, while the filling system enables gradual loading for precise calibration. UV resistance, abrasion protection, and excellent tensile strength ensure reliable performance even in harsh offshore or shipyard conditions.

These water bags significantly reduce logistics costs, enhance operational safety, and simplify load test procedures for shipyards, ports, offshore platforms, and heavy industry facilities.

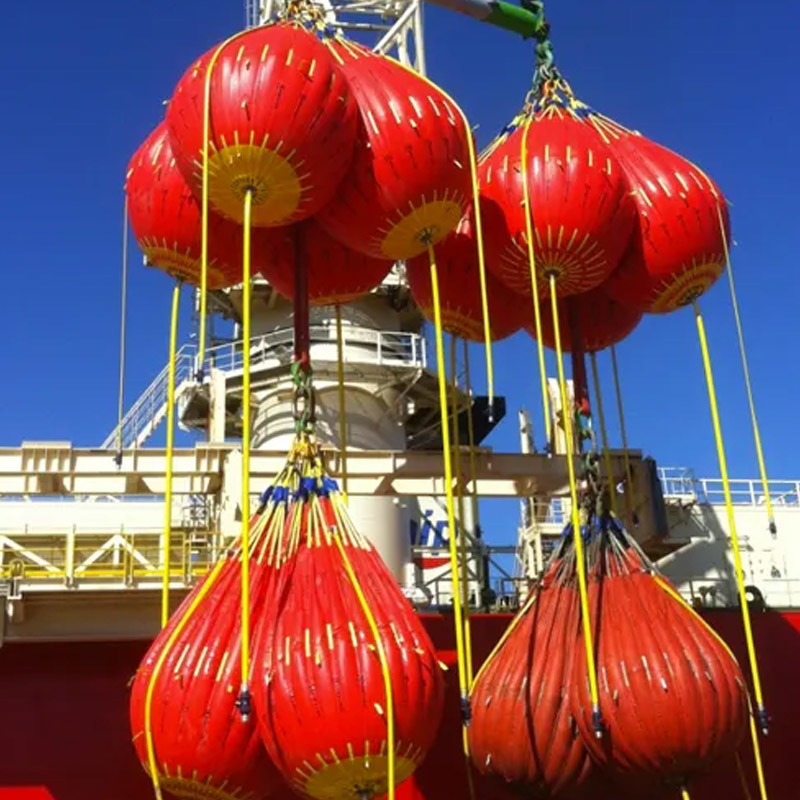

Case Study – Offshore Supply Vessel Crane Test

A Southeast Asian offshore service company required annual certification of a 50-ton deck crane installed on an offshore supply vessel. Transporting solid test weights offshore was costly and logistically complex.

Hongruntong Marine supplied modular water load bags with calibrated flow meters. The bags were filled directly using seawater, allowing controlled incremental loading. The entire test was completed within one day, reducing downtime by 40%.

Operators reported excellent handling, stable load behavior, and easy draining. The system has since become their standard annual testing solution.

Specifications

Name Crane Load Test Water Bags
Application Proof Load Testing, Offshore Load Testing, Structural Load Testing, Ship Load Testing, Industrial Equipment Testing, Research and Development.
Content 100% POLYVINYL CHLORIDE
Phthalate 7P Phthalate Free (includes all Phthalates listed in CAL Prop 65, CPSIA and REACH)
Backing Material Size 1.8/2.0 Mm X 1.55m, Thickness Produced as Per Your Request.
Weight 37.1 oz square yard/ 1450 +- 50 GSM
Special UV Resistant
7P Phthalate Free (includes all Phthalates listed in CAL Prop 65, CPSIA and REACH)
BPA Free / Tris Free / Formaldehyde Free
Does Not Contain Conflict Minerals
Care Instructions Rinse with Fresh Water and Air Dry
Do Not Store with Seawater and Keep Away From Heat Sources
Available sizes 5000 kg
8,000 kg
1,0000 kg
15,000 kg
20,000 kg
30,000 kg
50,000 kg
100,000 kg
Special Sizes Could be Customized
OEM Supported

MODEL Weight Volume Empty Height (Length)

Filled

Height (Length)

Max

Diam

(ø)

 Dry Weight without accessories
kg Liters / m3 m m m kg
lbs USG ft ft ft lbs
HM-1T 1,000 1,000 / 1 2.52 2.23 1.39 36
2,204 264 8.27 7.33 4.56 80
HM-2T 2,000 2,000 / 2 2.87 2.6 1.65 41
4,409 528 9.41 8.5 5.43 90
HM-3T 3,000 3,000 / 3 3.38 2.97 1.82 50
6,613 792 11.11 9.75 6.0 110
HM-4T 4,000 4,000 / 4 3.41 3.07 1.88 64
8,818 1,056 11.22 10.1 6.16 141
HM-5T 5,000 5,000 / 5 4.14 3.52 2.13 80
11,023 1,320 13.60 11.58 7.0 176
HM-6T 6,000 6,000 / 6 4.39 3.91 2.28 86
13,227 1,585 14.41 12.83 7.48 189
HM-8T 8,000 8,000 / 8 4.54 3.93 2.52 104
17,636 2,113 14.91 12.91 8.27 230
HM-10T 10,000 10,000 / 10 5.18 4.49 2.70 130
22,046 2,641 17.0 14.75 8.90 286
HM-12.5T 12,500 12,500/ 12.5 5.43 4.62 2.86 154
27,558 3,302 17.91 15.16 9.39 340
HM-15T 15,000 15,000 / 15 6.24 5.48 2.95 159
33,069 3,962 20.50 18.00 9.70 350
HM-20T 20,000 20,000 / 20 6.78 6. 04 3.42 224
44,100 5,283 22.25 19.83 11.25 492
HM-25T 25,000 25,000 / 25 7.51 6.40 3.75 315
55,115 6,604 24.66 21.0 12.33 695
HM-35T 35,000 35,000 / 35 8.07 7.11 3.91 417
77,161 9,246 26.50 23.33 12.83 920
HM-40T 40,000 40,000 / 40 8.71 7.72 4.07 440
88,184 10,566 28.58 25.33 13.36 970
HM-50T 50,000 50,000 / 50 8.99 7.77 4.56 544
110,231 13,208 29.50 25.50 14.96 1200
HM-100T 100,000 100,000 / 100 11.27 10.00 5.65 952
220,462 26,420 37.00 32.9 18.56 2100

Features

High Strength Structural Fabric
The load bags are produced from industrial-grade polyester base fabric coated with marine-grade PVC elastomer. This construction ensures exceptional tear resistance, minimal elongation under load, and strong fatigue durability. Reinforced webbing belts distribute stresses evenly, preventing localized overstress during lifting operations.

Controlled Progressive Loading Capability
Unlike solid weights, water load bags enable gradual load increase. Integrated filling valves, calibrated flow meters, and pressure relief systems allow operators to precisely control load increments. This improves testing accuracy while significantly reducing sudden shock loading risks.

Abrasion and Environmental Resistance
The outer layer incorporates UV inhibitors and abrasion-resistant coating. The bags maintain flexibility in low temperatures and resist degradation from saltwater, oils, and sunlight exposure. This extends operational lifespan even in offshore environments.

Operational Convenience and Storage Efficiency
Empty bags are foldable and lightweight. They require minimal storage space and can be transported easily to remote offshore sites. Quick-connect hoses and standardized shackles simplify installation.

Applications

Shipyard Crane Certification
Water load bags are widely used for commissioning tests of gantry cranes, jib cranes, and floating cranes during ship construction or repair.

Offshore Platform Maintenance
They enable periodic proof load testing of platform cranes without requiring heavy transport vessels for solid weights.

Port Equipment Verification
Harbor authorities use them for scheduled inspection of quay cranes, davits, and lifting beams to meet regulatory compliance.

Why Choose Hongruntong Marine

Extensive Marine Engineering Experience
Hongruntong Marine has years of specialization in marine lifting test equipment. Our engineering team understands offshore safety standards and operational challenges, ensuring reliable solutions.

Strict Quality Manufacturing System
All water bags are produced under controlled quality systems using certified raw materials. Every bag undergoes pressure testing, dimensional inspection, and load verification prior to shipment.

Custom Engineering Capability
We provide tailored capacities, connection designs, manifold systems, and instrumentation packages to suit specific crane configurations.

Responsive Technical Support
From installation guidance to maintenance advice, our global service team offers fast response and continuous technical assistance.

FAQ

1. What capacity ranges are available?
Standard bags range from 1T to 100T, with custom designs exceeding this range.

2. Can seawater be used for filling?
Yes. The material is corrosion resistant and suitable for seawater applications.

3. Are the bags reusable?
Yes. With proper handling and storage, they can be used for many test cycles.

4. Do you provide certification?
Yes, proof test certificates and material traceability documentation are supplied.

5. How are the bags transported?
They are folded compactly and shipped in protective packaging.
