Lift Bags Heavy Load Capacity Corrosion Resistant Compact Storage
Product Overview

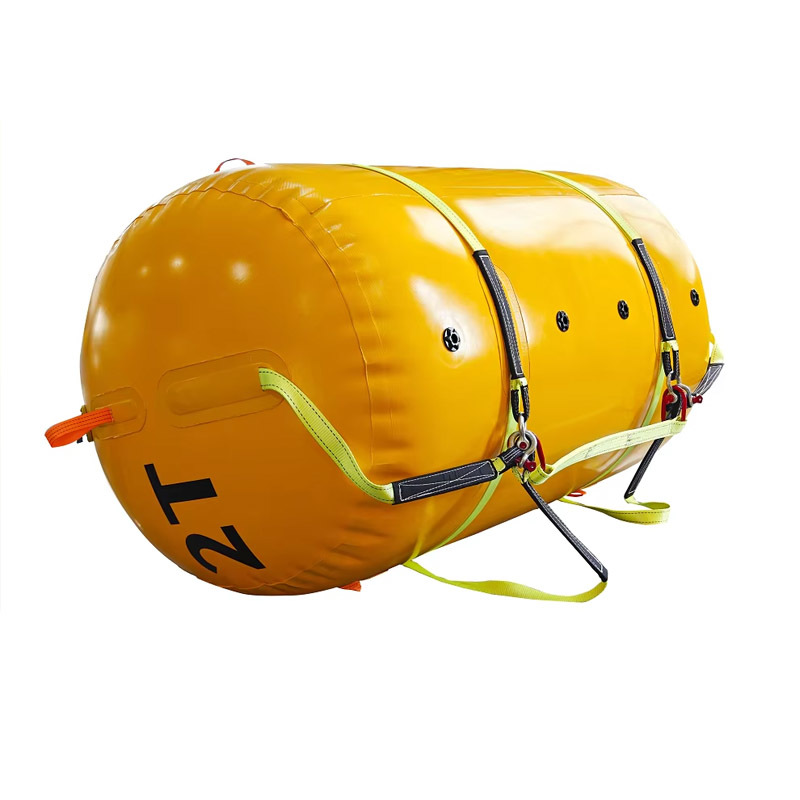

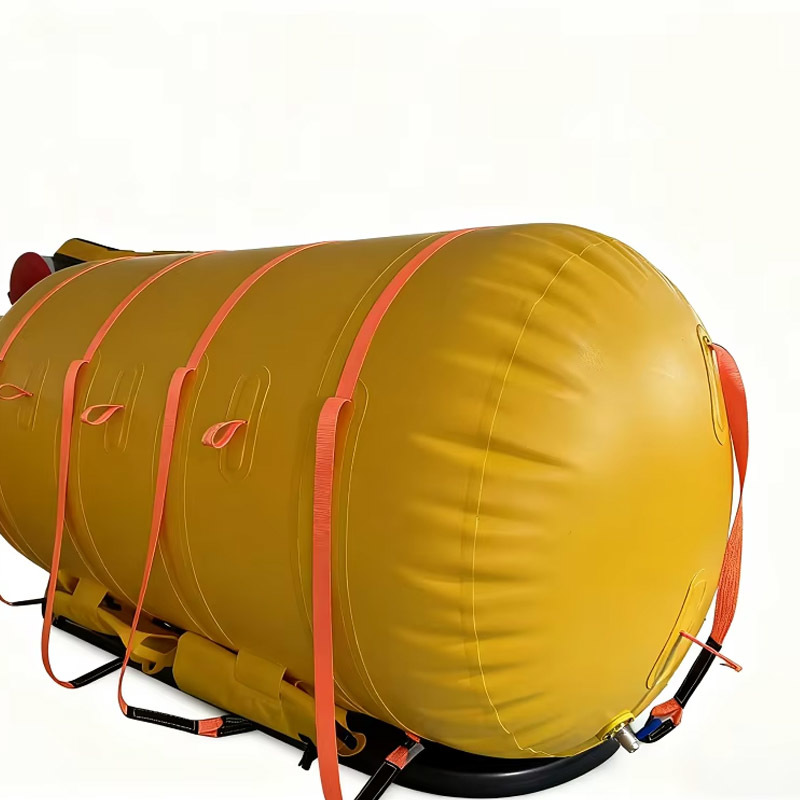

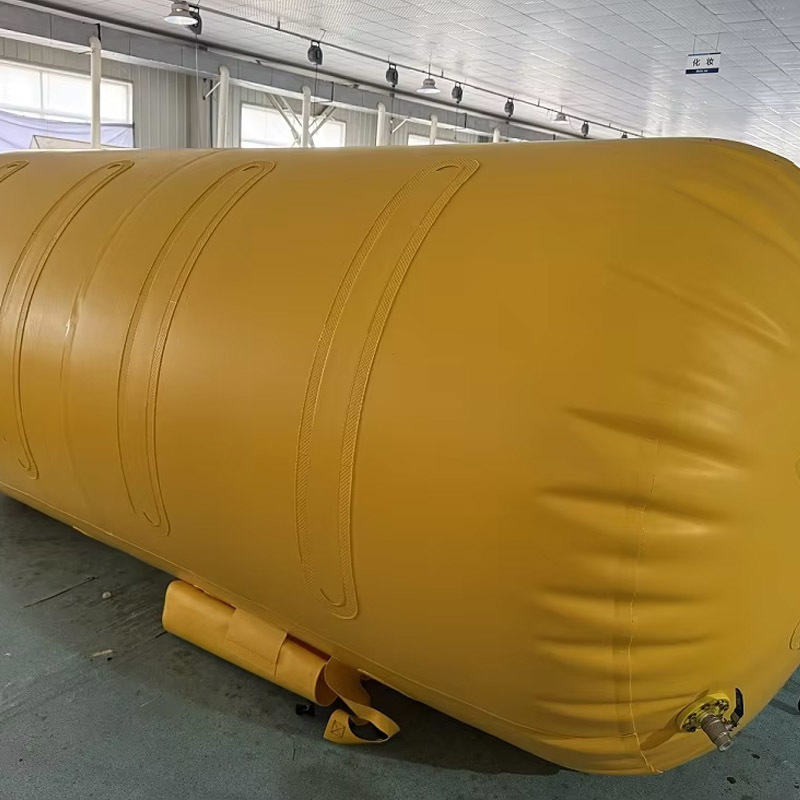

Boat Air Bags are specialized inflatable marine lifting devices engineered for underwater salvage, refloating of sunken or partially submerged vessels, heavy subsea object relocation, and controlled buoyancy operations. Constructed with high-strength synthetic tire cord fabrics encapsulated in abrasion-resistant marine-grade rubber, these airbags provide reliable lifting capacity, precise buoyancy control, and structural resilience under submersion conditions.
These airbags are engineered to resist hydrostatic pressure, repeated inflation cycles, abrasion from underwater structures, and corrosive effects of seawater. Their multi-layer reinforcement ensures uniform stress distribution and minimizes localized strain during lifting operations.
Case Study: Sunken Cargo Vessel Recovery in the North Sea
A marine salvage contractor in the North Sea successfully refloated a partially submerged 2,800-ton cargo vessel using Hongruntong Marine's Boat Air Bags. The operation involved detailed buoyancy calculations, strategic airbag placement, and controlled inflation sequencing to ensure even lifting forces and stability.
The airbags' elastic structure adapted to hull contours and seabed irregularities, enabling smooth, predictable lifting without hull deformation. Following successful recovery, the airbags were reused for additional subsea equipment repositioning, demonstrating their durability and operational versatility.
Specifications
| Product Name |
Boat Air Bags |
| Raw Material |
PVC Coating Fabric |
| Type |
Cylindrical |
| Size |
500kg, 1000kg, 5000kg, 10000kg, etc |
| Thickness |
0.4-1.2mm, or as request |
| Color |
Yellow, Blue, Black, etc |
| Density |
0.33-0.9g/cm³ |
| Safety Factor |
7:1 |
| Tolerances |
±0.03 on densities, ±0.2mm on thickness, ±0 to +3mm on width, ±0 to +3mm on length |
Model Specifications
| Model |
Buoyancy (kg) |
Buoyancy (lbs) |
Diameter (mm) |
Length (mm) |
Approx. Weight (kg) |
| HM-ULB01 | 200 | 441 | 500 | 1,000 | 5 |
| HM-ULB02 | 500 | 1,103 | 800 | 1,000 | 8 |
| HM-ULB03 | 1,000 | 2,205 | 1,000 | 1,500 | 11 |
| HM-ULB04 | 2,000 | 4,410 | 1,300 | 1,500 | 20 |
| HM-ULB05 | 4,000 | 8,820 | 1,600 | 2,000 | 50 |
| HM-ULB06 | 6,000 | 13,230 | 2,000 | 2,000 | 66 |
| HM-ULB07 | 8,000 | 17,640 | 2,000 | 2,600 | 75 |
| HM-ULB08 | 10,000 | 22,050 | 2,400 | 2,400 | 80 |
| HM-ULB09 | 15,000 | 33,075 | 2,600 | 3,000 | 110 |
| HM-ULB10 | 20,000 | 44,100 | 3,000 | 3,000 | 130 |
| HM-ULB11 | 30,000 | 66,150 | 3,000 | 4,500 | 170 |
| HM-ULB12 | 50,000 | 110,250 | 4,000 | 4,000 | 220 |
| HM-ULB13 | 70,000 | 154,350 | 4,000 | 5,700 | 310 |
| HM-ULB14 | 100,000 | 220,500 | 4,000 | 8,000 | 450 |
| HM-ULB15 | 150,000 | 330,750 | 5,000 | 8,000 | 660 |
| HM-ULB16 | 200,000 | 441,000 | 5,000 | 10,000 | 900 |
*Note: Other sizes can be customized according to requirements.
Key Features
- High Precision Buoyancy Control: Adjustable and predictable lifting force enables controlled refloating with minimal risk of structural stress
- Reinforced Structural Integrity: Multi-layer high-strength tire cord fabrics bonded with marine-grade rubber provide exceptional resistance to hydrostatic pressure and tensile stress
- Marine Grade Material Durability: Specialized rubber compounds resist seawater corrosion, abrasion, microbial attack, and UV exposure
- Flexible Deployment and Reusability: Rapid deployment, compact transport, and repeated use across multiple salvage projects
Applications
- Sunken Vessel Recovery: Controlled inflation provides gradual lifting while minimizing hull stress in challenging seabed conditions
- Heavy Subsea Equipment Relocation: Precise handling of large underwater objects without cranes or barges
- Emergency Underwater Lifting: Rapid response for stabilizing vessels, spill response operations, and temporary infrastructure repairs
Why Choose Hongruntong Marine
- Specialized Expertise: Engineering team provides precise buoyancy calculations and operational guidance for complex subsea conditions
- Advanced Manufacturing: Rigorous pressure testing, inspection, and durability verification ensure consistent performance
- Custom Engineering: Tailored airbag design, attachment planning, and inflation sequencing for unique project challenges
- Comprehensive Support: Operational guidance, maintenance recommendations, and on-site technical support
Frequently Asked Questions
What is the maximum lifting capacity of Boat Air Bags?
Capacity depends on bag size, volume, operating depth, and deployment configuration. Engineering assessment is recommended for precise lifting calculations.
Can Boat Air Bags be reused after underwater salvage operations?
Yes, they are designed for repeated use. Proper cleaning, inspection, and storage will ensure long-term operational reliability.
Are these airbags suitable for deep-water operations?
Yes, provided the design pressure rating matches project depth. Multi-layer reinforcement ensures structural integrity under hydrostatic pressure.
How are Boat Air Bags positioned and secured underwater?
They can be attached using straps, chains, or custom rigging points, typically installed by professional divers or remotely operated equipment.
Do you offer engineering support for lifting operations?
Yes. Hongruntong Marine provides technical consultation, buoyancy calculations, inflation procedures, and operational guidance for all underwater lifting projects.
