Industrial Built Marine Rubber Airbag High Pressure Marine Airbag

Marine Rubber Airbags are also known as inflatable marine airbags, ship launching airbags roller bags, air lift bags, and salvage bags. Airbags range in size from 0.6 to 2.8m diameter, with lengths of 5.0m to 24.0m 'effective length'. They are widely used in cargo boat launching and landing, lifting and moving sunken ships, installation of underwater buoyancy aid, and salvaging stranded boats. Airbags have the benefit of not only saving labor and time, but also costs saving. Additionally they are flexible, portable, and dependable. Meanwhile, the airbags have long service year and high carrying capacity because of our superior technology and components.

Structure of Florescence Marine Rubber Airbag
1. Terminal iron
2. Cylindrical airbag body
3. Cone airbag body
D: Diameter of airbag
L: Valid length of airbag
Loa: Total length of airbag

Materials of Florescence Marine Rubber Airbag
An airbag is to be constructed of an outer rubber layer, one or more synthetic-tyre-cord layers, and an inner rubber layer. The arrangement of synthetic-tyre-cord reinforcement layers is shown in the picture below, all materials shall be vulcanized firmly.

Procedure of launch a ship by marine airbags
1.Pre-launch preparation work for shipyard
Slipway Enhancement
Water survey
Vessel skeg enhancement
Ground anchor
Seal thruster holes if there are.
2.Basic equipments needed for ship launching
Rigging equipments:Winch,Pulley,Swivel,Lug,Shackle,Wire sling,Ground Anchor
Inflate equipments:Air Compressor,Inflating Pipe
Airbag moving equipments:Forklift,mobile crane
3.Crew preparation
4.Rigging Arrangements
5.Lifting the blocks
6.Move vessel forward

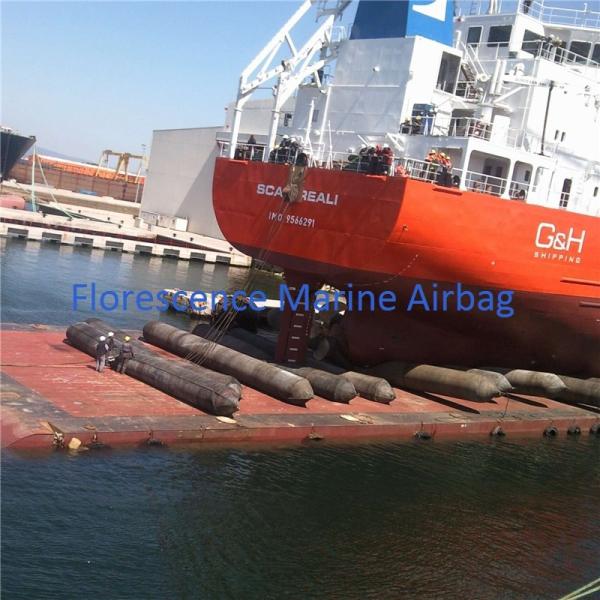

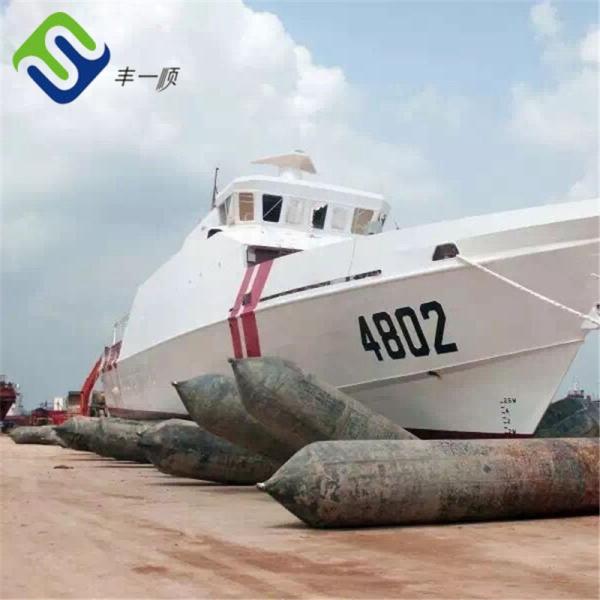

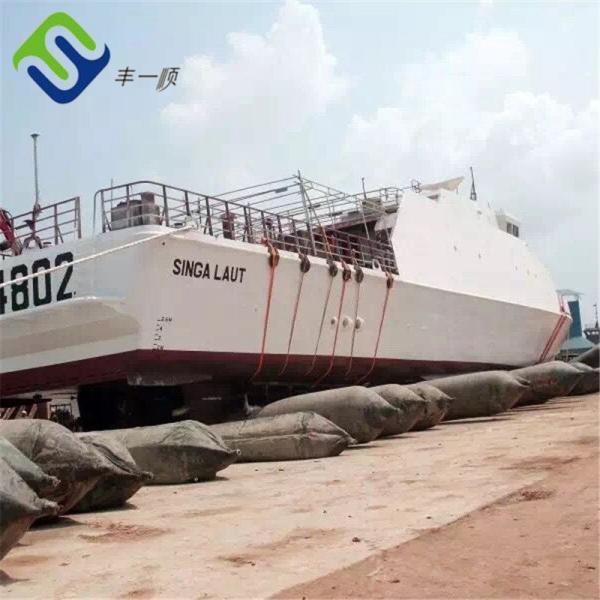

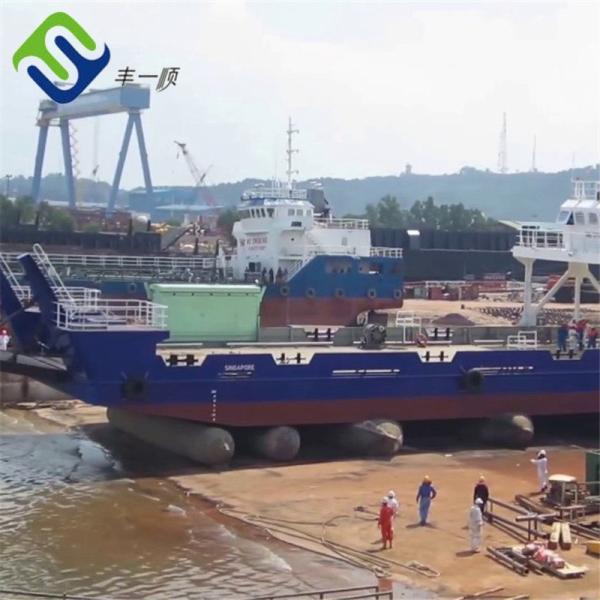

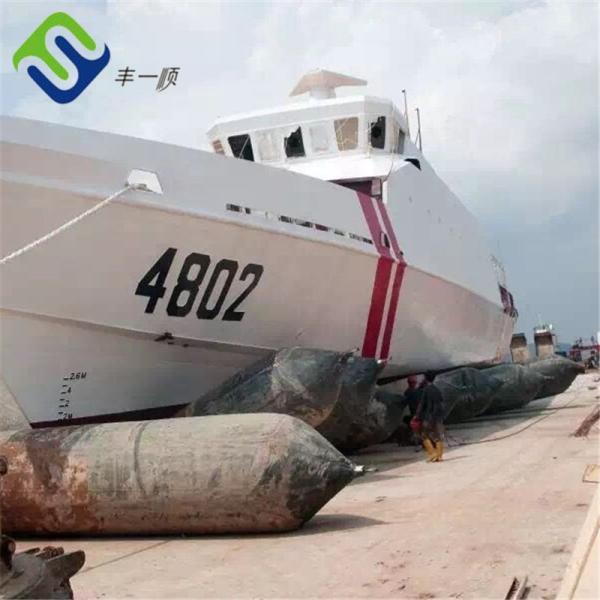

7.Vessel Launching

Advantages of Florescence Marine Rubber Airbag
1.Big carrying capacity
2.High capacity against compression and twisting
3.New design of anti-bursting construction at the end
4.Optimized structural layout
5.Durable aging resistance and anti-wear characteristic
6.Higher flexibility and damping capacity

Specification:
