Specifications
Brand Name :
FLORESCENCE
Model Number :
FL rubber fender(173)
Certification :
CCS,ABS,DNV,LR,ISO9001
Place of Origin :
Shandong,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
100 pcs/month
Delivery Time :
5-10 work days
Packaging Details :
nude,container
Certificates :
CCS,ABS,DNV,BV,LR
Design using life :
More than 10 years
Initial pressure :
0.05-0.08Mpa
Color :
White,black,grey
Thickness :
More than 8 mm
Type :
Pneumatic and deflated
Description

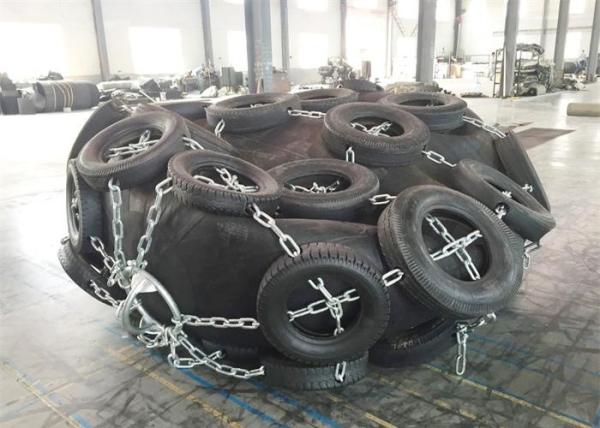

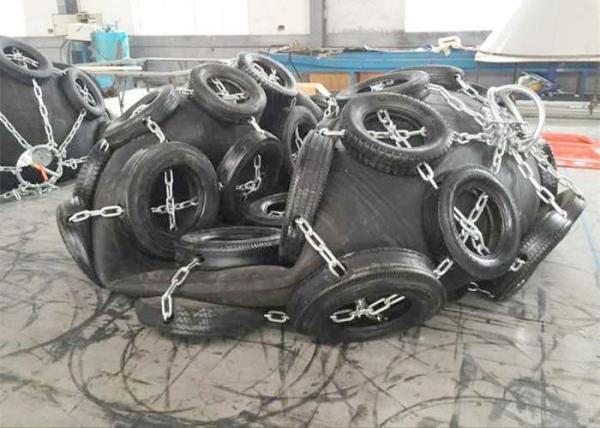

White Color Of Air Block Rubber Barge Fender Marine Rubber Fender

In order to produce the qualified and famous China Brand of pneumatic fenders , FL RUBBER invested the advanced production and test equipments, and invited the foreign experienced engineers of pneumatic fenders, which ensure all FL pneumatic fenders are manufactured comply with ISO17357:2002. Therefore, FL-RUBBER is the unique manufacturer of ISO17357 qualified Pneumatic Fenders in China.

In order to protect your maritime values, FL-RUBBER strongly recommends the use of ISO certified Pneumatic Fenders while performing the high quality needed for safe berthing during ship to ship operations involving bunkering or discharging of oil or gas, and ship to port operation

Storage of FL rubber fender

* When not using for a long time,wash the surface of the fender,dry up and fill in sufficient right amount of compressed air to lay them in a cool.dry and well-ventilated place.

* The storage place of pneumatic rubber fender should be far away from hear source

* Try to keep fender away from acid,alkali,grease and organic solvents

* When not applying the fenders,the pneumatic rubber fender can’t be piled up and heavy items can’t be piled on the fender

Advantages of FL marine rubber fender:

* Not being bent out of shape under pressure
* Good air tightness,safety and reliability
* Many different sizes and shape available
* Pass CCS,DNV,ABS
* Optional tire and chain,can provide chain with hot galvanizing or stainless steel(304,312,316)
* Optional end fittings for the better suitable of applications

Technical performance of marine rubber fender

Specification
DXL(m)

0.05Mpa(Initial pressure 0.05Mpa)(Initial pressure 0.08Mpa)
Weight(kg)Reaction force(KN)

GEA
(KJ)

Weight
(kg)

Reaction force(KN)

GEA
(KJ)

0.5X1.025674625858
0.6X1.032748329811
0.7X1.550137175018024
1.0X1.580182328023945
1.0X2.01002574512533863
1.2X2.01202976316539088
1.35X2.5165427102226561142
1.5X3.0315579153370761214
1.7X3.0405639191436840287
2.0X3.55908753086321150430
2.5X4.01050138166311101815925
2.5X5.513332019943141026531317
3.0X5.0188020001050215527091571
3.0X6.0216024881312247032921888
3.3X4.5202018841175230024761640
3.3X6.0230027831675260036522338
3.3X6.5270030151814308039612532
3.3X10.6440352573067502069074281
4.5X9.0655457474752747075516633
4.5X128739798464739960104909037
Note:The weight is the fender body weight(without tires and chain),with weight error of ±10% and counterforce error of ±10%



FAQ


Q1: What’s your delivery time and payment terms?
A: Delivery time is according to customers’ size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.

Q2: What’s certificates can your company provide?
A: We can provide CCS,ABS,DNV,LR,BV certificates.

Q3: What about your warranty time?
A: Our warranty period is 24 months.During this time,any problems about products from our factory,we solemn promise to change and repair them for free;if problems from customers’ improper operating,we could provide free guidance and repair materials
