300A Heavy Duty Marine Battery Isolator Switch IP66 Waterproof
300A Heavy Duty Marine Battery Isolator Switch IP66 Waterproof
300A Heavy Duty Marine Battery Isolator Switch IP66 Waterproof
300A Heavy Duty Marine Battery Isolator Switch IP66 Waterproof
300A Heavy Duty Marine Battery Isolator Switch IP66 Waterproof
300A Heavy Duty Marine Battery Isolator Switch IP66 Waterproof
300A Heavy Duty Marine Battery Isolator Switch IP66 Waterproof
300A Heavy Duty Marine Battery Isolator Switch IP66 Waterproof
Specifications
Brand Name :
NEKEKE
Model Number :
MT082
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD7-10.5/pc
Payment Terms :
T/T
Supply Ability :
500000 pcs/month
Delivery Time :
7 work days
Packaging Details :
Carton
Material :
ABS
waterproof :
IP66
Operation Temperature :
-30°C~+60°C
Description
300A Heavy Duty Isolator Switch Dual Circuit 3 Position Battery Cut-Off for Marine Boats

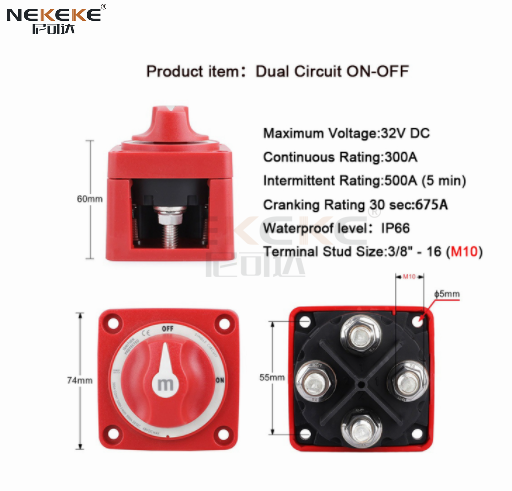

Product Specifications
Attribute Value
Material ABS
Waterproof Rating IP66
Operation Temperature -30°C to +60°C
Color Red
Maximum Voltage DC32V
Continuous Rating 300Amps
Intermittent Rating 450Amps
Cranking Rating 675Amps
Terminal Stud Size M10
300A Heavy Duty Marine Battery Isolator Switch IP66 Waterproof
Key Features
  • Simultaneously switches two isolated battery banks or circuits
  • May be used to switch the positive and negative conductors for required applications
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8" (M10) ring terminals
  • One-piece terminal stud design never loosens over time

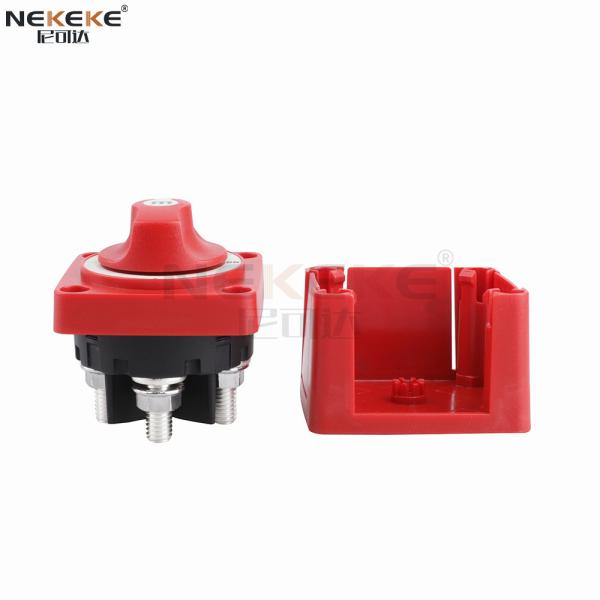

  • Isolating cover with three snap-off side pieces
Certifications & Compliance
  • Meets all American Boat and Yacht Council (ABYC) requirements for battery switches
  • UL Listed - UL 1107 for electric power switches
  • Meets UL 1500 and SAE J1171 external ignition protection requirements
Warranty

Any Blue Sea Systems product with which a customer is not satisfied may be returned for a refund or replacement at any time.

* Reducing cable sizes will reduce current ratings

300A Heavy Duty Marine Battery Isolator Switch IP66 Waterproof
Installation Guidelines

Refer to the latest edition of NFPA 302 and/or ABYC E11 Standard for installation information.

  • Attach one 4/0 AWG cable per terminal to meet ratings
  • Battery cable terminals must be attached under nut and lock washer. Torque 120 in-lb (13.56 N*m)

Multilingual installation instructions:

  • French: Raccordez un cable 120 mm² par cosse pour respecter les specifications
  • Spanish: Sujete un cable 120 mm² por terminal de acuerdo a la clasificacion
  • Italian: Attaccare un cavo 120 mm² per conformarsi alle tarature
Isolator Switch Q & A
Q1: How do you pack the products?
A: Typically, we pack the Isolator Switch in neutral white boxes and sturdy brown cartons or wooden boxes. If you have a registered patent, we can package the products in your branded boxes upon receiving your authorization letter.
Q2: What are your payment terms?
A: We require a 30% deposit via T/T, with the remaining 70% due before delivery, or you can opt for L/C with a 30% deposit. We'll send you photos of the products and packaging before you pay the balance.
Q3: What are your delivery terms?
A: We offer EXW, FOB, CFR, CIF, and DDU terms.
Q4: How long is the delivery time?
A: Delivery typically takes 30 to 60 days after we receive your advance payment. The exact time depends on the products and order quantity.
Q5: Do you offer samples?
A: Yes, we can provide samples if we have stock. However, customers are responsible for the sample cost and shipping fees.
Q6: Do you test your products before shipping?
A: Absolutely, we conduct 100% testing before delivery to ensure quality.
Q7: How do you build long-term and strong relationships with customers?
A: We maintain high-quality standards and competitive pricing to ensure the benefit of our customers.
