MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit
MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit
MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit
MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit
MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit
MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit
MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit
MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit
MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit
MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit
MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit
MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit
MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit
MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit
Specifications
Model Number :
MT081
Price :
Negotiable
Stud Diameter :
10mm
Packaging Details :
Carton
Waterproof :
IP66
Delivery Time :
5-7 days
Certification :
CE, RoHS
Product Size :
74*74*85 mm
Switch Type :
Selector 2 Position
Payment Terms :
T/T,Western Union
Frequency :
50 Hz, 60 Hz
Color :
Red, Orange
Number of Pole :
2
MOQ :
1 Pieces
Supply Ability :
500 Pieces per Week
Material :
ABS, Copper, PC, Steel
Application :
Car, Industrial, Boat
Brand Name :
NEKEKE
Place of Origin :
Guangdong, China
Voltage :
12-48V DC
Description

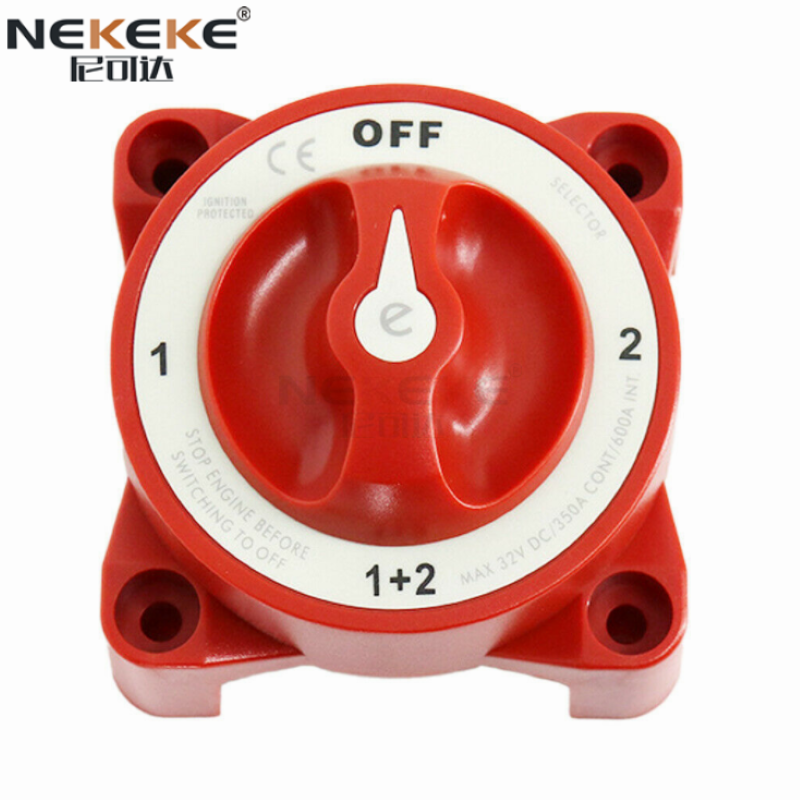

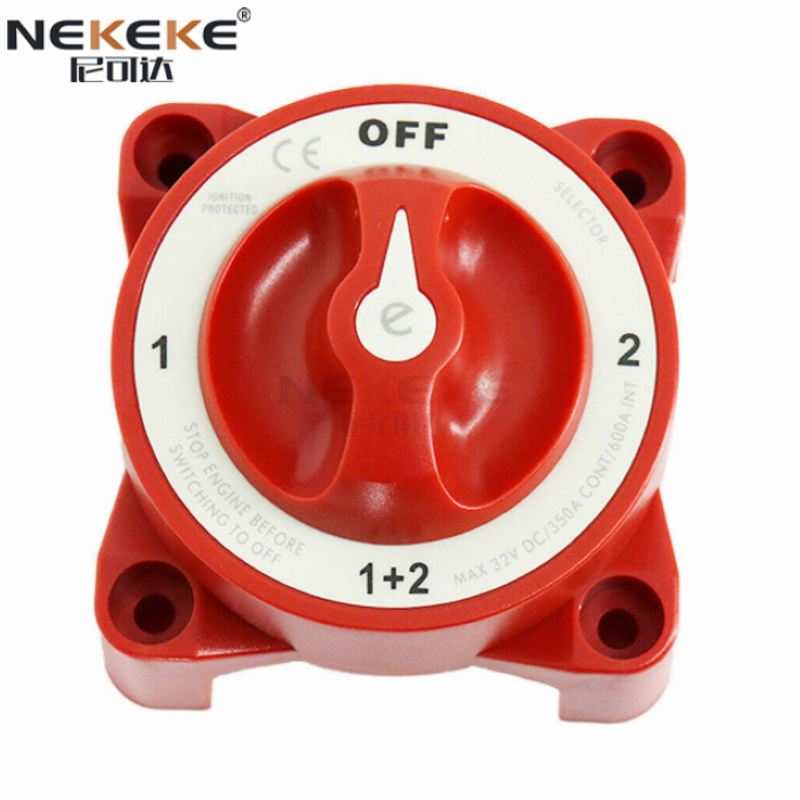

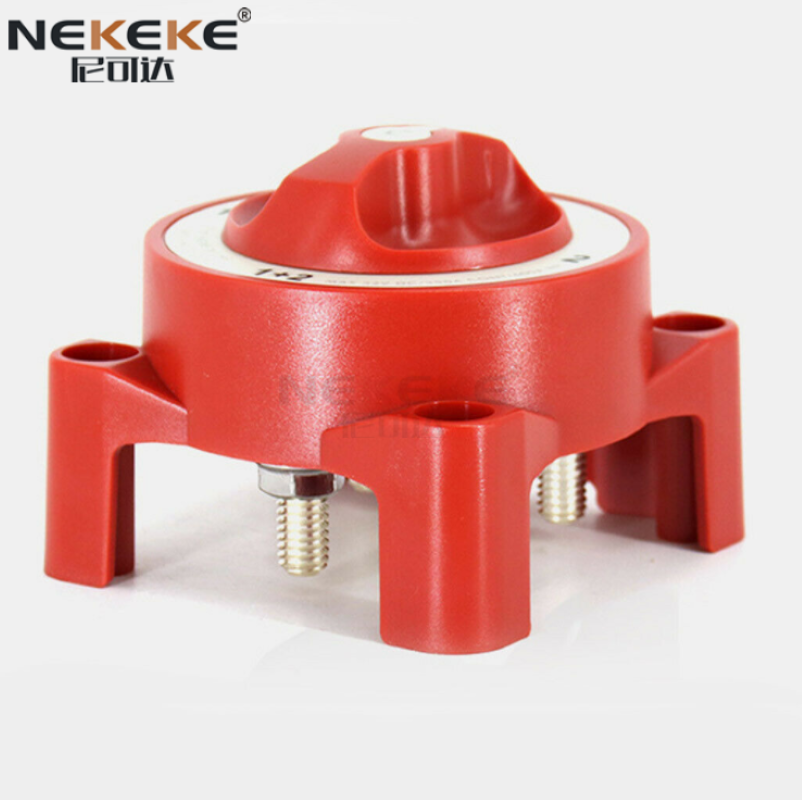

MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit
The NEKEKE MT081 is a marine-grade battery isolator switch rated for 300A continuous duty, purpose-built to deliver safe and dependable power isolation across 12V, 24V, and 48V DC installations. Featuring ignition protection and an IP66 waterproof enclosure, it keeps battery systems under firm control in wet, corrosive, and vibration-heavy environments, protecting starting batteries, house banks, and onboard electronics from drain, shorts, and accidental discharge.
Core Advantages
  • Certified ignition protection blocks spark ignition risks around fuel vapors and engine compartments
  • Sealed IP66 housing resists saltwater spray, hose-down cleaning, and dust intrusion
  • 300A continuous rating with solid copper studs keeps contact resistance and heat build-up low
  • Independent dual-circuit switching lets you manage start and auxiliary banks separately
  • Easy 2-position ON/OFF control with 10mm terminals for firm, secure cable connections
  • Durable ABS/PC construction stands up to heat, vibration, and long-term UV exposure
  • Space-saving 74 x 74 x 85 mm body fits standard engine bays, battery boxes, and electrical lockers
  • Broad voltage compatibility covers 12V, 24V, and 48V boat, RV, and vehicle systems
Technical Specifications
Product Name Isolator Switch
Model Number MT081
Brand Name NEKEKE
Place of Origin Guangdong, China
Frequency 50 Hz, 60 Hz
Material ABS, Copper, PC, Steel
Number of Pole 2
Application Car, Industrial, Boat
Voltage 12-48V DC
Product Size 74*74*85
Stud Diameter 10mm
Waterproof IP66
MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit MT081 300A Continuous Current IP66 Waterproof Ignition Protected Marine Battery Isolator Switch Dual Circuit
Where It Works Best
  • Boats and yachts: split charging, engine start isolation, and house bank protection
  • RVs and campervans: auxiliary battery management and solar input separation
  • Trucks and commercial fleets: master cut-off and maintenance isolation
  • Off-grid and industrial: generator, inverter, and backup power systems
Quality Assurance and Support
  • Application-based product selection support from our engineering team
  • Multi-point inspection on every batch before dispatch
  • On-time delivery planning to support stable stocking
  • Reinforced export packaging for safe long-distance transit
  • Ongoing refinements based on real-world customer feedback
  • Low-volume trial orders and samples available on request
Frequently Asked Questions
What makes the MT081 ignition protected?
The switching chamber is fully sealed to contain any internal arc, preventing ignition of surrounding fuel vapors in engine compartments and marine installations.

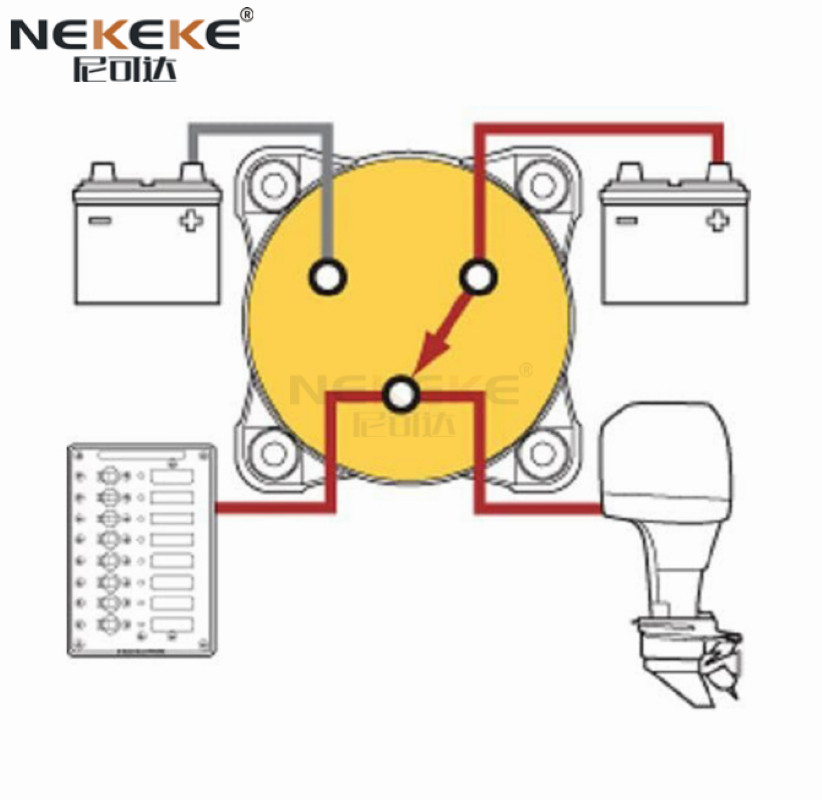

Can it manage two battery banks at the same time?
Yes, the dual-circuit design allows independent switching of two battery banks, making it ideal for start and house battery setups.

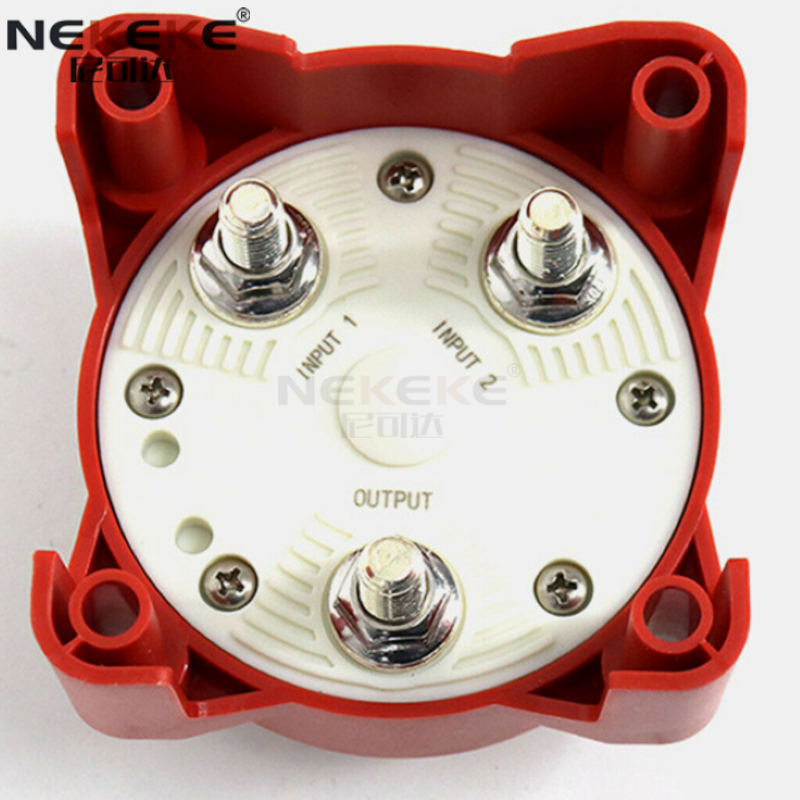

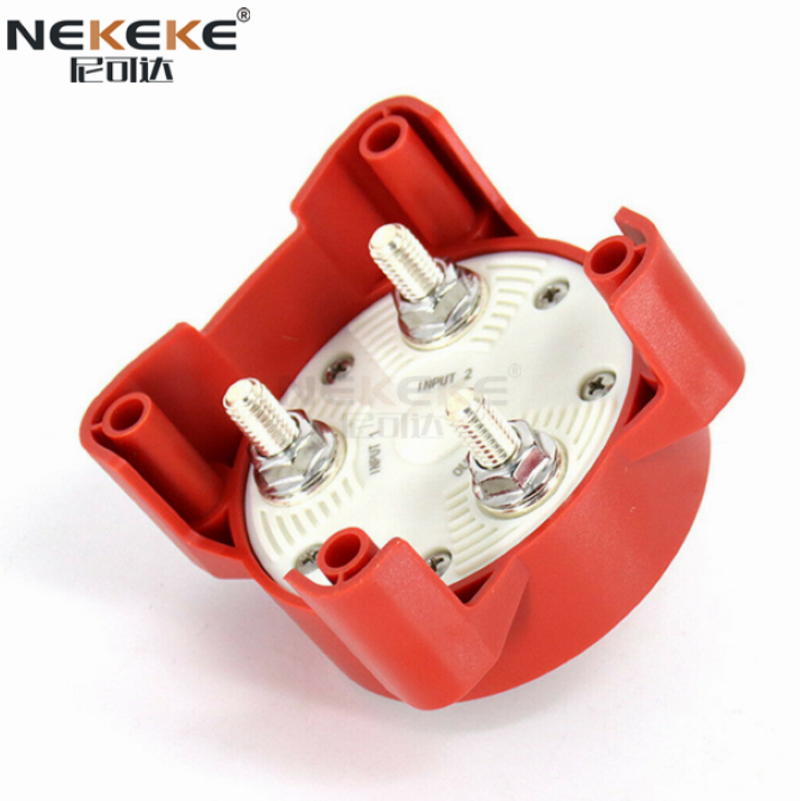

What size terminals does it use?
It is fitted with 10mm diameter copper studs, providing a firm and low-resistance connection point for standard marine battery cables.
Is it suitable for saltwater environments?
Absolutely. The IP66 waterproof housing and corrosion-resistant materials are designed to withstand salt spray, humidity, and hose-down cleaning.
Can you customize the branding?
Yes, customized branded packaging and OEM production can be arranged upon receipt of your authorization letter for registered trademarks or patents.
