AWS A5.4 E308L-16 Extra-low Carbon Stainless Steel Welding Rod Lime Titanium Type for Industrial Applications
AWS A5.4 E308L-16 Extra-low Carbon Stainless Steel Welding Rod Lime Titanium Type for Industrial Applications
AWS A5.4 E308L-16 Extra-low Carbon Stainless Steel Welding Rod Lime Titanium Type for Industrial Applications
AWS A5.4 E308L-16 Extra-low Carbon Stainless Steel Welding Rod Lime Titanium Type for Industrial Applications
Specifications
Material :
Steel
Current Range(A) :
30--200
Diameter :
2.0mm, 2.5mm,3.2mm, 4.0mm,5.0mm
Type :
Lime titanium type
Brand Name :
Zhiyou
Model Number :
AWS A5.4 E308-16, EN 1600 E19 9 R 3 2
Certification :
CE,BV,ISO9001
Place of Origin :
Shanghai China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
5000Tons/Month
Delivery Time :
20 days for one 20' container
Packaging Details :
Plywood case
Free Sample :
Available
Application :
Stainless steel structures
Key words :
Welding wire/AWS A5.18 ER70S-6, JIS Z3312 YGW12
Product Name :
Welding Rod
Description
AWS A5.4 E308L-16 EN1600 E19 9 L R 3 2 Welding Material For Extra-Low Carbon Stainless Steel
Product Overview

AWS E308L-16 is a lime titanium type welding rod designed for extra-low carbon stainless steels. The weld metal provides excellent resistance to inter-crystal corrosion due to carbon content ≤0.04%. Suitable for all position welding applications.

Applications

Ideal for welding extra-low carbon stainless steel 00Cr19Ni10 (304L) and 0Cr18Ni10Ti stainless steel structures requiring corrosion resistance at temperatures below 300°C. Primarily used in synthetic fiber, fertilizer, petroleum, and chemical industry equipment.

Technical Specifications
Parameter Details
Brand Name ZHIYOU
Model No. AWS E308L-16
Diameter 2.5mm, 3.2mm, 4.0mm, 5.0mm or custom
Length 300mm, 350mm, 400mm, 450mm or custom
Operating Current AC, DC
Type of Coating Extra low carbon lime titania
Color Gray, green, white, red
Certificates ICE, BV
Chemical Composition of Deposited Metal (%)
Element Standard Typical
C ≤0.04 0.029
Mn 0.50-2.5 0.86
Si ≤0.9 0.63
S ≤0.03 0.012
P ≤0.03 0.024
Ni 9.0-11.0 9.6
Cr 18.0-21.0 19.8
Mo ≤0.75 0.078
Cu ≤0.75 0.01
Mechanical Properties of Deposited Metal
Property Standard Typical
Tensile Strength Rm (MPa) ≥520 575
Elongation A4 (%) ≥35 46
Size, Pieces & Recommended Current
Size (mm) Pieces (2KG) Current F,H (A) Current OH,VD (A)
2.0×300 ≈172 30-50 30-50
2.5×300 ≈110 60-85 50-70
3.2×350 ≈57 85-120 75-105
4.0×400 ≈33 115-160 95-130
5.0×450 ≈22 160-200 －
Product Features
  • Stable arc with fewer spatters
  • Easy to restrike
  • Reduced smog generation
  • Excellent slag removal
  • Manufacturer direct supplier with ZHIYOU brand
  • Standard quality with competitive pricing
  • Powerful supply capacity
  • Overseas after-sales service
  • Professional R&D and experienced management team
Welding Instructions

Before welding, ensure weld metal is free from impurities including oil, rust, and moisture. Electrodes should be baked at 300-350°C for 1 hour. Use small current and short arc during welding with swaying broad less than 2.5 times the core rod diameter.

Packaging Details
Size Packing
2.5mm × 300mm 2.5kgs/box, 8 boxes/carton = 20kgs
3.2mm × 350mm 5.0kgs/box, 4 boxes/carton = 20kgs
4.0mm × 400mm 5.0kgs/box, 4 boxes/carton = 20kgs
5.0mm × 400mm 5.0kgs/box, 4 boxes/carton = 20kgs

Inner box is shrink-wrapped cardboard. Available on pallets (1MT/pallet or 2.5MT/pallet). OEM packaging available upon request.

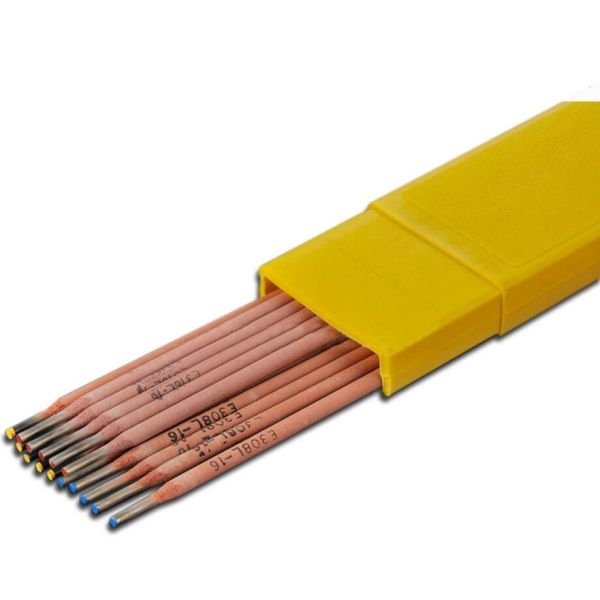

Product Images
AWS A5.4 E308L-16 Extra-low Carbon Stainless Steel Welding Rod Lime Titanium Type for Industrial Applications AWS A5.4 E308L-16 Extra-low Carbon Stainless Steel Welding Rod Lime Titanium Type for Industrial Applications
Ordering & Delivery

Payment Terms: 30% T/T deposit, 70% balance before shipment/against copy B/L

Delivery Time: Within 20 days upon receipt of deposit

Incoterms: EXW/FCA/FOB, C&F/CIF

Shipment: 20'GP, 40'GP, 40'HQ, 40'OT or bulk

Quality Assurance

All products undergo double inspection to ensure complete quality guarantee. Manufactured in our own production facilities to maintain quality control and delivery timelines.

Note: The product range covers all marine outfittings, equipment and facilities. All products can be customized accordingly with OEM & ODM services available.
