Marine Steel Weathertight Portlight Welded Type Marine Ship Side Scuttles
Marine Steel Weathertight Portlight Welded Type Marine Ship Side Scuttles
Marine Steel Weathertight Portlight Welded Type Marine Ship Side Scuttles
Marine Steel Weathertight Portlight Welded Type Marine Ship Side Scuttles
Marine Steel Weathertight Portlight Welded Type Marine Ship Side Scuttles
Marine Steel Weathertight Portlight Welded Type Marine Ship Side Scuttles
Specifications
Key words :
Marine side scuttle, fixed porthole
Type :
Weathertight
Payment Terms :
L/C,T/T,Western Union
Frame Materials :
Marine steel
Parts :
Storm cover
Package :
Plywood case with plastic film wrapping or other packages
Product name :
Marine Side Scuttle, Marine Portlight
OEM & ODM Service :
Available
Nominal Size :
∅200~∅450 mm
Installation Model :
Welding model
Brand Name :
Zhiyou
Model Number :
ZY-W014
Certification :
ABS CCS BV LR DNV NK KR etc.
Place of Origin :
Shanghai China
MOQ :
Negotiable
Price :
Negotiatable
Supply Ability :
1000pcs/month
Delivery Time :
Within 20 to 30 days, According to customers's order
Packaging Details :
Plywood case with plastic film wrapping or other packages
Third Party Inspection :
Other available inspection
Description
Marine Steel Weathertight Portlight Welded Type Marine Ship Side Scuttles
Marine Steel Weathertight Portlight Welded Type Marine Ship Side Scuttles
Marine Portlights, also called Marine Scuttles, are typically mounted under or above the waterline of ships. Zhiyou Marine provides both heavy type and light type variants.
Product Features
  • Material: Marine Steel, Aluminum Alloy
  • Installation Model: Welding model / Bolted model
  • Type: Openable type / Fixed type
  • Diameter: Φ200–Φ450mm
  • Customize service available
Marine side scuttles or marine portlights are divided into heavy type and light type. The heavy type is fitted with anti-windward medial hinge storm cover and can be installed above full load waterline and below freeboard with watertight and gastight characteristics. The light type generally doesn't have storm cover.
  • Customized design/production available
  • Available in fixed or hinged models
  • Materials: carbon steel, stainless steel, aluminum, and copper alloy
  • Regular dimensions: φ200, φ250, φ300, φ350, φ400, φ450
  • Available in natural finish, primed or coated per client requirements
  • Other custom requirements accommodated
Marine Steel Weathertight Portlight Welded Type Marine Ship Side Scuttles
Marine Porthole Marine Scuttle.pdf
Marine Steel Weathertight Portlight Welded Type Marine Ship Side Scuttles

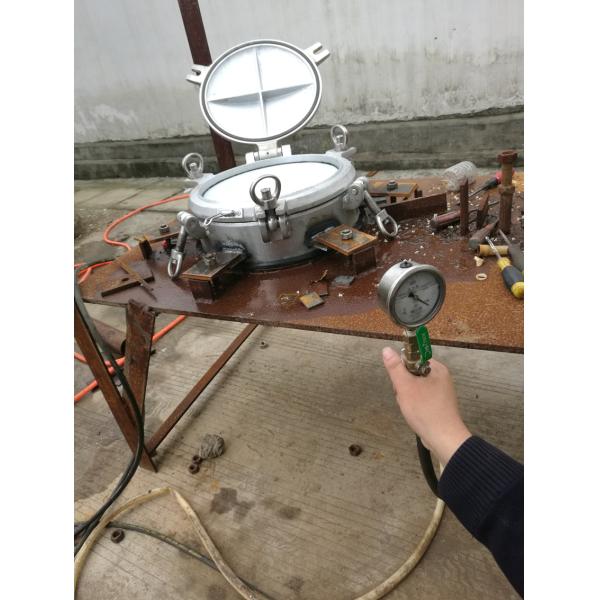

Marine portlights sealing test
Marine Side Scuttle Specifications
TYPE NOMINAL SIZE OPENING MODEL STORM COVER APPLICATION
Heavy Type ∅200mm Right & Left Opening, Joint hinged Hook type, Pawl type Watertight and gas-tight requirements, above full load waterline, below freeboard
∅250mm
∅300mm
∅350mm
∅400mm
Medium Type & Light Type ∅200mm Right & Left Opening NO Above freeboard, the first deck
∅250mm
∅300mm
∅350mm Above freeboard for passenger ships
∅400mm
∅450mm
Package, Delivery & Payment Terms
Payment: By T/T (30% deposit T/T in advance, balance 70% cleared before delivery) or Irrevocable L/C at sight
Incoterm: EXW/FCA/FOB, C&F/CIF
Package: Pallet with film packing or according to customer's requirement
Lead time: Within one month for one 20'GP
Shipment: 20'GP, 40'GP, 40'HQ, 40'OT or in bulk
Our Service
Zhiyou has been providing OEM services for many reputable companies for years, ensuring technical advantages with precise design. Our marine and offshore products are designed according to ABS, CCS, BV, LR, DNV, NK, KR, and other standards. We prioritize quality and reasonable pricing to ensure maximum value and minimum cost for our customers.
  • Punctual Delivery: Tight production scheduling with regular updates and shipping notifications
  • After-Sales Service: 24-hour response time, strict warranty adherence, and maintenance services
  • Professional Design: Experienced engineers providing efficient solutions and bid assistance
