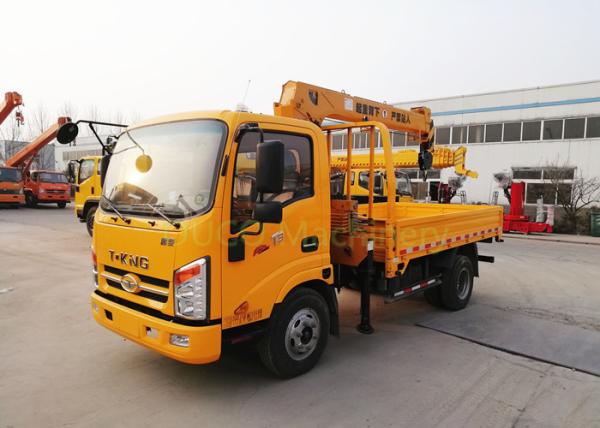

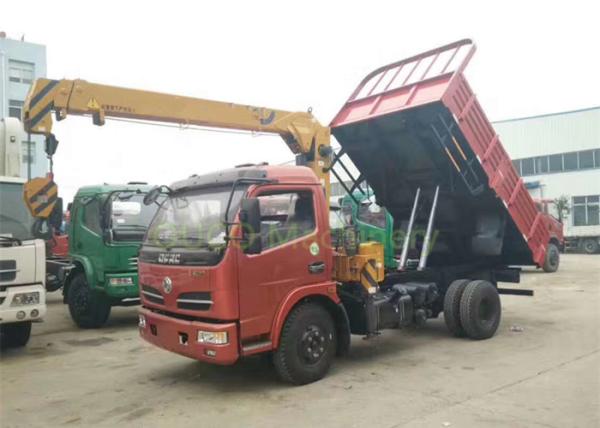

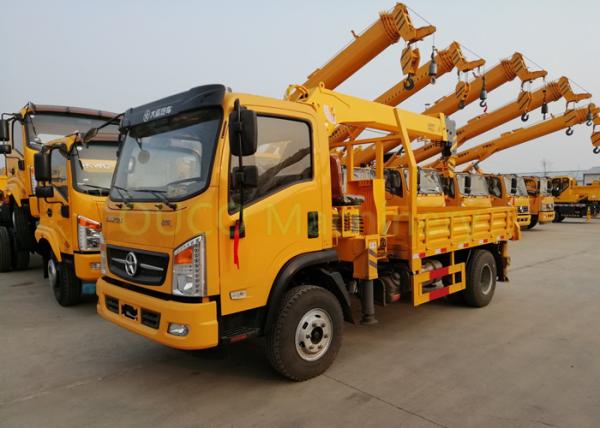

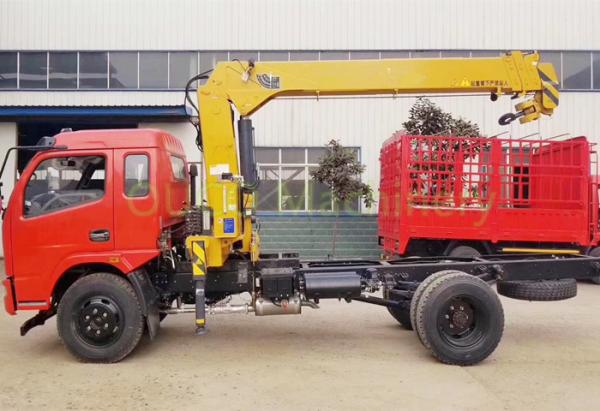

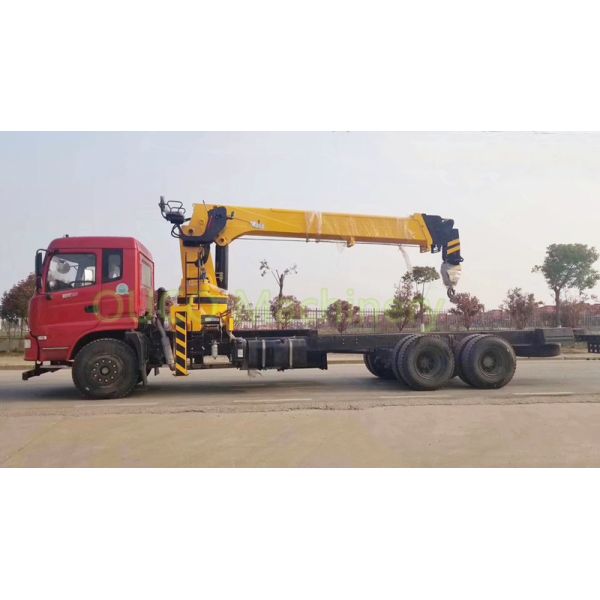

Stiff Boom Type Truck Mounted Boom Crane 10t Small Lifting Hydraulic Grua
Stiff Boom Type Truck Mounted Boom Crane 10t Small Lifting Hydraulic Grua
Stiff Boom Type Truck Mounted Boom Crane 10t Small Lifting Hydraulic Grua
Stiff Boom Type Truck Mounted Boom Crane 10t Small Lifting Hydraulic Grua
Stiff Boom Type Truck Mounted Boom Crane 10t Small Lifting Hydraulic Grua
Stiff Boom Type Truck Mounted Boom Crane 10t Small Lifting Hydraulic Grua
Stiff Boom Type Truck Mounted Boom Crane 10t Small Lifting Hydraulic Grua
Stiff Boom Type Truck Mounted Boom Crane 10t Small Lifting Hydraulic Grua
Stiff Boom Type Truck Mounted Boom Crane 10t Small Lifting Hydraulic Grua
Stiff Boom Type Truck Mounted Boom Crane 10t Small Lifting Hydraulic Grua
Specifications
Brand Name :
OUCO
Model Number :
OUCO-15T-SB-00
Certification :
ISO
Place of Origin :
JIANGSU
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50 per year
Delivery Time :
60 days
Packaging Details :
Shipping Container/Wood Crate/nude
Product name :
10T stiff boom crane
Application :
Lifting/unloading
Max working radius :
8m
Color :
Customer Requirement
After sales service :
Engineers available overseas
Warranty :
12 months
Weight :
2.5t
Material :
Steel Structure
Description

Truck mounted crane stiff boom type 10t small lifting hydraulic grua


Product description:

These truck mounted cranes can be used for multiple work applications, such as electric line maintenance and construction, transmission and distribution, tree trimming and other related uses. Articulating cranes, which are also known as knuckle boom cranes, are designed to be heavyweight and highly maneuverable for maximum payload while working in tight spaces.

Main Features And Advantages

OUCO Stiff Boom Truck Mounted Cranes, also can be called lorry cranes, loader cranes, are available from 1 to 50 meter tons. The full knuckle boom type means all booms of the crane can be retracted back in position, therefore this type is with high efficiency and limited space, which make the operation easily.
With more than 20 models and currently are exceeding domestic and abroad market. OUCO Marine group intends to be one of the top manufacturers of truck mounted cranes by keeping excellent quality and efficient after sales service.


General Arrangement:
Stiff Boom Type Truck Mounted Boom Crane 10t Small Lifting Hydraulic Grua
Technial Specification:
SWL 10t
Max Working Radius 8m
Min Working Radius 2m
Hoisting Speed 0~10m/min
Hoisting Height 15m
Slewing Speed ~0.8r/min
Slewing Angle 360°
Power Resource 415V, 50Hz
Self Weight 2500KG
Working Condition Loading
Power 15KW
Protection Class IP56
Working Type S1

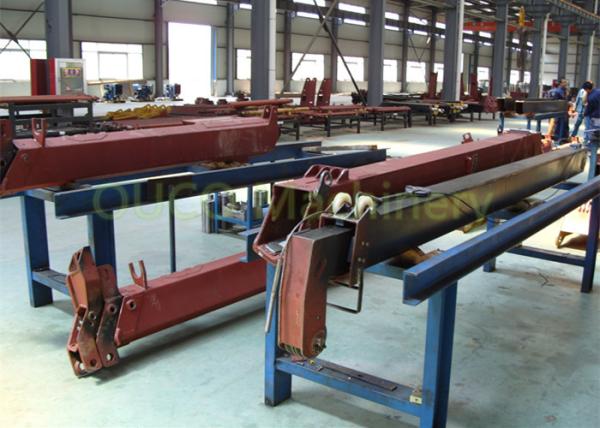

Production process at OUCO workshop:

Stiff Boom Type Truck Mounted Boom Crane 10t Small Lifting Hydraulic Grua
Stiff Boom Type Truck Mounted Boom Crane 10t Small Lifting Hydraulic Grua

FAQ:

Q: What’s working radius of your crane?
A: From 1m to 100m, we can design and make according to your requirement.

Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.

Q: Can this crane be explosion proof?
A: Sure, we can equip any extra function based on your requirement.

Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.


Anything else? We will be pleased to answer all your questions and doubts.
