15 Tons Truck Mounted Boom Crane Hydraulic Driven Stiff Boom Grua Type
15 Tons Truck Mounted Boom Crane Hydraulic Driven Stiff Boom Grua Type
15 Tons Truck Mounted Boom Crane Hydraulic Driven Stiff Boom Grua Type
15 Tons Truck Mounted Boom Crane Hydraulic Driven Stiff Boom Grua Type
15 Tons Truck Mounted Boom Crane Hydraulic Driven Stiff Boom Grua Type
15 Tons Truck Mounted Boom Crane Hydraulic Driven Stiff Boom Grua Type
15 Tons Truck Mounted Boom Crane Hydraulic Driven Stiff Boom Grua Type
15 Tons Truck Mounted Boom Crane Hydraulic Driven Stiff Boom Grua Type
15 Tons Truck Mounted Boom Crane Hydraulic Driven Stiff Boom Grua Type
15 Tons Truck Mounted Boom Crane Hydraulic Driven Stiff Boom Grua Type
Specifications
Brand Name :
OUCO
Model Number :
OUCO-15T-SB-00
Certification :
ISO
Place of Origin :
JIANGSU
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50 per year
Delivery Time :
60 days
Packaging Details :
Shipping Container/Wood Crate/nude
Product name :
15T stiff boom crane
Application :
Lifting/unloading
Max working radius :
8m
Color :
Customer Requirement
After sales service :
Engineers available overseas
Warranty :
12 months
Weight :
2.5t
Material :
Steel Structure
Description

15t truck mounted crane hydraulic driven stiff boom grua type



Product description:

These truck mounted cranes can be used for multiple work applications, such as electric line maintenance and construction, transmission and distribution, tree trimming and other related uses. Articulating cranes, which are also known as knuckle boom cranes, are designed to be heavyweight and highly maneuverable for maximum payload while working in tight spaces.

Main Features And Advantages

OUCO Stiff Boom Truck Mounted Cranes, also can be called lorry cranes, loader cranes, are available from 1 to 50 meter tons. The full knuckle boom type means all booms of the crane can be retracted back in position, therefore this type is with high efficiency and limited space, which make the operation easily.
With more than 20 models and currently are exceeding domestic and abroad market. OUCO Marine group intends to be one of the top manufacturers of truck mounted cranes by keeping excellent quality and efficient after sales service.

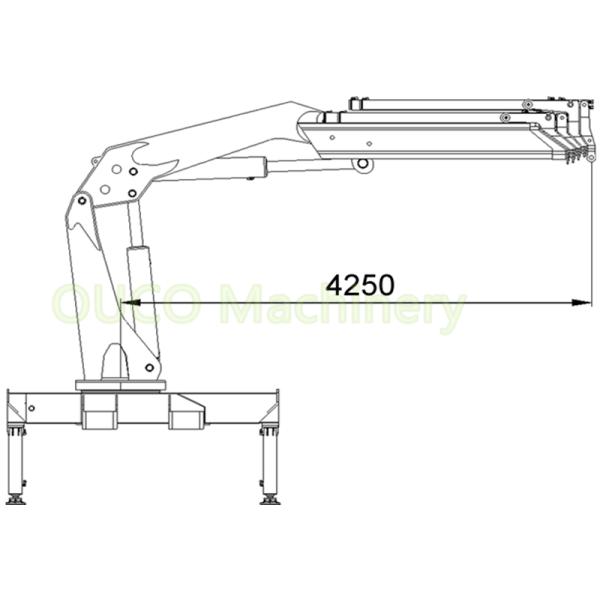

General Arrangement:
15 Tons Truck Mounted Boom Crane Hydraulic Driven Stiff Boom Grua Type
Technial Specification:
SWL 15t
Max Working Radius 8m
Min Working Radius 2m
Hoisting Speed 0~10m/min
Hoisting Height 15m
Slewing Speed ~0.8r/min
Slewing Angle 360°
Power Resource 415V, 50Hz
Self Weight 2500KG
Working Condition Loading
Power 15KW
Protection Class IP56
Working Type S1

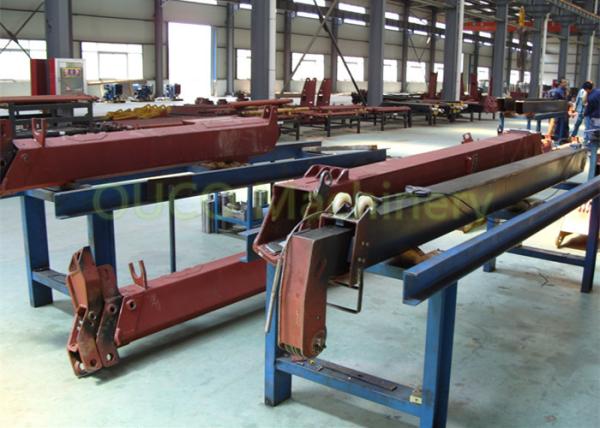

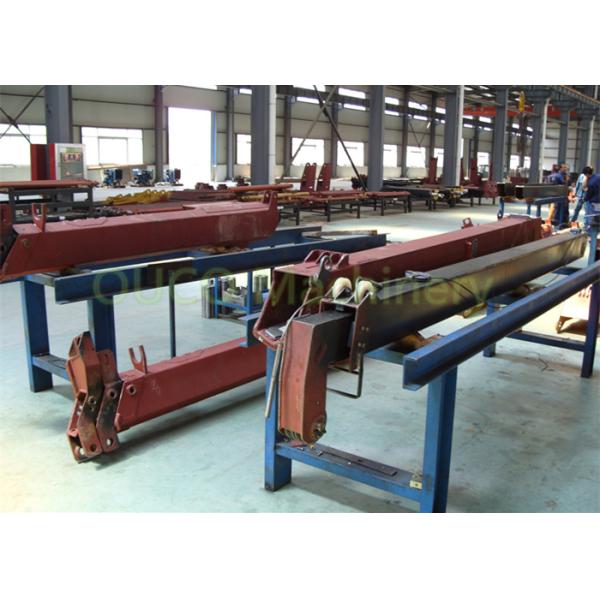

Production process at OUCO workshop:

15 Tons Truck Mounted Boom Crane Hydraulic Driven Stiff Boom Grua Type
15 Tons Truck Mounted Boom Crane Hydraulic Driven Stiff Boom Grua Type
