High Efficiency Marine Electric Winch Electric / Hydraulic Good Stability
High Efficiency Marine Electric Winch Electric / Hydraulic Good Stability
High Efficiency Marine Electric Winch Electric / Hydraulic Good Stability
High Efficiency Marine Electric Winch Electric / Hydraulic Good Stability
High Efficiency Marine Electric Winch Electric / Hydraulic Good Stability
High Efficiency Marine Electric Winch Electric / Hydraulic Good Stability
High Efficiency Marine Electric Winch Electric / Hydraulic Good Stability
High Efficiency Marine Electric Winch Electric / Hydraulic Good Stability
Specifications
Brand Name :
OUCO
Model Number :
OUCO-MW-04
Certification :
CCS.ABS.LRS.BV.GL.DNV.NK
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Supply Ability :
100 sets per year
Delivery Time :
60days
Packaging Details :
Shipping Container/Wood Crate/nude
Color :
Customer Requirement
Key word :
dc electric winch 5000lbs
Capacity :
400 KN
Certificate :
CCS.ABS.LRS.BV.GL.DNV.NK
Product Name :
OUCO Electric Marine Ship Anchor Mooring Windlass
Description

OUCO Electric Marine Ship Anchor Mooring Windlass


Product Description

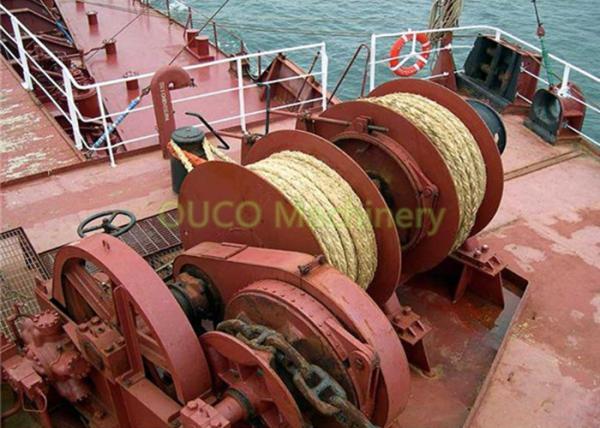

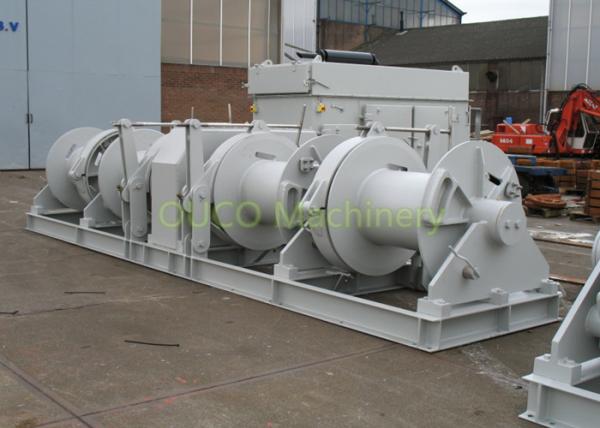

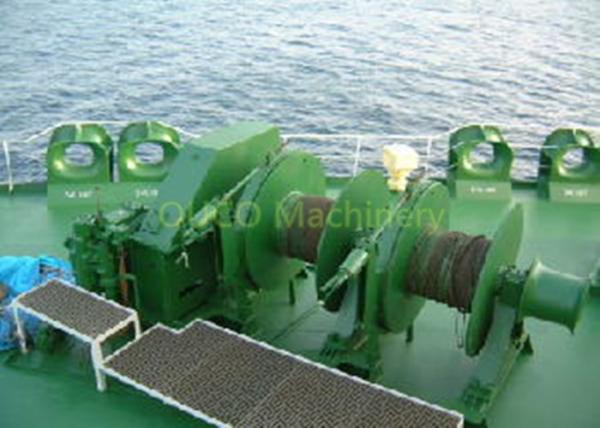

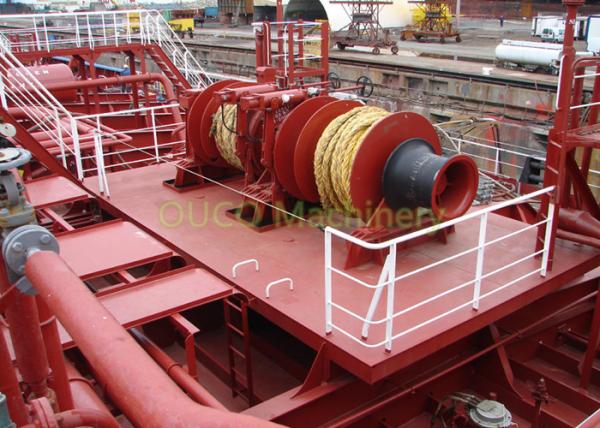

Electric Marine Ship Anchor Mooring Windlass is a combined multi-function winch, which can be used as anchor winch, also can be used as mooring winch. So the winch has gypsy wheel for anchor chain, it also has drum for wire rope. The anchor and mooring winch is widely used on different kinds of boat for anchoring and mooring.

Product Feature

1. Driven Mode:Electric or Hydraulic

2. Configuration: It consists of the windlass, windlass brakes,warping end,hydraulic motor, drum, main axis, drum brake, operation mechanism of clutch,supporting walls and the base,etc.

3. Chain Diameter: From 12.5mm to 100mm.

4. Anchor hoist normal speed: Over 9m/min

5. Rated Pull: From 6 KN to 500KN

6. Holding Load: with chain stopper,Breaking Load

7. Brake: Manual or Hydraulic

8. Claws Clutch: Manual or Hydraulic

9. Control Option: Local with Remote Control

10. Certificate: ABS, GL, LR, BV, NK,DNV, CCS, etc.

Genernal Arrangement
High Efficiency Marine Electric Winch Electric / Hydraulic Good Stability
Technical Parameters

Name

Rated Pull

(KN)

Rated Speed

(m/min)

Drum Capacity

(m)
400kN Dia.Hydraulic Winch 400 4-30 Dia.44x480
450kN Dia.Hydraulic Winch 450 4-30 Dia.46x480
500kN Dia.Hydraulic Winch 500 4-30 Dia.46x500
550kN Dia.Hydraulic Winch 550 4-30 Dia.48x500
600kN Dia.Hydraulic Winch 600 4-30 Dia.50x500
630kN Dia.Hydraulic Winch 630 4-30 Dia.52x500
650kN Dia.Hydraulic Winch 650 4-30 Dia.52x500
700kN Dia.Hydraulic Winch 700 4-30 Dia.52x500
750kN Dia.Hydraulic Winch 750 4-30 Dia.52x500
800kN Dia.Hydraulic Winch 800 4-30 Dia.54x600
1000kN Dia.Hydraulic Winch 1000 4-30 Dia.56x800
1050kN Dia.Hydraulic Winch 1050 4-30 Dia.56x800
1250kN Dia.Hydraulic Winch 1250 4-30 Dia.58x1000
1500KN hydraulic winch 1500 4-30 Dia.58x2000
2000KN hydraulic winch 2000 4-20 Dia.68x2000
2500KN hydraulic winch 2500 4-20 Dia.76x2000

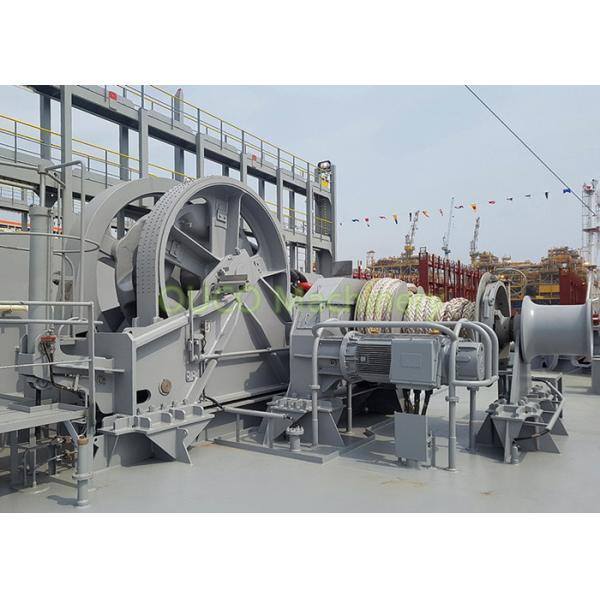

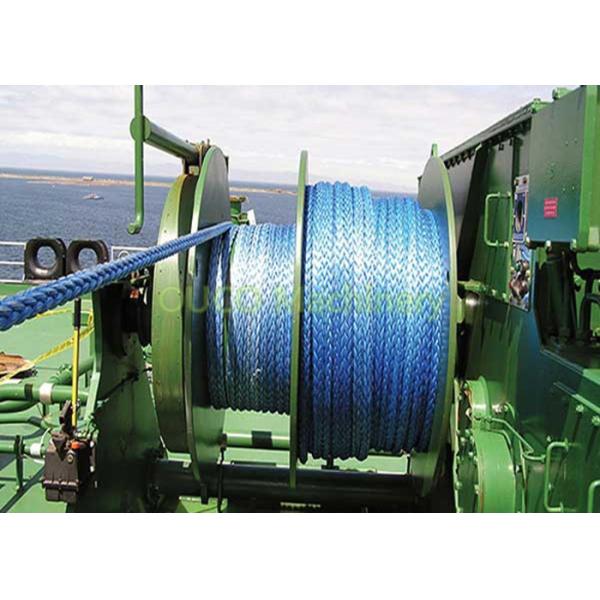

Product Details
High Efficiency Marine Electric Winch Electric / Hydraulic Good Stability

High Efficiency Marine Electric Winch Electric / Hydraulic Good Stability

FAQ
1.Your need quantity?(Set)
2.FOB price or CIF price?(If need CIF price,kindly tell us your nearest sea port)
3.Driven type?(Electric or Hydraulic or Diesel)
4.Working loading capacity?(Ton) or Pull force?(KN)
5.Working speed?(m/min)
6.Rope diameter?(mm)
7.Rope capacity?(m)
8.Power supply?(Voltage---50Hz/60Hz---3Phase)
9.Any other special requirements?
