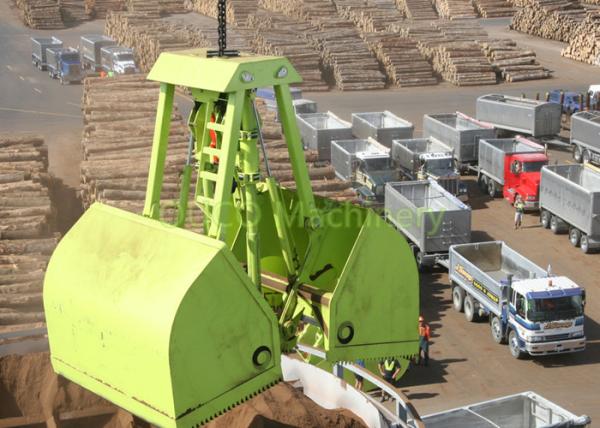

Bulk Handling Mechanical Rope Grab Clamshell Type Low Empty Weight High Efficiency
Bulk Handling Mechanical Rope Grab Clamshell Type Low Empty Weight High Efficiency
Bulk Handling Mechanical Rope Grab Clamshell Type Low Empty Weight High Efficiency
Bulk Handling Mechanical Rope Grab Clamshell Type Low Empty Weight High Efficiency
Bulk Handling Mechanical Rope Grab Clamshell Type Low Empty Weight High Efficiency
Bulk Handling Mechanical Rope Grab Clamshell Type Low Empty Weight High Efficiency
Bulk Handling Mechanical Rope Grab Clamshell Type Low Empty Weight High Efficiency
Bulk Handling Mechanical Rope Grab Clamshell Type Low Empty Weight High Efficiency
Specifications
Brand Name :
OUCO
Model Number :
OUCO-EHG-12
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
150 sets per year
Delivery Time :
30 days
Packaging Details :
Shipping Container/Wood Crate/nude
Color :
Customer Requirement
Product Name :
OUCO Garbage Hydraulic Scrap Metal Double Clamshell Grab Crane Monorail Grabs
Usage :
Bulk Cargo
Condition :
New
Peel :
2 peels
CM3 :
As Required
Material :
Steel
Description

OUCO Bulk Handling Machinery Rope and Hydraulic Clamshell Grab Bucket

Product Description

OUCO grabs are designed and manufactured for loading and/or unloading all kind of scrap, bulk, rock materials. The grabs are made of the best possible materials. The complete shells of the grabs are made of extreme strong and wear resistant steel. The upper structure and pulley blocks are made of high tensile structural steel.

Product Feature

1. Closed, half closed or open buckets
2. Central lubrication system
3. Maintenance free bearings

4. Maximum capacity
5. Low empty weight
6. Hardened Shafts

Technical Parameters

Bulk Handling Mechanical Rope Grab Clamshell Type Low Empty Weight High Efficiency

Model 2Dxx-xx

Lifting Weight

(t)

 2.5 3.0 3.0 3.0 3.0 3.0 5.0 5.0 5.0 5.0 5.0 6.0 8.0 8.0 8.0 10 10 10

Grab Weight

(t)

 1.01 1.49 1.15 1.46 1.46 1.70 2.38 2.38 2.0 2.25 2.20 2.22 3.94 3.7 3.64 4.9 4.60 4.36

Grab Volume

(m³)

 0.7 1.0 1.1 1.5 1.7 2.0 1 1.6 1.8 2.5 2.7 2.5 1.6 3.0 4.0 2.0 3.4 5.0
Load Capacity(t) 1.4 1.5 1.85 1.54 1.54 1.31 2.6 2.6 3.0 2.75 2.8 4.0 4.0 4.3 4.36 5.1 5.4 5.64
Fulls 5 5 3 3 3 3 5 5 4 3 4 5 5 5 3 5 5 3
A(m) 1.03 1.18 1.20 1.30 1.35 1.45 0.97 1.40 1.50 1.50 1.62 1.40 1.80 1.65 1.81 1.60 1.78 2.01
B(m) 1.65 1.95 2.05 2.24 2.24 2.28 2.42 2.40 2.26 2.56 2.42 2.48 2.20 2.75 3.00 2.50 2.94 3.20
C(m) 1.82 2.37 2.35 2.84 2.84 2.60 2.76 2.76 3.04 3.04 3.04 3.01 2.70 3.13 3.53 2.65 3.18 3.90
D(m) 1.78 2.62 2.74 2.89 2.89 2.80 3.15 3.15 3.18 3.28 3.25 3.30 3.90 4.29 4.05 3.92 4.30 4.30
E(m) 1.66 2.11 2.26 2.38 2.37 2.25 2.54 2.54 2.66 2.67 2.82 2.62 2.98 3.29 3.45 2.99 3.31 3.55

Wire Rope Diameter

Φ(mm)

 17.5 16.0 17.5 17.5 17.5 17.5 18.5 18.5 18.5 18.5 18.5 19.5 25.5 25.5 25.5 28.5 28.5 28.5

Pulley Diamrter

Φ(mm)

244

300

300

350

 400 400 400 400 420 420 420 420 420 360 500 500 500 500 500 500

Bulk Handling Mechanical Rope Grab Clamshell Type Low Empty Weight High Efficiency

Model 4Dxx-xx

Lifting Weight

(t)

 12.5 16 16 16 16 20 25 25 32 40 50

Grab Weight

(t)

 7.2 7.2 8.03 6.40 6.87 8.3 10 15.1 14.0 16.9 21.0

Grab Volume

(m³)

 7.8 2.8 3.1 5.05 9 11.5 16.6 5 22.5 23.1 23.2
Load Capacity(t) 5.4 9.0 8.0 9.5 9.0 11.7 15 9.9 18.0 33.1 29.0
Fulls 3 5 5 4 3 4 4 3 3 3 3
A(m) 2.60 1.58 1.76 2.30 2.19 3.19 3.46 2.30 4.00 4.02 4.36
B(m) 3.30 2.80 2.72 2.83 3.20 3.18 3.66 3.29 3.98 4.01 4.33
C(m) 3.91 3.33 3.36 3.78 4.29 4.34 4.90 4.07 5.34 5.48 5.90
D(m) 4.90 4.32 4.58 4.26 4.94 4.91 5.42 5.16 5.76 7.21 8.07
E(m) 4.15 3.62 3.68 3.88 4.32 4.37 4.86 4.66 5.04 6.18 6.96

Wire Rope Diameter

Φ(mm)

 23.5 25.5 25.5 26 25.5 28 32.5 36.5 36 43 46

Pulley Diamrter

Φ(mm)

600

 700 600 600 600 640 710 930 710 1120 1210

Product Details

Bulk Handling Mechanical Rope Grab Clamshell Type Low Empty Weight High Efficiency

FAQ

1. Q:In the material, how should we choose and determine?
A:The selection of the material of the grab edge plate, generally speaking, is the use of high strength wear-resistant steel plate.
2. Q:Electric grab, its use in the process should pay attention to what aspects?
A:In use process, should pay attention to the wire rope and the important parts, because, if the improper use of words, then, the prone to breakage, so we must have enough attention.
3. Q:Which is an important way to improve service life?
A:The important way to improve the service life of the grab bucket is to improve the abrasion resistance of the grab pin and shaft sleeve, and to improve the abrasion resistance of the blade of the bucket body.
4. Q: The type of grab and its span size, whether will affect the grab price?
A:The type of grab, such as the hook or double hook, will affect the price of the grab, because the type is different, then the corresponding price is also different. As for the span of the grab, it is also one of the factors affecting the price of the grab, so it will certainly have an impact.
