Specifications
Brand Name :
OUCO
Model Number :
OUCO-CS-03
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Supply Ability :
200 sets per year
Delivery Time :
7 days
Packaging Details :
Shipping Container/Wood Crate/nude
Rated lifting load :
35-40t
Application :
Portal crane gantry crane plant crane
Color :
Customer Requirement
Type :
telescopic
Condition :
new
After-sales Service Provided: :
Engineers available to service machinery overseas
Description

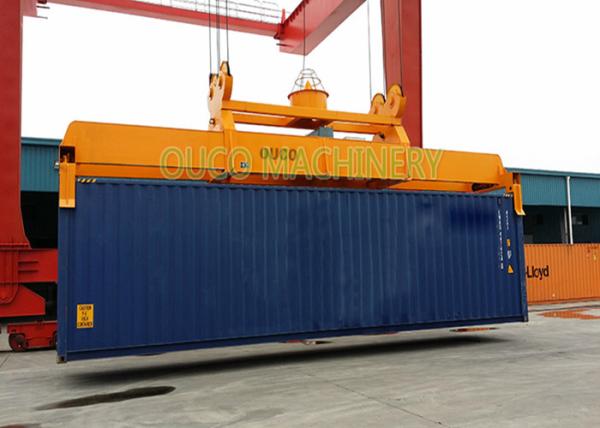

OUCO Electric Standard Container Spreader

Product Description

The electric series are crane spreaders designed to handle 20-40ft / 20-40-45ft ISO containers. The double girder design is structurally based on the ship-to-shore crane spreaders and is made out of high-quality steel in order to reduce the weight of the spreader.

The robust and reliable telescopic system consists of two electric motors powering two timing belts, equipped with shock absorption through spring washer packages. The twistlocks system works with one electrical

motor per end beam which powers a rotating system. This system is connected with the different “quick exchange floating twistlocks“ by a bar.

Electric Spreaders are available as single-, twin- and separating twin-lift version.

Technical Parameters

Model: SR-T Motor Power For Spreader 7.5KW/ For Rotatory Structure 4KW
For Operation With ISO Standard 20' and 40' Containers Overload Protective Value of Motors Max 22A
Rated Lifting Load 41t Precaution Class IP 55
Allowable Load Eccentricity Length Direction 12.5m, Width Direction 0.25m Voitage of Valves AC 220V
Load of Lifting Lugs at Four Corner of Spreader 10t x 4 Hydraulic Part
Self-Weight 14.5t Flow Quantity of Oil Pump ~ 40L/min
Operation Operating Pressure of the System 100Bar
Expansion Time(20' to 40') ~ 30s The Volume of Oil Tank 140L
Twistlock Rotation Through 90° ~ 1s Ambient Temperature -20℃~ +40℃
Flipper Through 180° 5~7s Twistlock Mode ISO Lloating Twistlock, Driven by an Oil Cylinder
Gravity Point Adjustment(±200mm) ~ 5s Telescopic Mode The telescopic system is driven by means of a hydraulic motor and reduction gearbox connected to an endless chain
Rotation (±220°) ~ 35s Flippers Device The corner tlippers are drived by hydraulic motor
Electrical Part
Power Voitage/Frequency AC 380V(3P)/60HZ(Optional)
Control Voitage AC 220V(Optional)


Genernal Arrangement

Double Girder Single / Twin Lift Spreader Equipped With Shock Absorption

Product Details

Double Girder Single / Twin Lift Spreader Equipped With Shock Absorption

Double Girder Single / Twin Lift Spreader Equipped With Shock Absorption
