Specifications
Brand Name :
OUCO
Model Number :
OUCO-CS-00
Certification :
ISO9001
Place of Origin :
Jiangsu. China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per year
Delivery Time :
7 working days
Packaging Details :
Shipping Container/Wood Crate/nude
Rated Lifting Load :
35-40t
Application :
Portal Crane Gantry Crane Plant Crane
Type :
Container Spreader
Condition :
new
Color :
Customer Requirement
After-sales Service Provided :
Engineers Available To Service Machinery Overseas
Description

Semi-automatic container spreaders for 40ft/20ft standard container

Product Description

20 40ft container spreader designed for the handling of 20 ft & 40 ft ISO containers with single or double hook jib cranes, in ports or on vessels. The twistlocks are activated by landing and lifting the spreader from the container by the crane operator. No hydraulic or electric systems are needed.

1. Available in 20' and 40' versions to handle 20-40 ISO containers.
2. Capacity up to 36 Tons
3. Light weight spreader
20' Spreader - 2.2t
40' Spreader - 3.2t

The Semi-Automatic container spreader is used to handle ISO containers.The fixed frame is mounted to a crane by bridle sling and provides a simple way to load and unload containers. Great for ports who need to handle containerson and off a ship, but have lower lift counts.

Technical Parameters

For Operation With ISO Standard 20' Container For Operation With ISO Standard 40' Container
Rated Lifting Load 35t Rated Lifting Load 40t
Self-Weight 2t Self-Weight 3.5t
Allowable Load Eccentricity 10% Allowable Load Eccentricity 10%
Spring Stroke 100mm Spring Stroke 100mm
Ambient Temperature -20℃~ +45℃ Ambient Temperature -20℃~ +45℃
Twistlock Mode ISO Floating Twistlock, Driven by a Automatic Spring Twistlock Mode ISO Floating Twistlock, Driven by a Automatic Spring
Flippers Device No Power, Fixed Flippers Flippers Device No Power, Fixed Flippers
Application Portal Crane, Gantry Crane, Crane in the Plant Application Portal Crane, Gantry Crane, Crane in the Plant

Genernal Arrangement

Light Weight Semi Automatic Container Spreader Bar For Handling ISO Containers

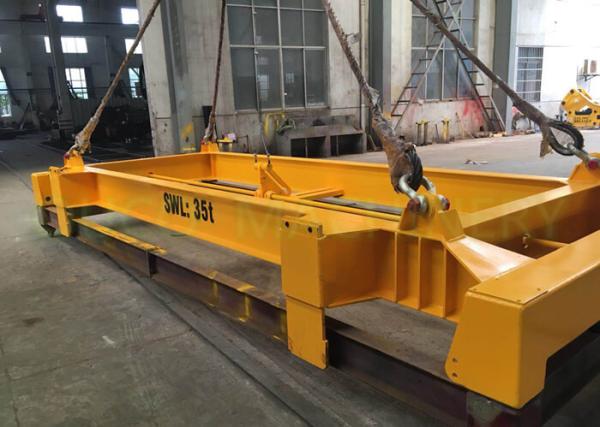

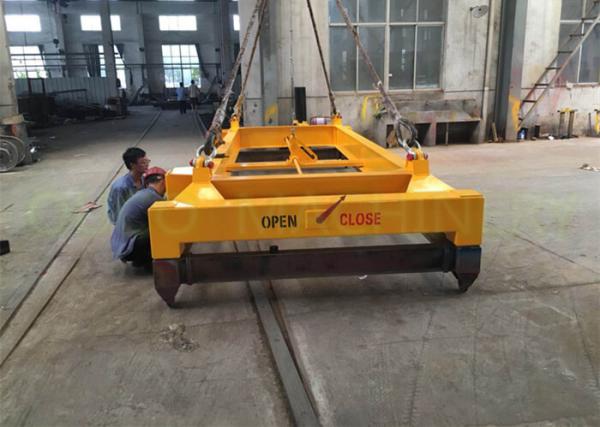

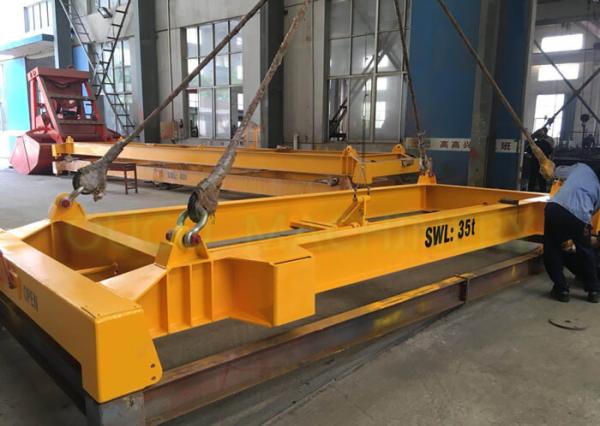

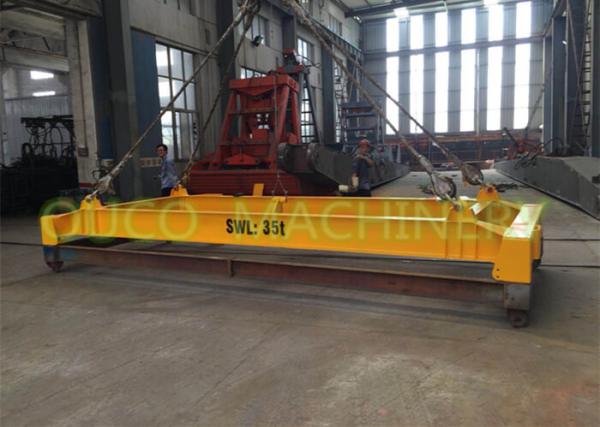

Product Images

Light Weight Semi Automatic Container Spreader Bar For Handling ISO Containers

Light Weight Semi Automatic Container Spreader Bar For Handling ISO Containers

Packing & Delivery

Light Weight Semi Automatic Container Spreader Bar For Handling ISO Containers

Light Weight Semi Automatic Container Spreader Bar For Handling ISO Containers
