Specifications
Brand Name :
OUCO
Model Number :
OUCO-CS-01
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Supply Ability :
200 sets per year
Delivery Time :
7 days
Packaging Details :
Shipping Container/Wood Crate/nude
Rated lifting load :
35-40t
Application :
Portal crane gantry crane plant crane
Color :
Customer Requirement
Type :
container spreader
Condition :
new
After-sales Service Provided: :
Engineers available to service machinery overseas
Description

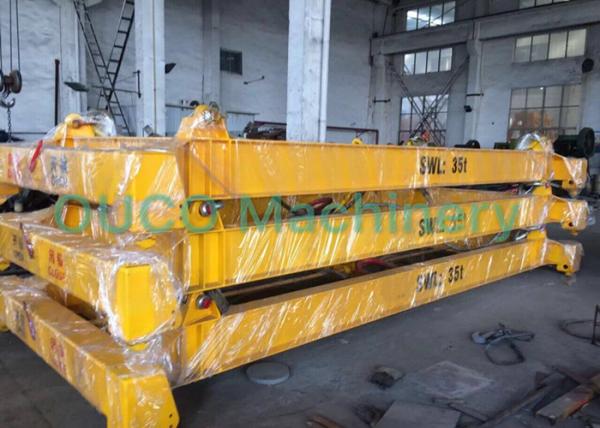

OUCO Port Equipment Container Spreader 20ft and 40ft

Product Description

The semi-automatic spreader is designed for the handling of 20 ft & 40 ft ISO containers with single or double hook jib cranes, in ports or on vessels. The twistlocks are activated by landing and lifting the spreader from the container by the crane operator. No hydraulic or electric systems are needed.
Standard and Heavy Duty Models are available.

Technical Parameters

For Operation With ISO Standard 20' Container For Operation With ISO Standard 40' Container
Rated Lifting Load 35t Rated Lifting Load 40t
Self-Weight 2t Self-Weight 3.5t
Allowable Load Eccentricity 10% Allowable Load Eccentricity 10%
Spring Stroke 100mm Spring Stroke 100mm
Ambient Temperature -20℃~ +45℃ Ambient Temperature -20℃~ +45℃
Twistlock Mode ISO Floating Twistlock, Driven by a Automatic Spring Twistlock Mode ISO Floating Twistlock, Driven by a Automatic Spring
Flippers Device No Power, Fixed Flippers Flippers Device No Power, Fixed Flippers
Application Portal Crane, Gantry Crane, Crane in the Plant Application Portal Crane, Gantry Crane, Crane in the Plant


Genernal Arrangement
