Standard Design Container Lifting Spreader , Semi - Automatic Lifting Beams Spreaders
Standard Design Container Lifting Spreader , Semi - Automatic Lifting Beams Spreaders
Standard Design Container Lifting Spreader , Semi - Automatic Lifting Beams Spreaders
Standard Design Container Lifting Spreader , Semi - Automatic Lifting Beams Spreaders
Standard Design Container Lifting Spreader , Semi - Automatic Lifting Beams Spreaders
Standard Design Container Lifting Spreader , Semi - Automatic Lifting Beams Spreaders
Standard Design Container Lifting Spreader , Semi - Automatic Lifting Beams Spreaders
Standard Design Container Lifting Spreader , Semi - Automatic Lifting Beams Spreaders
Specifications
Brand Name :
OUCO
Model Number :
OUCO-CS-00
Certification :
ISO9001
Place of Origin :
Jiangsu. China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per year
Delivery Time :
7 working days
Packaging Details :
Shipping Container/Wood Crate/nude
Rated Lifting Load :
35-40t
Application :
Portal Crane Gantry Crane Plant Crane
Type :
Container Spreader
Condition :
new
Color :
Customer Requirement
After-sales Service Provided :
Engineers Available To Service Machinery Overseas
Description

OUCO Standard Design 20'container/40'container Semi-Automatic Spreaders

Product Description

The semi-automatic spreader is designed for the handling of 20 ft & 40 ft ISO containers with single or double hook jib cranes, in ports or on vessels. The twistlocks are activated by landing and lifting the spreader from the container by the crane operator. No hydraulic or electric systems are needed. Standard and Heavy Duty Models are available.

Product Features

1. Semi-automatic container spreaders for 40ft/20ft standard container spreader adopts box-type end beam, so the structure is stable. The twist lock is leak proof structure, which protects the parts from rusting

2. Semi-automatic container spreaders for 40ft/20ft standard container spreader is four hoist points structure, which lighten the dead weight of the spreader, and enhance the stability of the spreader.

3. 20ft/40ft semi automatic container spreader adopt Heavy hammer type semi-automatic twist lock, manpower to turn the pin is no need any more, which highly improve the work efficiency and safety on spot.

4. Easy operation, stable structure, high work efficiency.

Technical Parameters

For Operation With ISO Standard 20' Container For Operation With ISO Standard 40' Container
Rated Lifting Load 35t Rated Lifting Load 40t
Self-Weight 2t Self-Weight 3.5t
Allowable Load Eccentricity 10% Allowable Load Eccentricity 10%
Spring Stroke 100mm Spring Stroke 100mm
Ambient Temperature -20℃~ +45℃ Ambient Temperature -20℃~ +45℃
Twistlock Mode ISO Floating Twistlock, Driven by a Automatic Spring Twistlock Mode ISO Floating Twistlock, Driven by a Automatic Spring
Flippers Device No Power, Fixed Flippers Flippers Device No Power, Fixed Flippers
Application Portal Crane, Gantry Crane, Crane in the Plant Application Portal Crane, Gantry Crane, Crane in the Plant

Genernal Arrangement

Standard Design Container Lifting Spreader , Semi - Automatic Lifting Beams Spreaders

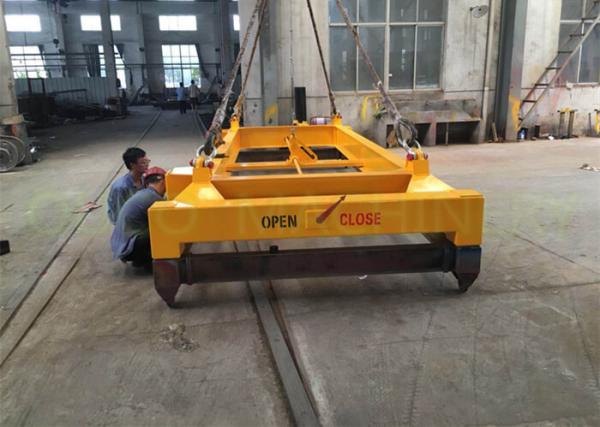

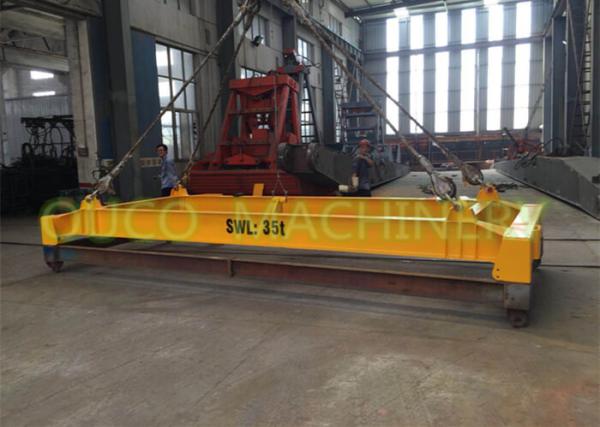

Product Images

Standard Design Container Lifting Spreader , Semi - Automatic Lifting Beams Spreaders

Standard Design Container Lifting Spreader , Semi - Automatic Lifting Beams Spreaders

Packing & Delivery

Standard Design Container Lifting Spreader , Semi - Automatic Lifting Beams Spreaders

Standard Design Container Lifting Spreader , Semi - Automatic Lifting Beams Spreaders

For more details, please feel free to contact me as below:

Standard Design Container Lifting Spreader , Semi - Automatic Lifting Beams Spreaders

Standard Design Container Lifting Spreader , Semi - Automatic Lifting Beams Spreaders
