High Reliability Twist Lock Spreader Energy Saving Low Power Consumption
High Reliability Twist Lock Spreader Energy Saving Low Power Consumption
High Reliability Twist Lock Spreader Energy Saving Low Power Consumption
High Reliability Twist Lock Spreader Energy Saving Low Power Consumption
High Reliability Twist Lock Spreader Energy Saving Low Power Consumption
High Reliability Twist Lock Spreader Energy Saving Low Power Consumption
High Reliability Twist Lock Spreader Energy Saving Low Power Consumption
High Reliability Twist Lock Spreader Energy Saving Low Power Consumption
Specifications
Brand Name :
OUCO
Model Number :
OUCO-20/40-CS
Certification :
CCS/BV/ABS
Place of Origin :
JIANGSU
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per year
Delivery Time :
45 days
Packaging Details :
Shipping Container/Wood Crate/nude
Material :
Q345B
Lifting capacity :
35-40t
Color :
Customer Requirement
Usage :
Unloading Cargo
After-sales Service Provided: :
Engineers available to service machinery overseas
Condition :
New
Description

Semi-Automatic Spreaders Port handling spreader 20 feet and 40 feet spreader

Product description:

The semi-automatic spreader is designed for the handling of 20 ft & 40 ft ISO containers with single or double hook jib cranes, in ports or on vessels. The twist locks are activated by landing and lifting the spreader from the container by the crane operator. No hydraulic or electric systems are needed.

Standard and Heavy Duty Models are available.

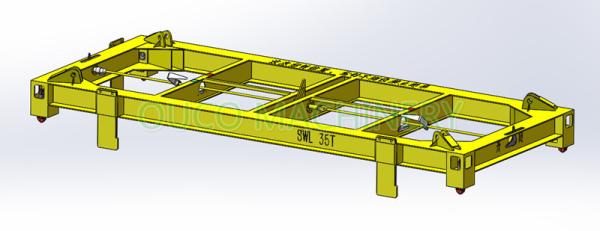

General Arrangement:

High Reliability Twist Lock Spreader Energy Saving Low Power Consumption

Technical Specifications:

For Operation With ISO Standard 20' Container For Operation With ISO Standard 40' Container
Rated Lifting Load 35t Rated Lifting Load 40t
Self-Weight 2t Self-Weight 3.5t
Allowable Load Eccentricity 10% Allowable Load Eccentricity 10%
Spring Stroke 100mm Spring Stroke 100mm
Ambient Temperature -20℃~ +45℃ Ambient Temperature -20℃~ +45℃
Twistlock Mode ISO Floating Twistlock, Driven by a Automatic Spring Twistlock Mode ISO Floating Twistlock, Driven by a Automatic Spring
Flippers Device No Power, Fixed Flippers Flippers Device No Power, Fixed Flippers
Application Portal Crane, Gantry Crane, Crane in the Plant Application Portal Crane, Gantry Crane, Crane in the Plant

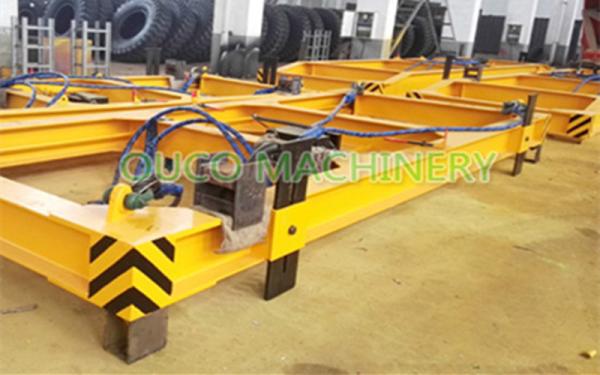

Production process at OUCO workshop:
High Reliability Twist Lock Spreader Energy Saving Low Power Consumption

Our Certificate:

High Reliability Twist Lock Spreader Energy Saving Low Power Consumption
