Specifications
Brand Name :
WEITONG MARINE
Model Number :
WT0506101
Certification :
CCS,Gl,Dnv,BV,ABS etc
Place of Origin :
China
MOQ :
1 PCS
Price :
$ 1200-1500/PCS
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
15days
Packaging Details :
Standard Export Packing -(Plywood pallet with plastic film wrapping)
Display :
LCD Display
Power Supply :
220VAC/110VAC 50Hz/60Hz
Capacity :
0.25-5.0
Standard :
15ppm
Key words :
Marine Oily Water Separator
Material :
Steel
Description

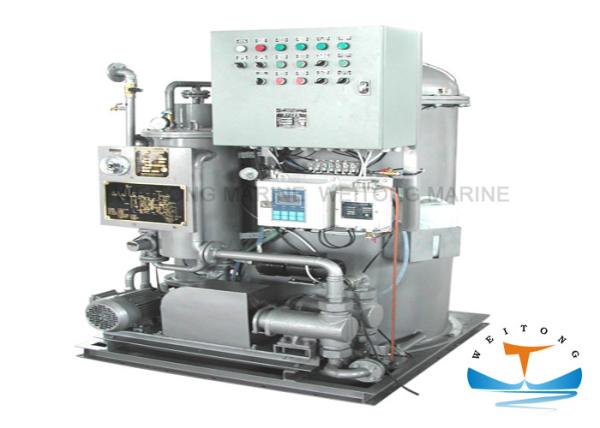

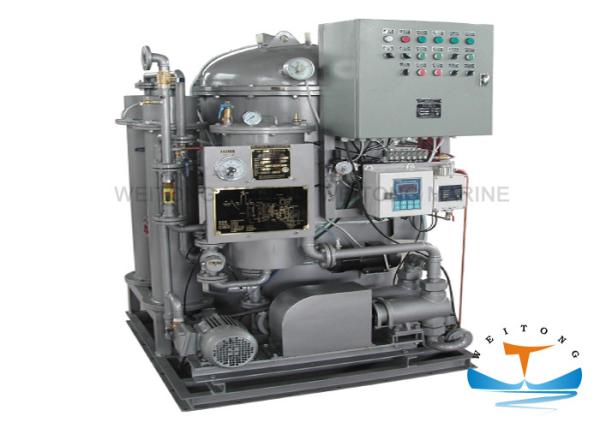

Marine 15PPM Bilge Oily Water Separator Bilge Water Separator Filter
Marine Oily Water Separator is a kind of environmental protection product designed in according with the International Maritime Organization IMO MEPC 107(49) standard, the oil content in effluent water ≤15ppm, and the standard of the IMO MEPC107.(49),Solas approval.
Marine Oily Water Separator is of 9 types with the capacity from 0.25m3/h to 5.00 m3/h, The smallest type is YWC-0.25 which can be installed on ship less than 1000DWT. The biggest type is YWC-5.00 which can be installed on ship more than 300 thousand DWT. This separator can also be used in industrial and petroleum, besides in ship vessels. The effluent oil content from YWC can meet any standards of Environment Bureau in international.

Product advantage:
1. 3 stages filter treatment
1) the 1st and 2nd stage fiber filter
2) 3rd stage membrane permeation
2 . Imported spare parts
England Mono pump,
Germany Schneider electric control box,
Germany DECKMA 15ppm bilge alarm
3. Wide range of application
Our oily water separator can be used for seaport, dock, industry, petroleum, various vessels etc.

Specification

YWC-0.25 YWC-0.50 YWC-1.00 YWC-1.50 YWC-2.00 YWC-2.50 YWC-3.00 YWC-4.00 YWC-5.00
Rating/ MAX Capacity (m3) 0.25/0.31 0.5/0.62 1.0/1.25 1.5/1.87 2/2.25 2.5/3.12 3/3.75 4.0/5.0 5/6.25
Power of Pump (kw) 0.75 1.1 1.1 1.1 2.2 2.2 3 3 3.75
Electric Heater Power (kw) 1KW 3KW option option option - - - -
Steam Heater (m2/kw) - - 1/30 1/45 2/60 2/75 3/90 4/120 5/150
Electrical System AC 380V,50Hz,3φ/ AC 415V,50Hz,3φ/AC 440,60Hz,3φ/AC 480V,60HZ,3φ
Power of The Electric Motor 0.37kw 0.55kw 0.75kw 1.1kw 1.1kw 1.5kw 1.5kw 2.2kw 2.2kw
Suction Head Not more than 6m-H2O
Pressure of The Discharged Water 5-10m-H2O
15ppm Bilge Alarm Included
Base(mm) 1000*600 1100*690 1050*1080 1100*1130 1900*1120 1900*1120 1700*1500 2280*1700 2590*2000
Height (mm) 1320 1460 1500 1660 1700 1900 2020 1820 1900
Dry/Wet Weight 300/450 600/800 800/860 1060/1810 1260/2260 1500/2800 1800/3200 2100/3900 2500/4600
Application Ship Vessel (DWT) <1000 1000∼5000 5000∼10000 10000∼30000 30000∼50000 50000∼100000 100000∼200000 100000∼300000 >300000
