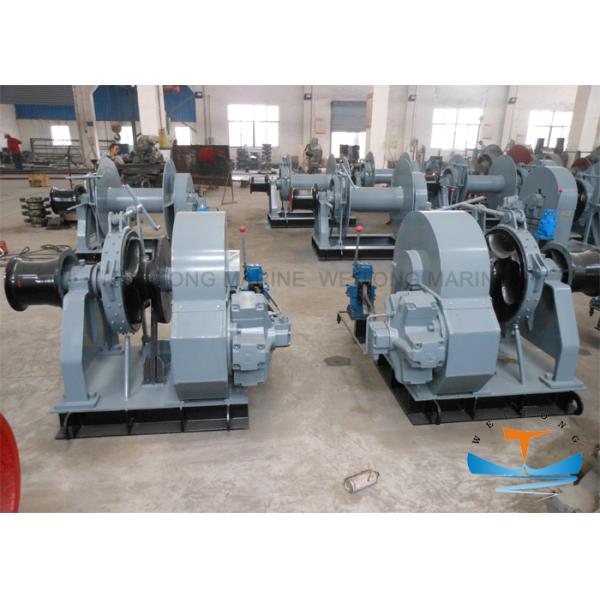

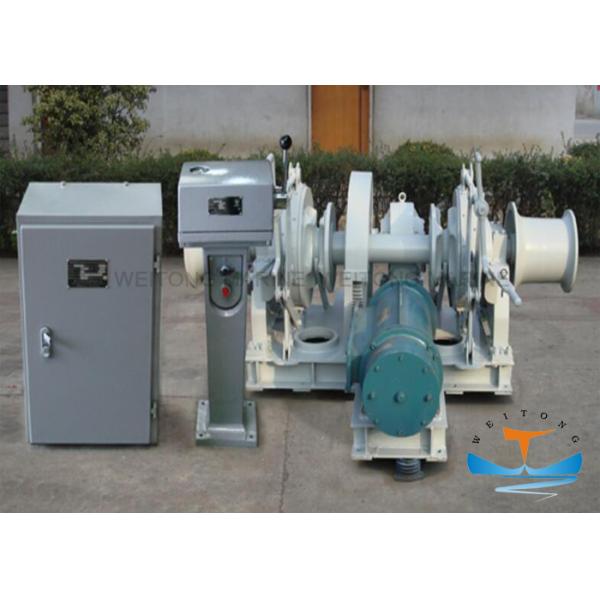

Iron Small Anchor Windlass , Marine Anchor Winch Two Gypies For Raising Anchor
Iron Small Anchor Windlass , Marine Anchor Winch Two Gypies For Raising Anchor
Iron Small Anchor Windlass , Marine Anchor Winch Two Gypies For Raising Anchor
Iron Small Anchor Windlass , Marine Anchor Winch Two Gypies For Raising Anchor
Iron Small Anchor Windlass , Marine Anchor Winch Two Gypies For Raising Anchor
Iron Small Anchor Windlass , Marine Anchor Winch Two Gypies For Raising Anchor
Specifications
Brand Name :
WEITONG MARINE
Model Number :
WT0101002
Certification :
CCS,ABS,BV,GL etc.
Place of Origin :
China
MOQ :
1 PCS
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
40days
Packaging Details :
Standard Export Packing
Material :
Iron or Steel
Chain Dia. :
12.5-50mm
Power :
Hydraulic
Control :
Local/remote control
Warping load :
5 -50 (KN)
working load :
5.9KN to 106.3 KN
Specification :
As per request
Description

Electric/Hydraulic Horizontal Marine Anchor Windlass with Two Gypies

Marine anchor windlass is a machine that was designed to raise and lower the anchor by means of anchor chain. Horizontal anchor windlass and vertical anchor windlass are available , we can offer maximum Φ142 gypsy. Windlass makes use of an integral gearbox and motor assembly, all typically located above deck, with a horizontal shaft through the unit and wheels for chain and/or rope on either side. The driven type is electric. Weitong Marine can offer customization service for your application to customize anchor windlass according to your requirment or drawings.

Features
* Reasonable compact structure design
* Small size, light weight
* Nice appearance
* Perfect starting and working efficiency
* Large torque and good stability
* Less noise
* Easy and safe operation,
* Perfect erosion resistant coating,
* Easy installation and low maintenance

Certificate
* Classification Society: CCS, ABS, BV, DNV, GL, RINA, LR, RMRS, etc.
* NDT reports
* Official certificates

Electric/Hydraulic Horizontal Marine Anchor Windlass with Two Gypies Specification

Electric Anchor Windlass
Chain Dia (mm/Φ) Working Load(KN) Supporting load(KN) Speed (m/min) Warping load (KN) Motor Power (KW)
12.5 5.9 30 9 5 3/1.2
14 8.3 51 9 8 3/1.2
16 10.9 67 9 8 4/1.7
17.5 13 80 9 8 4/1.7
19 15.3 95 9 10 4.3/1.7
20.5 17.9 110 9 10 6/2.5
22 20.6 126 9 10 5/7.5/5
24 24.5 149 9 20 8.5/3.5
26 28.7 175 9 20 11/11/7.5
28 33.3 202 9 30 11/11/7.5
30 38.3 231 9 30 11/11/7.5
32 43.5 261 9 30 16/16/11
34 49.1 294 9 30 16/16/11
36 55.1 329 9 30 16/16/11
38 61.4 365 9 40 22/22/16
40 68 402 9 40 22/22/16
42 75 442 9 40 22/22/16
44 82.3 483 9 50 30/30/22
46 89.9 526 9 50 30/30/22
48 97.9 570 9 50 30/30/22
50 106.3 617 9 50

30/30/22

Quality Assurance and Service
1. Complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., double check is a must.
4. Advanced facility
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. On time delivery as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service

If you have any comment or inquiry, please feel free to contact us for more details
Ms Kate
Tel: +86-756-8169003
Phone: +86-13923317268


sales@weitongmarine.com


Ohter Product Photos
Iron Small Anchor Windlass , Marine Anchor Winch Two Gypies For Raising AnchorIron Small Anchor Windlass , Marine Anchor Winch Two Gypies For Raising Anchor
