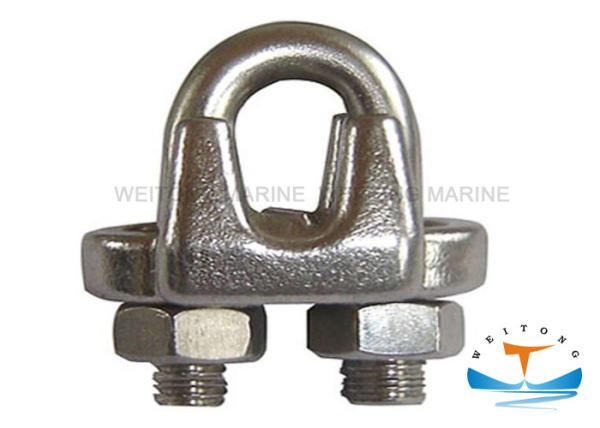

Us Type G450 Malleable Galvanized metal Wire Rope Clip Size 1/8'' - 3
Us Type G450 Malleable Galvanized metal Wire Rope Clip Size 1/8'' - 3
Specifications
Brand Name :
WEITONG MARINE
Model Number :
WTRL720
Certification :
MC
Place of Origin :
China
MOQ :
10 PCS
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
15days
Packaging Details :
Export Standard Packing
Material :
Iron, Carbon Steel, Stainless
surface :
Polished
Specification :
Wire Rope Clip
Standard :
Us, DIN, GB
Size :
1/8''- 3"
Process :
Drop Forged
Description

US type G450 malleable Galvanized Wire rope Clip

Commodity name US Type G450 Malleable Wire Rope Clips
Brand name WT
Usage Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings
Main standard US Type Wire Rope Clip,Type A Wire Rope Clip,Din741 Wire Rope Clip,Din1142 Wire Rope Clip,Type B Wire Rope Clips,etc.
Material Carbon steel, Alloy steel, Stainless steel 304 or 316
Finish Hot Dipped Galvanized, Electro Galvanized, Color Painted, High polished, Mirror Polished
Technology Drop forged, Precision Casting
Size Standard 1/8" to 1 1/2" for US Type Malleable Wire Rope Clips,or as Customers' Requirements.
M.O.Q 100PCS per Size
Packing Gunny bag or carton and pallet / by customer requirements.
Delivery time 10-20days after order confirmation
Payment term T/T, L/C, Western Union
Business type Manufacturer, trading
Certifications ISO9001,CE,BV,SGS
Notes Special specifications and marks can be made according to customers requirements;
Main products Eye bolts,Shackles,Turnbuckles,Wire Rope Clips,Load binders,Lifting Hooks,Connecting Links,Master Links,Swivels and many other rigging hardwares.

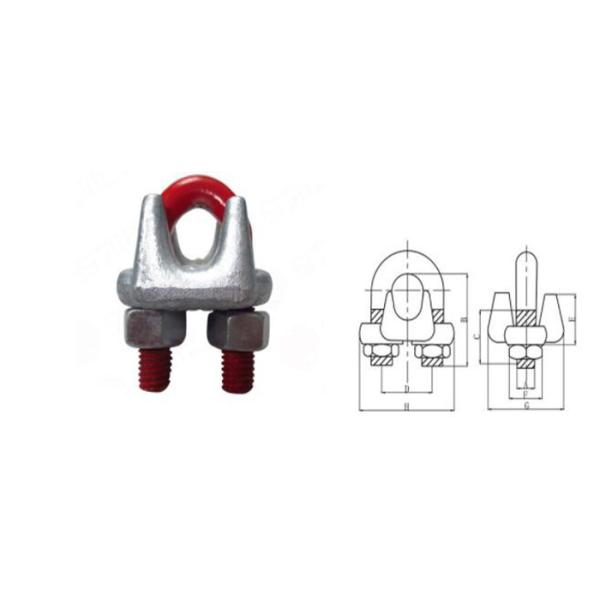

Us Type G450 Malleable Galvanized metal Wire Rope Clip Size 1/8'' - 3

Size(in) Dimensions(mm) Weight100pcs(g)
A B C D E F G H
1/8 0.22 0.72 0.44 0.47 0.37 0.38 0.81 0.99 6
3/16 0.25 0.97 0.56 0.59 0.5 0.44 0.94 1.18 10
1/4 0.31 1.03 0.5 0.75 0.66 0.56 1.19 1.43 19
5/16 0.38 1.38 0.75 0.88 0.73 0.69 1.31 1.66 28
3/8 0.44 1.5 0.75 1 0.91 0.75 1.63 1.94 48
7/16 0.5 1.88 1 1.19 1.13 0.88 1.91 2.28 78
1/2 0.5 1.88 1 1.19 1.13 0.88 1.91 2.28 80
9/16 0.56 2.25 1.25 1.31 1.34 0.94 2.06 2.5 109
5/8 0.56 2.25 1.25 1.31 1.34 0.94 2.06 2.5 110
3/4 0.62 2.75 1.44 1.5 1.39 1.06 2.25 2.84 142
7/8 0.75 3.12 1.62 1.75 1.58 1.25 2.44 2.16 212
1 0.75 3.5 1.81 1.88 1.77 1.25 2.63 3.47 252
1 1/8 0.75 3.88 2 2 1.91 1.25 2.81 3.59 283
1 1/4 0.88 4.44 2.22 2.34 2.17 1.44 3.13 4.13 438
1 3/8 0.88 4.44 2.22 2.34 2.31 1.44 3.13 4.19 442
1 1/2 0.88 4.94 2.38 2.59 2.44 1.44 3.41 4.44 544
1 5/8 1 5.31 2.62 2.75 2.66 1.63 3.63 4.75 704
1 3/4 1.13 5.75 2.75 3.06 2.92 1.81 3.81 5.24 934
2 1.25 6.44 3 3.38 3.03 2 4.44 5.88 1300
2 1/4 1.25 7.13 3.19 3.88 3.19 2 4.56 6.38 1600
2 1/2 1.25 7.69 3.44 4.13 3.69 2 4.69 6.63 1900
2 3/4 1.25 8.31 3.56 4.38 4.88 2 5 6.88 2300
3 1.5 9.19 3.88 4.75 4.44 2.38 5.31 7.61 3100
3 1/2 1.5 10.75 4.5 5.5 6 2.38 6.19 8.38 4000
