Yokohama Type Pneumatic Rubber Fender
Yokohama Type Pneumatic Rubber Fender
Yokohama Type Pneumatic Rubber Fender
Yokohama Type Pneumatic Rubber Fender
Yokohama Type Pneumatic Rubber Fender
Yokohama Type Pneumatic Rubber Fender
Specifications
Brand Name :
Lu Hang
Model Number :
LH2540
Certification :
CCS/BV/ABS/SGS
Place of Origin :
Qingdao, China
MOQ :
1 Unit
Price :
To be negotiated
Payment Terms :
T/T, L/C
Supply Ability :
30 Units Per Month
Delivery Time :
10-15 work days
Packaging Details :
Inflated or Deflated on Pallet
Name :
Yokohama Type Pneumatic Rubber Fender/Marine Fender/Yokohama Fender
Application :
Port, LNG Vessel, Bulk Carrier
Type :
50kPa Or 80kPa
Structure :
With Chain Tyre Net
Feature :
No Air Leakage, Low Reaction, Low Cost
Standard :
ISO17357-2014/CCS / BV / LR / ISO17357/DNV/SGS
Description

Yokohama Type Pneumatic Rubber Fender​

Introduction

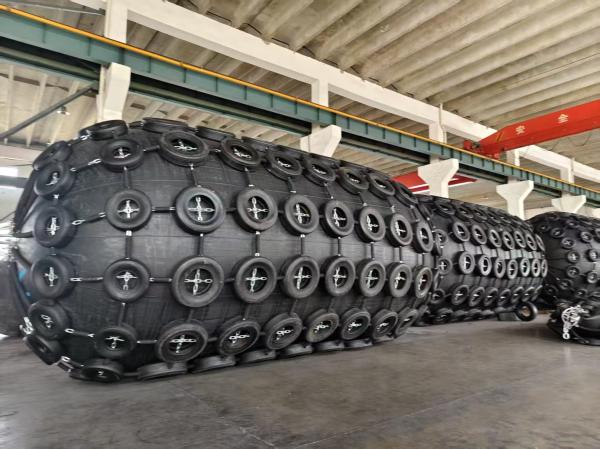

Yokohama Type Pneumatic Rubber Fender

The Yokohama Type Pneumatic Rubber Fender revolutionizes ship berthing with its innovative design, utilizing air as the primary buffering medium. By efficiently absorbing impact energy through compressed air, it ensures vessels dock smoothly, safeguarding ships from collision - related damage. This cutting - edge fender is engineered with multiple advanced features, making it a top - choice for maritime applications.​

Unparalleled Performance and Durability ​

One of its most significant advantages lies in its remarkable deflatability. This feature enables effortless, cost - effective relocation and reinstallation across various sites. The fender also boasts high - pressure resistance, superior energy - absorption capabilities, and minimal reactive force. Its robust construction provides excellent resistance to aging and saltwater corrosion, ensuring long - term reliability even in harsh marine environments. Additionally, it supports berthing operations at angles of up to 15 degrees, accommodating diverse vessel types and docking scenarios.​
Comprehensive Specifications and Configurations​
Available in an extensive range of sizes, from D0.5mL1m to D4.5mL12m, the Yokohama Type Pneumatic Rubber Fender can meet the specific requirements of different maritime projects. It offers flexible protection options, allowing users to choose between using tire net chains for enhanced safeguarding or operating without them based on their needs.​​

Size/

D*L

 (50kPa)at 60%compression (80kPa)at 60%compression

GEA/

(KNm)

RF/

(KN)

GEA/

(KNm)

RF/

(KN)
0.5mx1.0m 6 64 8 80
0.6mx1.2m 10 86 13 108
0.7mx1.5m 17 137 21 171
1.0mx1.5m 32 181 40 266
1.35mx2.5m 100 426 125 533
1.5mx3.0m 153 579 191 724
1.7mx3.0m 190 637 238 796
2.0mx3.5m 308 875 385 1,094
2.5mx4.0m 663 1,380 829 1,725
2.5mx5.5m 932 2,010 1,658 2,513
3.0mx5.0m 1,050 2,030 1,313 2,538
3.3mx6.5m 1,814 3,015 2,534 3,961
3.5mx6.0m 2,018 3,286 2,523 4,018
4.5mx9.0m 4,752 5,747 6,633 7,551

Extensive Applications​
This versatile fender finds widespread use across a multitude of maritime vessels and structures, including oil tankers, container ships, yachts, ocean platforms, large wharves, and naval ports. Its adaptability to ship berthing from all directions has made it a staple in various port operations.​
Features Of Yokohama Type Pneumatic Rubber Fender

● High strength and friction resistance.
● High energy absorption with a low reaction force
● Adjusted performance by varying internal pressure
● Low and easy maintenance
● Low transportation costs – pneumatic fenders can be deflated and folded for transport
● Easily deflatable to be used in a different location and to be stored on deck

Yokohama Type Pneumatic Rubber Fender

Trusted Supplier​

Yokohama Type Pneumatic Rubber Fender

LUAHNG marine, a leading professional manufacturer of marine equipment in China, proudly offers the Yokohama Type Pneumatic Rubber Fender. Committed to providing products at the most competitive prices, LUAHNG ensures that customers receive exceptional value without compromising on quality. For more information or to place an order, please reach out to LUAHNG.
