Tug cylindrical fenders
Tug cylindrical fenders
Specifications
Brand Name :
Qingdao luhang
Model Number :
LH-6
Certification :
CCS,BV,LR,DNV,SGS,ABS
Place of Origin :
china
MOQ :
1 units
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
negotiable
Delivery Time :
8 work days
Description

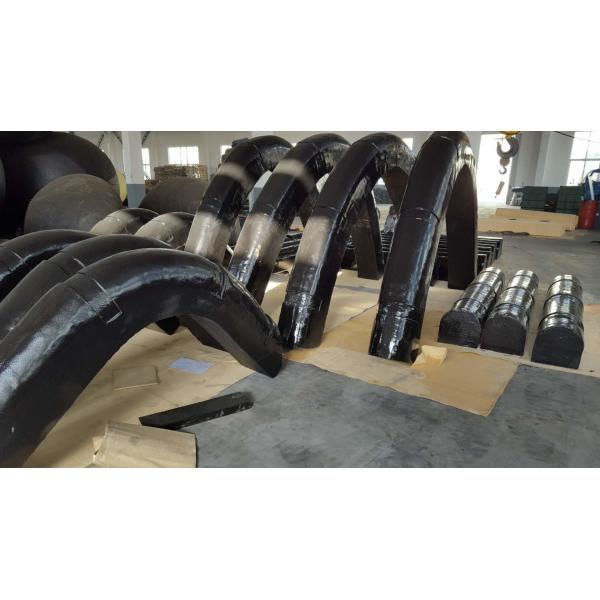

Tug cylindrical fenders
Tugboat Fenders are mainly used at all kinds of harbor tugboats, installed at bow, board and aft. Rubber Fenders adopts integral molding vulcanization workmanship to obtain good performance, long service life and easy installation
Tug cylindrical fenders

TUG FENDERS INTRODUCT

Tug fenders must work under more extreme conditions than any other fender type. Tugs may be fitted with many types of fendereach type serving a particular application.

When selecting fenders, designers should consider contact loads, Pushing angles, friction and etc.

Tug cylindrical fenders

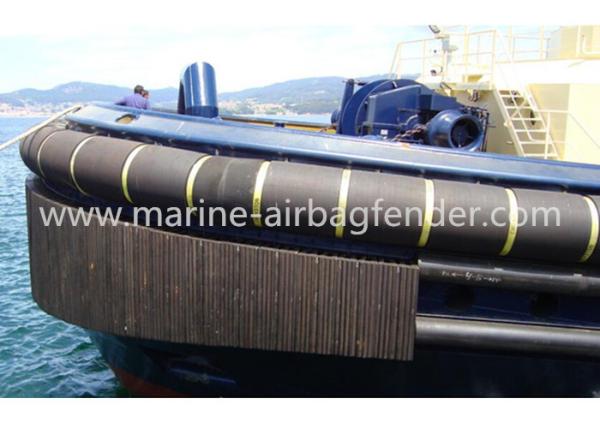

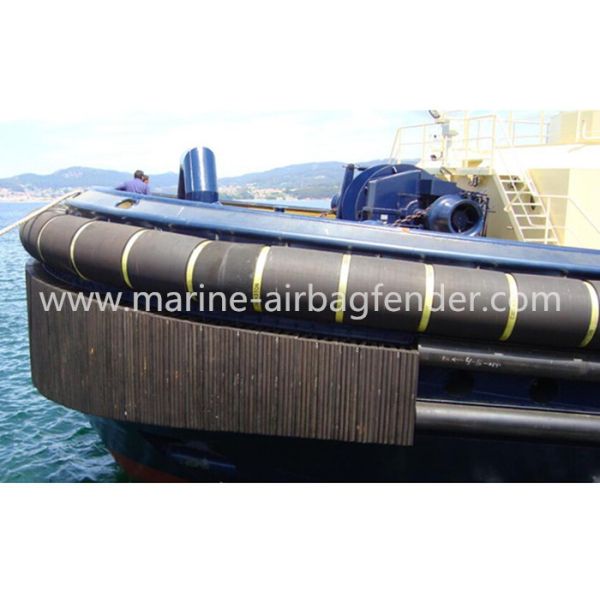

A. Cylindrical fenders:Fitted to the bow/stern of tugs and usually used topush against flared hulls andin open sea conditions.

B. Pushing fenders:Keyhole, Square and W-and M-fenders provide large contact surfaces for low hull pressures. Their grooved surfaces provide exceptional grip.

C. Side beltings:D, Square and Composite fenders are often used as side beltings to protect the vessel during escort duties and when coming alongside.

D. Stern of tugs:Usually use Cylindricalfenders or any other types.

ФD Φd Amax Bmax C ΦG ΦJ Weight
250 125 200 570 500 190 75 48
300 150 225 600 700 225 75 58
350 175 250 650 800 250 85 94
400 200 300 670 800 300 100 123
450 225 300 700 850 350 100 155
500 250 300 730 900 375 100 191
600 300 350 800 900 450 125 276
800 400 350 930 1000 600 125 490
900 450 350 1000 1100 675 150 620
1000 500 350 1060 1200 750 150 766

[Units: mm, kg/m]

Attachment:Smaller fenders (<500mm diameter) are usually fixed by a longitudinal chain through the bore of the fender,

connected to the hull by turnbuckles to tension the chain.

Larger fenders often use supplementary chains or straps around the fender.
