Dount Fender
Dount Fender
Dount Fender
Dount Fender
Dount Fender
Dount Fender
Specifications
Brand Name :
Luhang
Model Number :
LHA2
Certification :
ISO14409
Place of Origin :
Qingdao, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100pcs / month
Delivery Time :
10 ~ 15 working days
Packaging Details :
Film packing on palllet
Description

Dount Fender

Products Description

Dount Fender

Hardcore industrial aesthetics, where every detail embodies unyielding reliability.

As the buffer guardian between ports and vessels, it safeguards smooth and safe berthing with robust structure and precise parameters.

Port donut-shaped fenders... Crafted by Luhang.

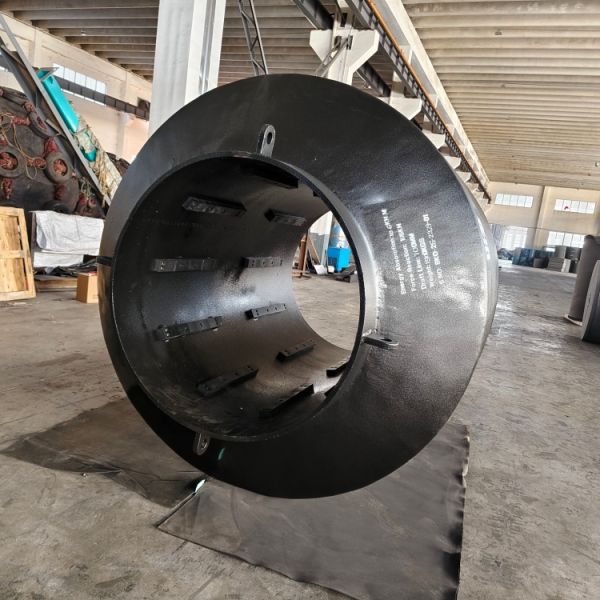

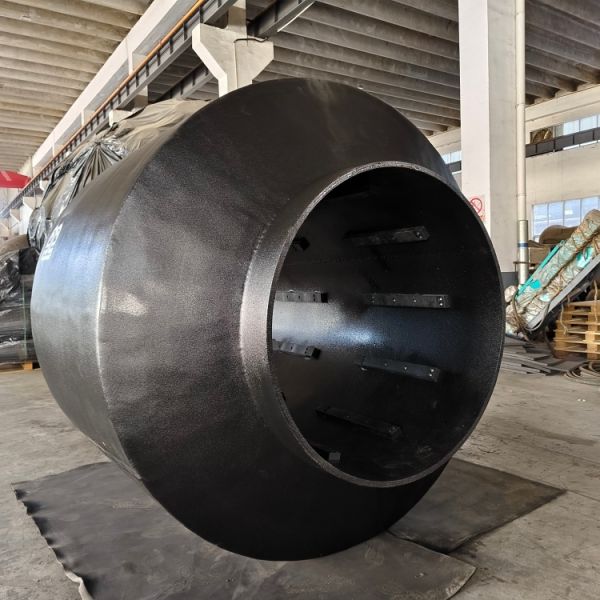

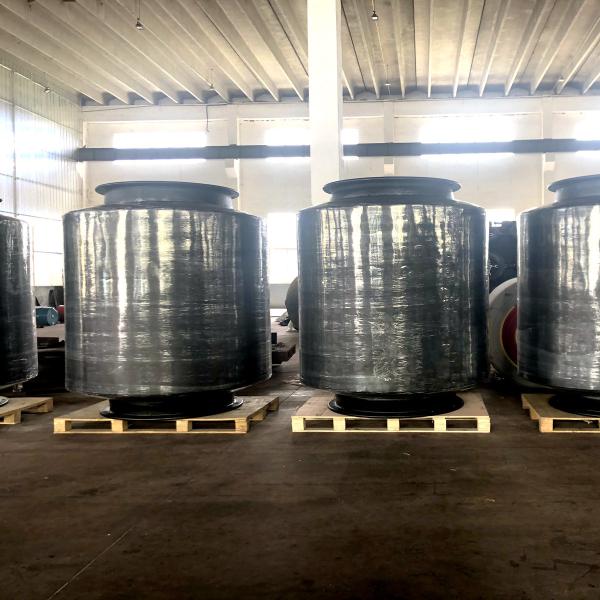

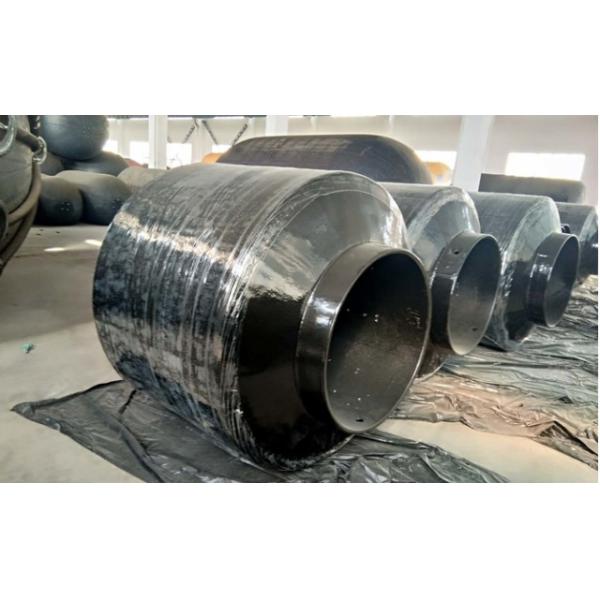

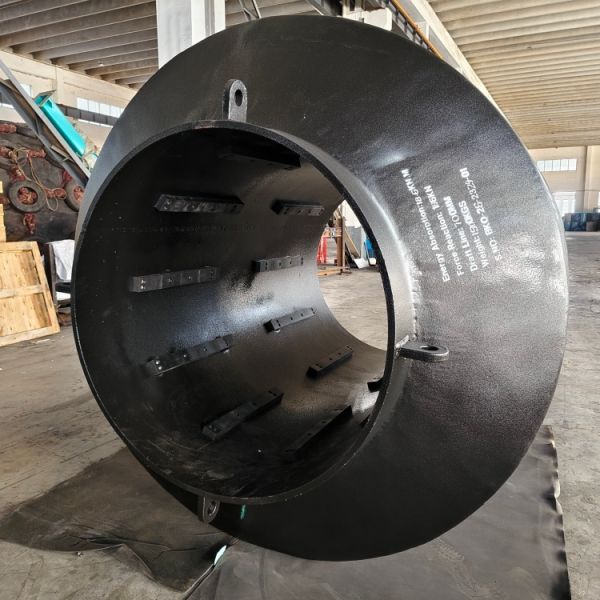

LUHANG donut fender is a specific type of foam fenders. It is designed to simply slip over a stationary monopile. Due to its construction, the foam fender floats up and down with the fluctuating water levels, rotates when vessels berth and slide along the fender.

Applications

Locks and dry dock entrances

Corner protection and Bridge protection

Submarine jetties

Roro berths

Areas with large tidal variations

Lead the voyage in a narrow channel

Specification

Dount Fender

D / (mm) D / (ft) Ø P / (mm) Ø P / (ft) H=1m EA / (KNm) H=1m RF / (KN) H=1ft EA / (ft-kip) H=1ft RF / (kip)
1270 4.2 610 2.0 7.2 116 1.6 7.9
1450 4.8 710 2.3 9.2 131 2.1 9.0
1520 5.0 762 2.5 10.5 140 2.4 9.6
1780 5.8 914 3.0 14.1 162 3.2 11.1
1910 6.3 995 3.3 16.4 175 3.7 12.0
2030 6.7 1067 3.5 18.6 186 4.2 12.8
2210 7.3 1185 3.9 22.3 204 5.0 14.0
2290 7.5 1219 4.0 23.6 210 5.3 14.4
2490 8.2 1345 4.4 28.0 229 6.3 15.7
2540 8.3 1372 4.5 29.3 234 6.6 16.0
2790 9.2 1524 5.0 35.3 256 7.9 17.6
2970 9.7 1636 5.4 40.1 273 9.0 18.7
3050 10.0 1676 5.5 42.1 280 9.5 19.2
3300 10.8 1829 6.0 49.5 304 11.1 20.8
3450 11.3 1933 6.3 54.6 319 12.3 21.9
3530 11.6 1981 6.5 57.2 327 12.9 22.4
3810 12.5 2134 7.0 65.9 350 14.8 24.0
3960 13.0 2241 7.4 72.1 366 16.2 25.1
4060 13.3 2286 7.5 75.1 374 16.9 25.6
4220 13.8 2388 7.8 81.3 389 18.3 26.7

Note: Cusomized size available
