Specifications
Brand Name :
Luhang
Model Number :
Heavy Lifting Airbags
Certification :
CCS,ABS,BV,LR
Place of Origin :
Qingdao, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100pcs / month
Delivery Time :
10 ~ 15 working days
Packaging Details :
Film packing on palllet
Product Name :
High-Pressure Heavy Lifting Airbags
Material :
Mixed Rubber With Natural Rubber And Carbon
Color :
Black
Size :
Customer's Ruquirement
Usage :
Ship Launching,ship Rubber Marine Salvage Lift Bags
Packing :
Pallet
Working Pressure :
0.05MPa-0.25MPa
Description

Heavy Lifting Marine Rubber Airbags

Heavy Lifting Marine Rubber Airbags are essential equipment for marine operations, mainly used in ship launching/landing, heavy cargo lifting and moving, as well as salvage and buoyancy assistance. Composed of outer rubber layer, inner rubber layer and synthetic tire cord layer, they boast high load-bearing capacity, enabling them to handle ships up to 10,000 tons and hundreds of tons of heavy goods. With excellent aging resistance and wear resistance, these airbags are flexible and reliable—they require no large machinery, are less restricted by sites, and can be reused, effectively shortening project cycles and reducing costs, thus widely recognized in the global shipbuilding and port construction industries.​

High-Pressure Heavy Lifting Airbags

Solution Advantages

Saving

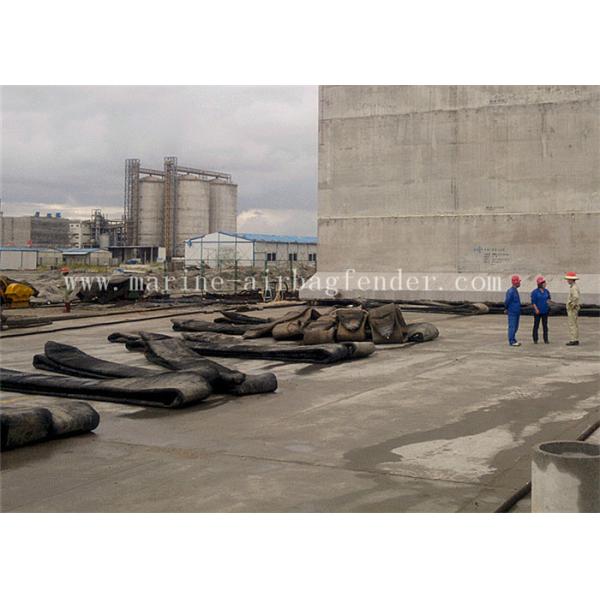

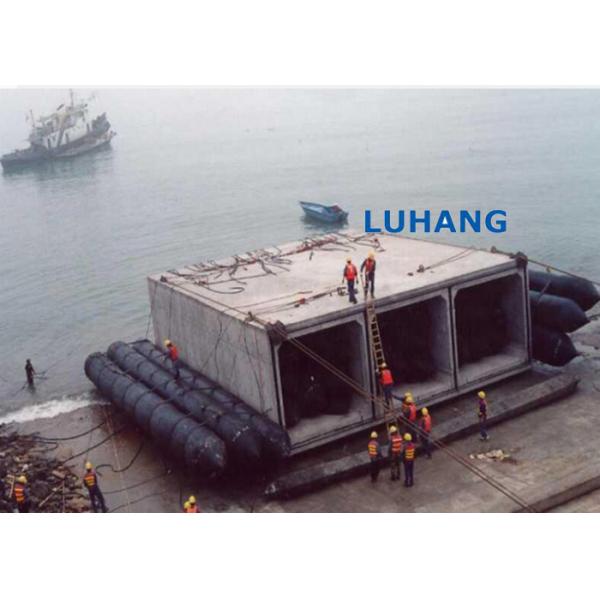

Moving caisson with airbags can cut off 70% budget comparing with trolley method.

Safe

Airbags have big contact area with transported object, the low reaction force is good for structure safety.

Convenient

Air bags can move structure strightly in line or steer structure to anywhere.

Specification and Model

You can choose the required diameter and effective length to meet your projects. The below specification only is our standard specification arrange. Other specifications high-pressure heavy lifting airbags also can be supplied upon clients' request.

Air Bag Parameter High-pressure Heavy Lifting Airbags Size
Product Name ship launching marine rubber airbags
Airbags Diameter (m) 0.8 ~ 2.5m, or customized diameter
Effective Length (EL) 6 ~ 25m, or customized length
Total Length (TL) 7 ~ 27m, or customized length
Loading Capacity 10 ~ 40 ton/m, or customized capacity
Model of Airbags QP-ordinary, QG-high-bearing, QS-superhigh bearing

Heavy lifting airbags are categorized by the following three types according to the bearing capacity, per meter in length. We define the number of layers, which means the number of Synthetic-tyre-cord layers, in order to confirm the Safety Working Pressure. Another type is available upon clients' request.

01

QP

Ordinary airbag - with 3, 4 or 5 layers of cord fabric.

02

QG

High-bearing capacity airbag - with 6, 7, or 8 layers of cord fabric.

03

QS

Superhigh-bearing capacity airbag - with 9, 10, or more layers of cord fabrics as a custom request.

Products details

High-Pressure Heavy Lifting Airbags

High-Pressure Heavy Lifting AirbagsHigh-Pressure Heavy Lifting AirbagsHigh-Pressure Heavy Lifting AirbagsHigh-Pressure Heavy Lifting Airbags

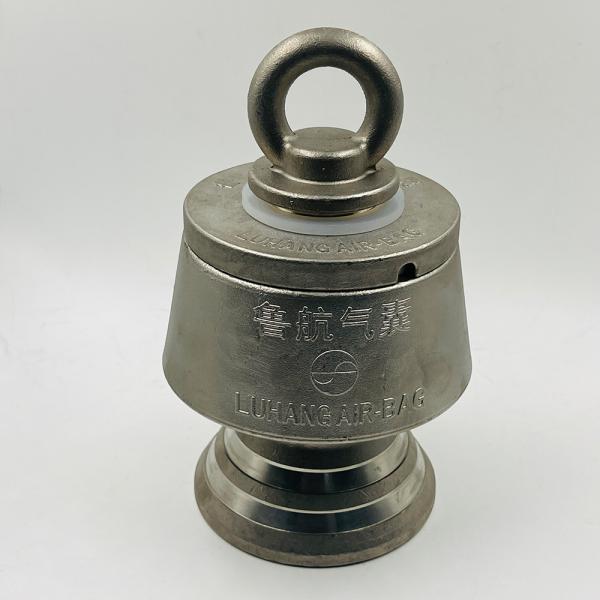

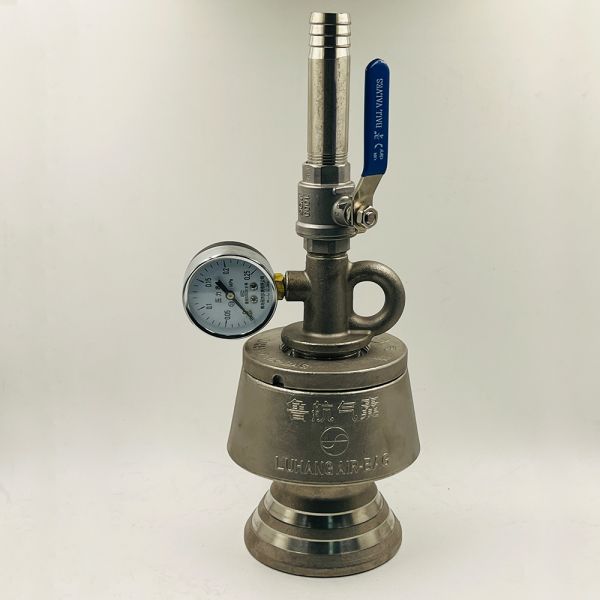

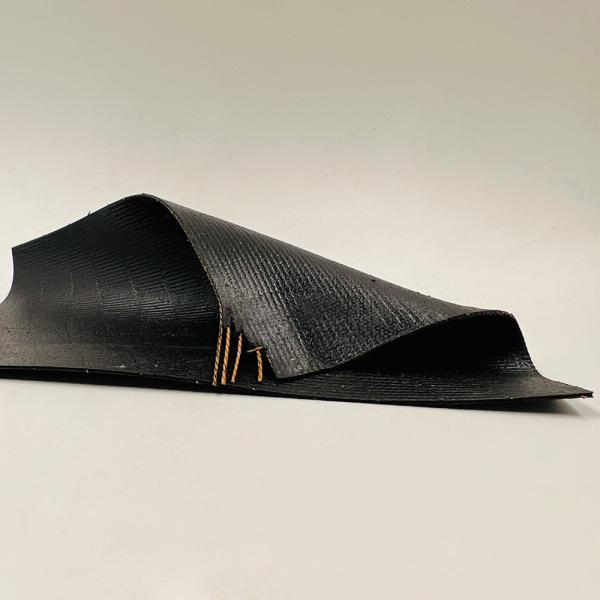

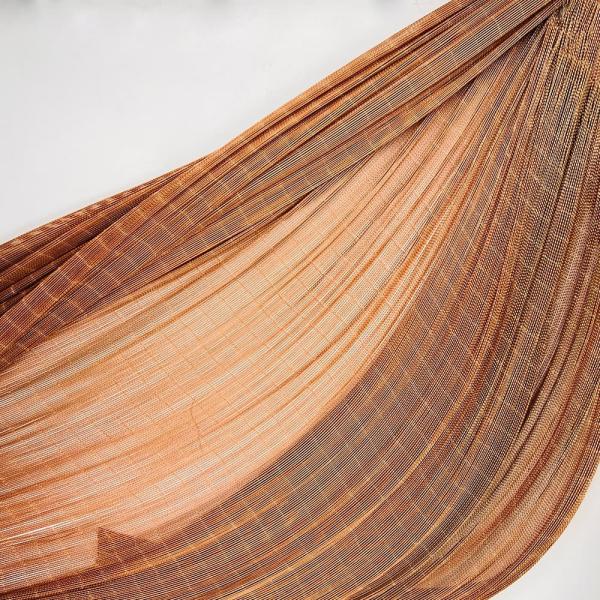

Cord Fabric Air Inlet End Air Inlet End Air Tightness Swivel End

airbag Application

High-Pressure Heavy Lifting AirbagsHigh-Pressure Heavy Lifting AirbagsHigh-Pressure Heavy Lifting Airbags

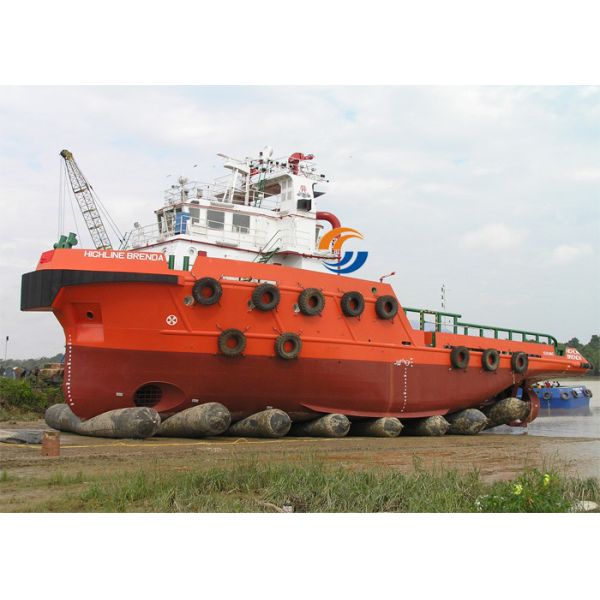

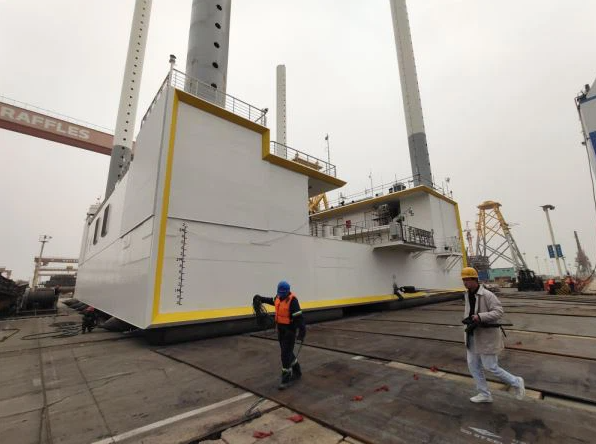

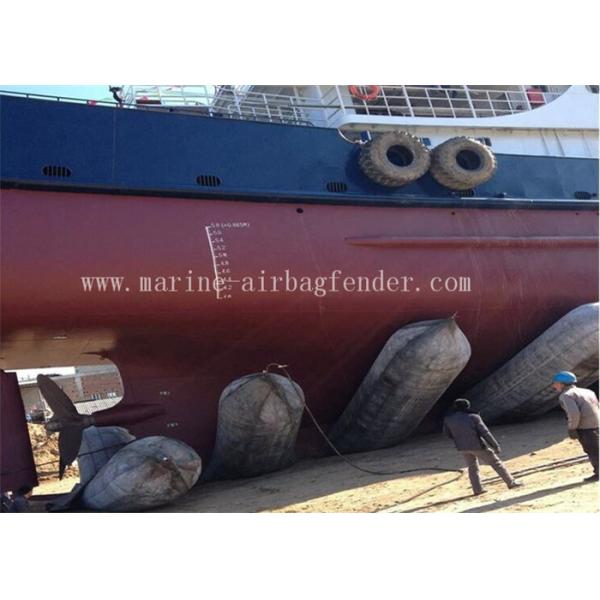

Ship Launching Ship Lifting Buoyancy Support

High-Pressure Heavy Lifting AirbagsHigh-Pressure Heavy Lifting AirbagsHigh-Pressure Heavy Lifting Airbags

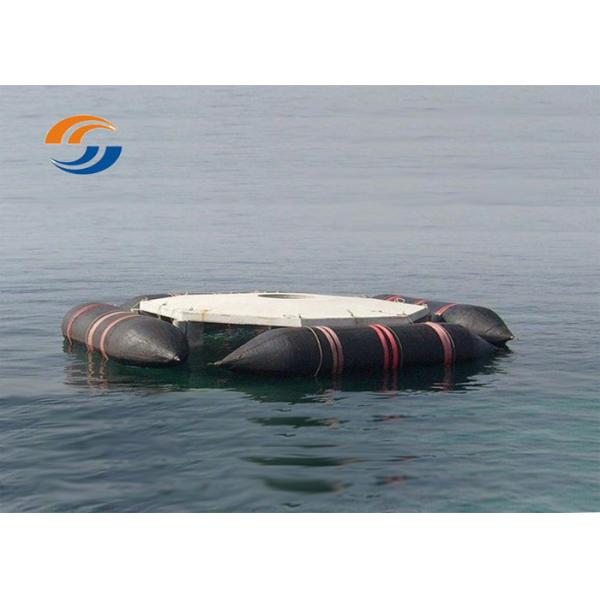

Heavy Lifting Pipeline Buoyancy Airbag Marine Salvage

Airbag production process
