Compact Desktop Blister Sealing Machine with Customizable Molds, 230 × 130 mm Sealing Area, and 6-10 Cycles per Minute Output
Compact Desktop Blister Sealing Machine with Customizable Molds, 230 × 130 mm Sealing Area, and 6-10 Cycles per Minute Output
Specifications
Brand Name :
China, Xingyuan
Model Number :
LD841
Certification :
CE ISO2013
Place of Origin :
China, Xingyuan
MOQ :
1
Price :
USD 1000-2000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
888 sets/month
Delivery Time :
7-10 days
Packaging Details :
wooden frame
Description
New Release | LD841 Desktop Blister Sealing Machine

The LD841 Desktop Blister Sealing Machine is a newly developed compact sealing solution designed to meet the growing needs of pharmaceutical packaging, food trays, capsule blisters, and laboratory sample production. Despite its small size, it delivers sealing quality comparable to automated blister machines. Its customizable molds allow sealing of various shapes, making it ideal for small-batch manufacturing, product prototyping, and cost-effective packaging operations.

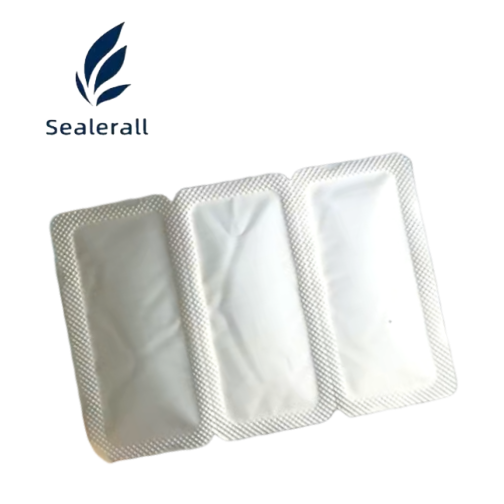

The LD841 supports 1-cavity, 2-cavity, and 4-cavity layouts, with a maximum sealing area of 230 × 130 mm and an output of 6–10 cycles per minute. Featuring pneumatic sealing, a precision guide rail system, stable PLC control, and digital temperature regulation, it ensures uniform texture, strong adhesion, and a clean, professional finish—perfect for the blister samples shown in the image.

Compatible with multiple sealing materials such as composite plastic film, aluminum-foil laminate, PP, PVC, PET, PE, and PS, the machine ensures airtight sealing and attractive appearance. The stainless-steel body, touch-screen interface, and reliable components make the LD841 a practical, durable, and efficient solution for modern packaging needs.


Technical Specifications
Item Specification
Maximum Sealing Area 230 × 130 mm
Output Speed 6–10 cycles/min
Production Process Manual tray loading → film placing → auto feeding → pneumatic sealing
Temperature Range 0–300°C
Air Pressure Range 4–8 kg/cm²
Applicable Materials Plastic composite film, aluminum-foil composite film, PP, PVC, PET, PE, PS
Power 1000–2000 W
Voltage 220 V
Machine Dimensions 730 × 530 × 710 mm
Net Weight 65 kg (varies by customization)
Structure Stainless steel
Packaging Wooden crate

Machine Configuration
No. Component Brand Origin
1 Main Frame (304 Stainless Steel) — Guangzhou
2 Electrical Switch Shuangke Nanjing
3 PLC In-house Guangzhou
4 4.3” Touch Screen — Guangzhou
5 Relay Sanle Zhejiang
6 Cylinder Airtac Taiwan
7 Temperature Controller RKC China
8 Motor Taili Joint Venture
9 Solenoid Valve Airtac Taiwan

Included Accessories
Item Quantity
User Manual 1
Hex Wrench 1
Phillips Screwdriver 1
Paper Tube 1
