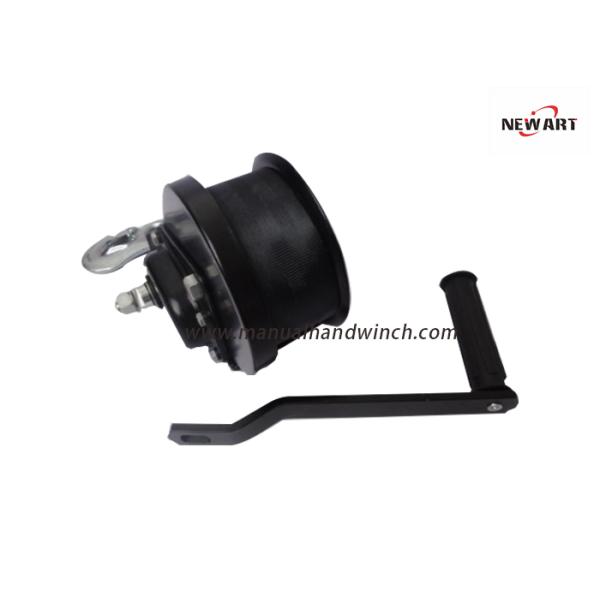

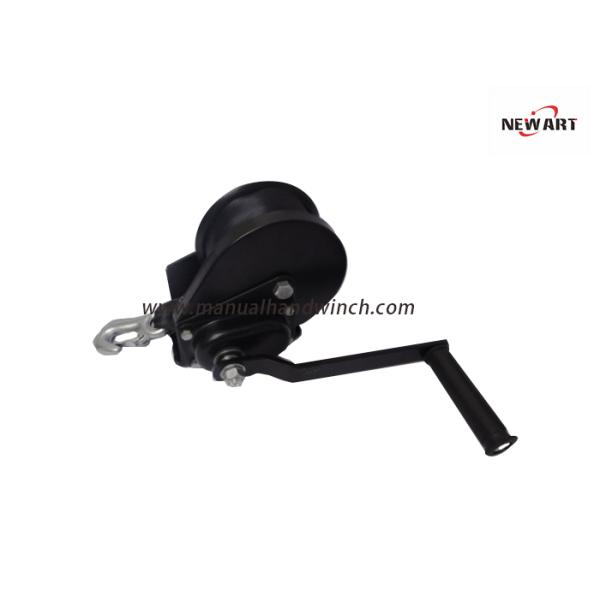

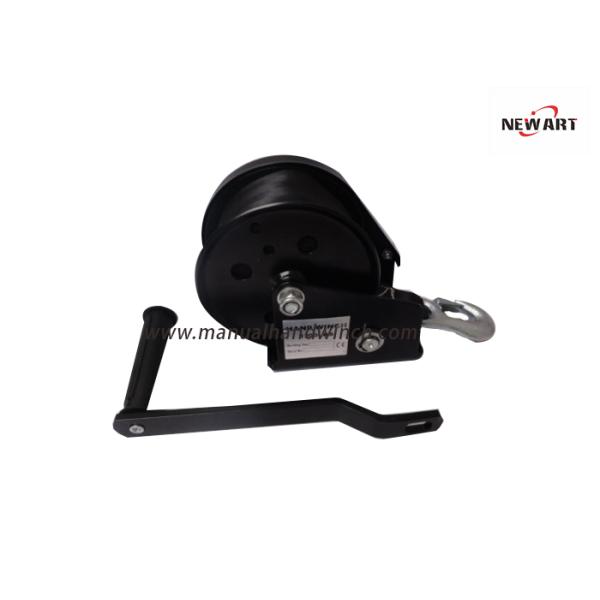

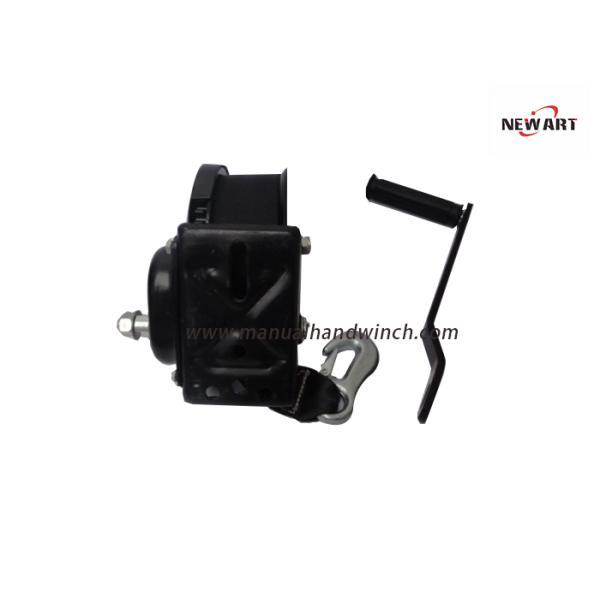

Geared Hand Crank Winch / 1200lbs Capacity Automatic Brake Winch With Strap
Geared Hand Crank Winch / 1200lbs Capacity Automatic Brake Winch With Strap
Geared Hand Crank Winch / 1200lbs Capacity Automatic Brake Winch With Strap
Geared Hand Crank Winch / 1200lbs Capacity Automatic Brake Winch With Strap
Specifications
Brand Name :
Newart
Model Number :
LDE1200
Certification :
CE TUV SGS
Place of Origin :
Ningbo,Zhejiang,China
MOQ :
300pcs
Price :
Negotiable
Payment Terms :
T/T,L/C, Western Union,, D/P
Supply Ability :
9000pcs/month
Delivery Time :
30-35 days after deposit
Packaging Details :
Exported Cartons and Pallets
Capacity :
545kg
Product Name :
Brake Hand Winch
Material :
Body / Steel A3
Gear Ratio :
4.2:1
Color :
Black or Zinc Plated
Type :
winch,Standard
Description

Geared Hand Winch with Brake 1200lbs Capacity , Automatic Brake Winch With Strap

Introduction:

Self locking brake hand winch is a high quality multi-purpose winch used for a wide variety of lifting and hoisting applications. The automatic brake ensures the load remains suspended when the crank is released and avoids unchecked descent of the load;

  • Hardened steel gear with a heavy plate chassis.
  • Includes an automatic brake system which stops the winch when more than 25kg of force is applied.
  • Features a fully closed gearbox.
  • Suitable for general and recovery operations.
  • Supplied with em
  • Official Newart Product

Specifications:

Model LDE1200C LDE1800C LDE2600C
Safe working load (Lbs) 1200 1800 2600
Test load (KN) 8 12.13 17.64
Drum-hub Diameter (mm) ￠48.5 ￠60 ￠80
Gear ratio 4.2:1 10:1 5:1
Hand length (mm) 210 320 320
N.W/G.W (kg) 3.7/4.5 8.1/9.0 10.4/11.5
Package size (cm) 16X16X22 35X20X23 35X24X24


Geared Hand Crank Winch / 1200lbs Capacity Automatic Brake Winch With StrapGeared Hand Crank Winch / 1200lbs Capacity Automatic Brake Winch With StrapGeared Hand Crank Winch / 1200lbs Capacity Automatic Brake Winch With StrapGeared Hand Crank Winch / 1200lbs Capacity Automatic Brake Winch With Strap
