50 - 300KN Capacity Wire Stringing Blocks For Conductor High Speed Turning Block
50 - 300KN Capacity Wire Stringing Blocks For Conductor High Speed Turning Block
50 - 300KN Capacity Wire Stringing Blocks For Conductor High Speed Turning Block
50 - 300KN Capacity Wire Stringing Blocks For Conductor High Speed Turning Block
Specifications
Brand Name :
Newart
Model Number :
THZ1
Certification :
ISO,CE
Place of Origin :
Ningbo,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
5-7 days after deposit
Packaging Details :
Exported Box and carton
Type :
Belt Type, High Speed
Material :
Aluminum,Steel
Name :
Turning String Block
Capacity :
50-300KN
Application :
Turning and traction for steel wire rope
Weight :
22-200kg
Sheave Material :
Steel
Description

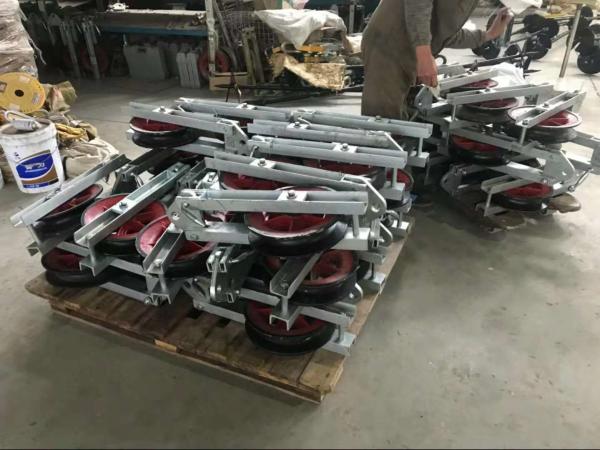

50 - 300KN Capacity Wire Stringing Blocks For Conductor High Speed Turning Block

High Speed Turning Block

Apply to steel wire rope traction and turning. It can pass through steel wire rope connector;

The maximum allowable speed of hauling rope is 80m/min.

Technical Data

Item number Model

Rated Load

(KN)

 Sheave Diameter(mm)

Sheave

width

(mm)

Weight

(kg)

 Remark
12141 THZ1-5 50 Φ308 75 22 Steel Sheave
12141A THZ1-8 80 Φ308 110 30
12142 THZ1-16 160 Φ600 110 115
12143 THZ1-30 300 Φ916 110/125 200
12141B THZ2-10 100 Φ308 110 52
12142A THZ2-16 160 Φ660 110 68
