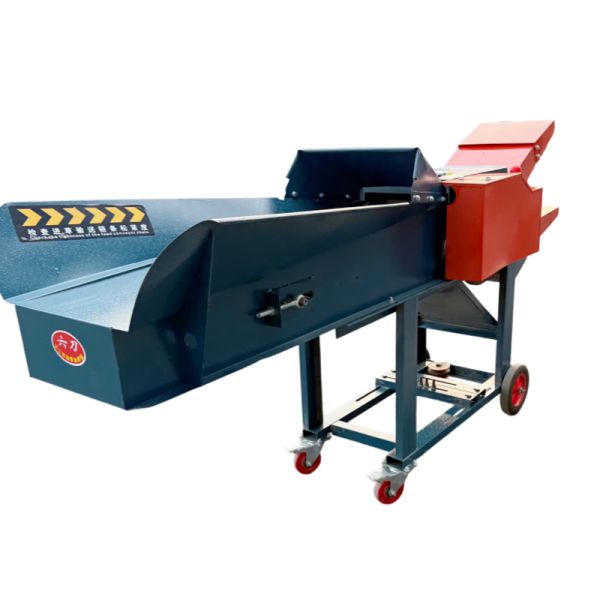

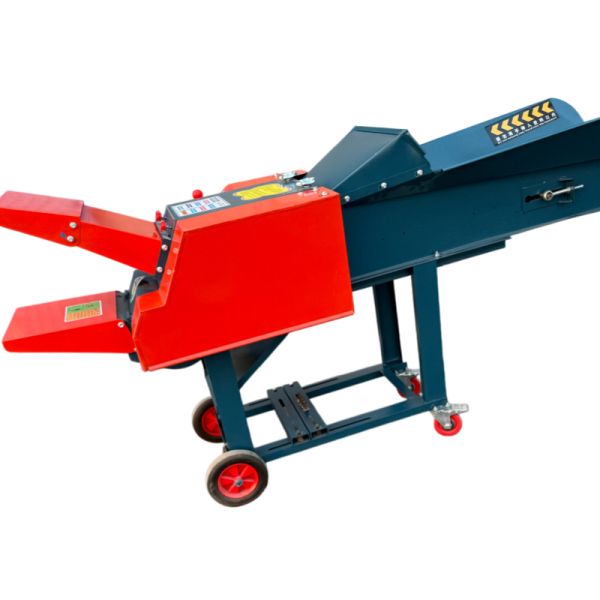

Reinforced Steel Chaff Cutter With Grinder Stalk Chopper High Output Animal Feed Machinery
Reinforced Steel Chaff Cutter With Grinder Stalk Chopper High Output Animal Feed Machinery
Reinforced Steel Chaff Cutter With Grinder Stalk Chopper High Output Animal Feed Machinery
Reinforced Steel Chaff Cutter With Grinder Stalk Chopper High Output Animal Feed Machinery
Reinforced Steel Chaff Cutter With Grinder Stalk Chopper High Output Animal Feed Machinery
Reinforced Steel Chaff Cutter With Grinder Stalk Chopper High Output Animal Feed Machinery
Reinforced Steel Chaff Cutter With Grinder Stalk Chopper High Output Animal Feed Machinery
Reinforced Steel Chaff Cutter With Grinder Stalk Chopper High Output Animal Feed Machinery
Specifications
Assignable motor :
Electric motor/gasoline engine
Payment Terms :
L/C,D/A,D/P,T/T,
use :
Aniaml Feed Machine
MOQ :
20
Certification :
ISO9001
weight (kg) :
70-175
Packaging Details :
wooden box
Function :
Chaff Slicer
Place of Origin :
CHINA
Model Number :
CY-ZJ-1T-8T
Production capacity :
1-9 ton/hour
Price :
228-889
Color :
Customizable
warranty :
2 Year
Product Name :
Grass Cutting and Silk Kneading Machine
Brand Name :
CHENGYI
Supply Ability :
10000 units/month
Delivery Time :
10-20 work days
Description
Reinforced Steel Chaff Cutter With Grinder Stalk Chopper High Output Animal Feed Machinery
Product Overview

Engineered with heavy-duty reinforced steel, this robust chaff cutter with grinder is built to handle demanding everyday farm operations. It provides an efficient solution for processing raw crop biomass into nutritious livestock fodder.

Functioning as a powerful stalk chopper and crop shredder, it easily breaks down tough agricultural residues, including dry corn stalks, wheat straw, sugarcane leaves, and fresh pasture grass.

As a multi-purpose grain pulverizer and fodder mill, the system fine-grinds corn kernels, barley, and soybeans. It significantly minimizes feed waste, cuts daily labor costs, and improves nutrient absorption for your herd.

Key Features
  • Reinforced Steel Frame: Built to absorb shock and extend chaff cutter with grinder operational life.
  • High Output Capacity: Quickly processes large volumes of forage and grains for daily feeding.
  • Dual-Chute Convenience: Separate feeding ports allow simultaneous forage cutting and grain grinding.
  • Maximized Feed Digestibility: Produces soft, uniform feed that animals consume completely.
  • Reliable Chaff Cutter With Grinder Motor: Delivers smooth, non-stop performance under daily workloads.
Reinforced Steel Chaff Cutter With Grinder Stalk Chopper High Output Animal Feed Machinery Reinforced Steel Chaff Cutter With Grinder Stalk Chopper High Output Animal Feed Machinery Reinforced Steel Chaff Cutter With Grinder Stalk Chopper High Output Animal Feed Machinery
Technical Specifications
Model CY-ZJ-1T CY-ZJ-2T CY-ZJ-3T CY-ZJ-4T CY-ZJ-5T CY-ZJ-7T
Motor Power 3KW 3.5KW 4KW 4.5KW 5KW 7.5KW/11KW
Voltage 220V/380V 220V/380V 220V/380V 220V/380V 220V/380V 380V
Machine Dimensions (mm) 1420×460×1500 1550×550×1500 1410×550×1500 1780×535×1580 1950×640×1600 2470×760×1920
Chain Width (mm) 180 180 225 225 275 385
Wheel Type Four fixed wheels Four fixed wheels Four fixed wheels Four fixed wheels Two fixed, two braking wheels Two fixed, two braking wheels
Number of Cutting Blades 6 6 6 6 6 6
Output 1 ton 2 ton 3 ton 4 ton 5 ton 7 ton
Machine Weight (excluding motor) 75kg 77kg 80kg 85kg 105kg 175kg
Application Scenario

Ideal for medium to large cattle ranches, commercial dairy farms, and agricultural feed cooperatives.

Reinforced Steel Chaff Cutter With Grinder Stalk Chopper High Output Animal Feed Machinery

Frequently Asked Questions

Q1: Can this chaff cutter with grinder process high-moisture green grass?
A1: Yes, the anti-clogging discharge chamber processes both wet green pasture and dry straw smoothly.

Q2: Is it easy to adjust fodder length on this chaff cutter with grinder?
A2: Yes, shifting the internal gear adjustment changes the cutting length within minutes.

Q3: What routine checks are needed for the chaff cutter with grinder?
A3: Check blade tightness daily, clean out leftover fibers, and lubricate bearings weekly.

Q4: Does your company provide original replacement parts for this machinery?
A4: Yes, our company stocks full spare part packages with fast global dispatch options.

Q5: Can your company configure the motor voltage for international power grids?
A5: Absolutely, our company configures motors to match local voltage and phase requirements.
